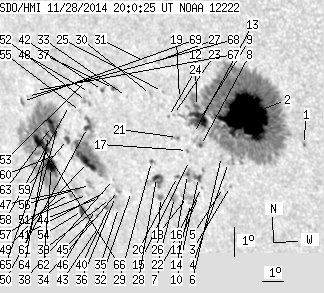

SDO HMI 2014-11-28 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 215.44 | 1025.64 | 162.39 | 783.08 | -19.45 | 83.12 | -45.77 | 117.28 | 0.7601 | 347.0 | 33.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.83 | -19.74 | 88.95 | -39.94 | 120.27 | 0.7020 | 756.0 | 670.9 | |
| 126.87 | 599.81 | 90.31 | 428.54 | -18.85 | 86.85 | -42.04 | 118.05 | 0.7205 | 1204.0 | 269.8 | |
| 0.00 | 1.28 | 0.00 | 0.95 | -21.12 | 85.39 | -43.50 | 120.25 | 0.7457 | 631.0 | 531.7 | |
| 0.00 | 1.37 | 0.00 | 1.00 | -20.35 | 85.58 | -43.31 | 119.38 | 0.7404 | -512.0 | -422.1 | |
| 0.00 | 0.51 | 0.00 | 0.38 | -21.16 | 85.07 | -43.82 | 120.14 | 0.7491 | 297.0 | 220.0 | |
| 0.00 | 2.05 | 0.00 | 1.51 | -20.17 | 85.34 | -43.55 | 119.03 | 0.7420 | -357.0 | -334.0 | |
| 0.00 | 1.03 | 0.00 | 0.78 | -21.17 | 84.08 | -44.81 | 119.71 | 0.7589 | -505.0 | -474.8 | |
| 1.03 | 7.95 | 0.76 | 5.92 | -19.83 | 84.54 | -44.35 | 118.24 | 0.7488 | -898.8 | -310.2 | |
| 17.70 | -2.00 | 13.05 | -2.00 | -19.01 | 84.78 | -44.11 | 117.31 | 0.7430 | 586.3 | 999999 | |
| 2.65 | 14.96 | 2.00 | 11.34 | -20.85 | 84.07 | -44.82 | 119.31 | 0.7577 | -368.8 | 198.9 | |
| 0.00 | 0.94 | 0.00 | 0.72 | -21.43 | 83.85 | -45.05 | 119.92 | 0.7624 | 192.0 | 193.3 | |
| 2.22 | -2.00 | 1.63 | -2.00 | -18.60 | 84.79 | -44.11 | 116.79 | 0.7413 | -254.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -19.45 | 84.36 | -44.53 | 117.69 | 0.7491 | 192.0 | 189.1 | |
| 0.00 | 1.54 | 0.00 | 1.18 | -21.70 | 83.38 | -45.52 | 120.03 | 0.7680 | -579.0 | -465.6 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -20.32 | 83.87 | -45.02 | 118.56 | 0.7576 | -578.0 | -473.3 | |
| 1.11 | -10.00 | 0.85 | -10.00 | -20.77 | 83.61 | -45.28 | 119.00 | 0.7620 | 756.1 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.90 | -20.00 | 83.90 | -44.99 | 118.17 | 0.7560 | 404.0 | 289.8 | |
| 0.00 | 7.35 | 0.00 | 5.66 | -21.47 | 83.33 | -45.56 | 119.74 | 0.7676 | -405.0 | -401.3 | |
| 0.00 | 1.28 | 0.00 | 0.95 | -18.36 | 84.12 | -44.77 | 116.20 | 0.7473 | -571.0 | -460.4 | |
| 0.68 | 2.05 | 0.53 | 1.58 | -20.84 | 83.13 | -45.76 | 118.88 | 0.7670 | 549.2 | 431.6 | |
| 0.34 | 3.16 | 0.26 | 2.39 | -19.59 | 83.60 | -45.29 | 117.54 | 0.7574 | 426.2 | 348.5 | |
| 0.00 | 4.10 | 0.00 | 3.20 | -21.51 | 82.72 | -46.17 | 119.53 | 0.7737 | -472.0 | -480.5 | |
| 0.00 | 1.03 | 0.00 | 0.77 | -18.86 | 83.68 | -45.21 | 116.66 | 0.7538 | 450.0 | 382.2 | |
| 0.00 | 1.03 | 0.00 | 0.77 | -18.93 | 83.44 | -45.46 | 116.64 | 0.7566 | 416.0 | 248.1 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -18.15 | 83.44 | -45.45 | 115.66 | 0.7537 | -640.0 | -512.3 | |
| 1.11 | 2.56 | 0.88 | 2.02 | -21.52 | 82.06 | -46.83 | 119.26 | 0.7800 | 463.6 | 370.8 | |
| 0.00 | 2.39 | 0.00 | 1.78 | -17.18 | 83.58 | -45.31 | 114.48 | 0.7487 | 516.0 | 516.2 | |
| 2.65 | 13.17 | 2.08 | 10.33 | -20.88 | 82.15 | -46.75 | 118.52 | 0.7768 | 654.9 | 364.0 | |
| 0.94 | 2.82 | 0.73 | 2.20 | -20.38 | 82.12 | -46.77 | 117.89 | 0.7751 | 406.4 | 262.7 | |
| 0.00 | 1.97 | 0.00 | 1.49 | -18.25 | 82.87 | -46.03 | 115.56 | 0.7599 | -581.0 | -361.8 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -17.22 | 82.94 | -45.95 | 114.29 | 0.7555 | 498.0 | 376.2 | |
| 0.00 | 1.20 | 0.00 | 0.97 | -21.35 | 80.77 | -48.12 | 118.53 | 0.7916 | 218.0 | 231.5 | |
| 0.00 | 0.51 | 0.00 | 0.40 | -18.33 | 81.74 | -47.15 | 115.23 | 0.7716 | 243.0 | 147.5 | |
| 0.00 | 3.08 | 0.00 | 2.51 | -21.33 | 80.15 | -48.74 | 118.27 | 0.7973 | 39.0 | 6.0 | |
| 0.00 | 2.82 | 0.00 | 2.33 | -21.88 | 79.90 | -48.99 | 118.82 | 0.8015 | -380.0 | -385.5 | |
| 0.00 | 1.20 | 0.00 | 0.98 | -21.53 | 79.92 | -48.97 | 118.41 | 0.8002 | 126.0 | 128.6 | |
| 1.03 | 1.97 | 0.80 | 1.54 | -18.09 | 81.23 | -47.66 | 114.74 | 0.7760 | -839.4 | -759.9 | |
| 0.00 | 0.85 | 0.00 | 0.70 | -20.98 | 80.07 | -48.82 | 117.82 | 0.7969 | -727.0 | -687.6 | |
| 0.00 | 1.37 | 0.00 | 1.13 | -21.60 | 79.64 | -49.25 | 118.39 | 0.8029 | 96.0 | -90.4 | |
| 0.00 | 4.02 | 0.00 | 3.34 | -21.86 | 79.47 | -49.42 | 118.63 | 0.8054 | -795.0 | -619.7 | |
| 0.00 | 1.03 | 0.00 | 0.85 | -21.34 | 79.61 | -49.28 | 118.08 | 0.8023 | -289.0 | -275.6 | |
| 0.60 | 2.39 | 0.47 | 1.89 | -18.16 | 80.69 | -48.20 | 114.63 | 0.7816 | -707.9 | -609.2 | |
| 0.00 | 0.94 | 0.00 | 0.80 | -22.48 | 78.67 | -50.22 | 119.06 | 0.8147 | -460.0 | -402.0 | |
| 0.00 | 1.54 | 0.00 | 1.29 | -21.57 | 79.11 | -49.78 | 118.16 | 0.8077 | -311.0 | -306.2 | |
| 0.00 | 1.28 | 0.00 | 1.09 | -22.16 | 78.73 | -50.16 | 118.71 | 0.8131 | -607.0 | -564.4 | |
| 0.00 | 0.94 | 0.00 | 0.79 | -21.96 | 78.72 | -50.17 | 118.48 | 0.8125 | -685.0 | -616.1 | |
| 0.00 | 4.10 | 0.00 | 3.44 | -21.19 | 78.84 | -50.05 | 117.62 | 0.8089 | -396.0 | -458.3 | |
| 0.00 | 1.28 | 0.00 | 1.03 | -18.23 | 80.05 | -48.84 | 114.50 | 0.7881 | -743.0 | -572.9 | |
| 10.26 | 77.20 | 8.52 | 63.64 | -20.46 | 79.03 | -49.86 | 116.82 | 0.8048 | -831.8 | -692.9 | |
| 2.74 | -49.00 | 2.23 | -49.00 | -19.34 | 79.51 | -49.38 | 115.65 | 0.7968 | -958.4 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.16 | -21.49 | 78.56 | -50.34 | 117.86 | 0.8125 | -547.0 | -424.8 | |
| 0.00 | 5.04 | 0.00 | 4.07 | -18.52 | 79.80 | -49.09 | 114.76 | 0.7915 | -739.0 | -628.1 | |
| 0.00 | 1.11 | 0.00 | 0.89 | -17.86 | 80.05 | -48.84 | 114.04 | 0.7870 | -609.0 | -552.5 | |
| 2.99 | 8.89 | 2.57 | 7.62 | -22.01 | 78.05 | -50.84 | 118.29 | 0.8186 | -620.0 | -411.4 | |
| 0.00 | 1.45 | 0.00 | 1.19 | -18.84 | 79.38 | -49.51 | 115.00 | 0.7965 | -474.0 | -500.1 | |
| 1.03 | 8.04 | 0.88 | 6.86 | -21.33 | 78.03 | -50.87 | 117.50 | 0.8167 | -712.4 | -516.8 | |
| 0.00 | 3.42 | 0.00 | 2.95 | -21.47 | 77.65 | -51.24 | 117.52 | 0.8205 | -352.0 | -294.3 | |
| 0.00 | 1.11 | 0.00 | 0.91 | -18.66 | 78.92 | -49.97 | 114.63 | 0.8004 | -466.0 | -372.6 | |
| 2.31 | 6.07 | 1.93 | 5.08 | -19.74 | 78.36 | -50.53 | 115.73 | 0.8088 | -674.3 | -551.8 | |
| 0.00 | 1.28 | 0.00 | 1.09 | -20.19 | 77.76 | -51.13 | 116.06 | 0.8157 | -599.0 | -543.3 | |
| 1.11 | 195.69 | 0.93 | 169.07 | -19.33 | 78.04 | -50.85 | 115.14 | 0.8106 | -816.4 | -80.4 | |
| 9.92 | -61.00 | 8.59 | -61.00 | -20.58 | 77.17 | -51.73 | 116.33 | 0.8222 | -660.7 | 999999 | |
| 11.11 | -61.00 | 9.41 | -61.00 | -19.34 | 77.74 | -51.15 | 115.05 | 0.8134 | -839.4 | 999999 | |
| 2.39 | -61.00 | 2.04 | -61.00 | -19.63 | 77.46 | -51.43 | 115.30 | 0.8168 | -601.2 | 999999 | |
| 3.76 | -61.00 | 3.24 | -61.00 | -20.04 | 77.17 | -51.73 | 115.69 | 0.8206 | -619.6 | 999999 | |
| 8.89 | -61.00 | 7.70 | -61.00 | -19.80 | 76.87 | -52.02 | 115.31 | 0.8226 | -627.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.87 | -18.21 | 77.42 | -51.47 | 113.61 | 0.8133 | 263.0 | 197.8 | |
| 0.00 | 0.85 | 0.00 | 0.73 | -18.41 | 76.93 | -51.96 | 113.69 | 0.8183 | 197.0 | 169.7 | |
| 0.00 | 2.74 | 0.00 | 2.37 | -18.57 | 76.61 | -52.29 | 113.79 | 0.8217 | 282.0 | 381.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
