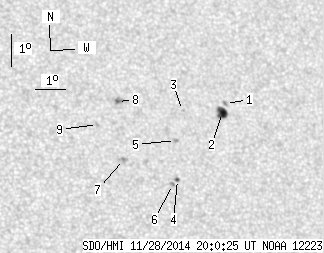

SDO HMI 2014-11-28 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.89 | 27.69 | 5.05 | 15.56 | 17.26 | 152.34 | 23.45 | 306.28 | 0.4731 | 353.7 | -21.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.17 | 18.00 | 154.09 | 25.20 | 305.70 | 0.5007 | 732.0 | 451.8 | |
| 7.35 | 10.00 | 4.19 | 5.70 | 17.72 | 153.95 | 25.06 | 305.37 | 0.4967 | 1010.0 | 620.3 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 17.80 | 152.59 | 23.70 | 306.90 | 0.4806 | 466.0 | 453.3 | |
| 0.77 | 2.05 | 0.43 | 1.14 | 15.68 | 152.14 | 23.25 | 303.52 | 0.4578 | 717.1 | 572.8 | |
| 0.00 | 1.80 | 0.00 | 1.01 | 16.88 | 152.23 | 23.34 | 305.65 | 0.4685 | 704.0 | 535.4 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 15.53 | 151.96 | 23.07 | 303.43 | 0.4542 | 929.0 | 808.4 | |
| 0.00 | 3.59 | 0.00 | 1.98 | 16.31 | 150.42 | 21.53 | 306.65 | 0.4409 | -1035.0 | -804.0 | |
| 0.77 | 3.85 | 0.43 | 2.14 | 18.10 | 150.44 | 21.55 | 309.91 | 0.4571 | -1054.7 | -780.4 | |
| 0.00 | 1.88 | 0.00 | 1.04 | 17.39 | 149.69 | 20.80 | 309.59 | 0.4415 | -929.0 | -631.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
