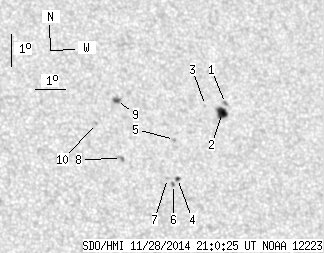

SDO HMI 2014-11-28 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.18 | 25.91 | 5.78 | 14.63 | 17.20 | 152.50 | 24.16 | 305.40 | 0.4815 | 429.8 | 57.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.08 | 17.96 | 154.16 | 25.82 | 305.03 | 0.5081 | 683.0 | 513.9 | |
| 7.18 | 9.75 | 4.11 | 5.58 | 17.68 | 154.01 | 25.67 | 304.70 | 0.5041 | 982.8 | 632.7 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 17.90 | 153.46 | 25.12 | 305.62 | 0.4990 | 605.0 | 400.9 | |
| 1.03 | 2.22 | 0.57 | 1.24 | 15.67 | 152.20 | 23.86 | 302.88 | 0.4657 | 587.4 | 478.9 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 16.87 | 152.25 | 23.92 | 305.02 | 0.4757 | 819.0 | 609.9 | |
| 0.43 | 1.45 | 0.24 | 0.81 | 15.49 | 152.04 | 23.70 | 302.69 | 0.4623 | 729.2 | 678.2 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 15.68 | 151.86 | 23.52 | 303.23 | 0.4613 | 669.0 | 542.1 | |
| 0.00 | 2.74 | 0.00 | 1.51 | 16.30 | 150.40 | 22.07 | 306.01 | 0.4476 | -913.0 | -805.2 | |
| 1.54 | 3.93 | 0.86 | 2.20 | 18.09 | 150.46 | 22.13 | 309.20 | 0.4640 | -938.2 | -729.9 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 17.38 | 149.70 | 21.37 | 308.86 | 0.4484 | -841.0 | -657.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
