SDO HMI 2014-11-28 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.94 | 393.38 | 35.94 | 211.49 | 16.32 | 110.50 | -17.29 | 47.38 | 0.3890 | -1127.2 | -400.0 | |
|
previous
or next observation for the same group /

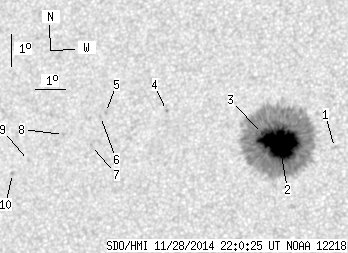

back to the solar disc SDO HMI 2014-11-28 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.91 | 16.20 | 112.41 | -15.37 | 44.43 | 0.3653 | 825.0 | 493.0 | |
| 65.83 | 383.97 | 35.34 | 206.26 | 16.31 | 110.64 | -17.15 | 47.22 | 0.3872 | -1570.3 | -431.9 | |
| 1.11 | -2.00 | 0.60 | -2.00 | 16.62 | 110.06 | -17.72 | 47.53 | 0.3972 | -1023.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 17.31 | 106.84 | -20.95 | 50.74 | 0.4427 | 911.0 | 701.9 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 17.23 | 104.81 | -22.97 | 53.29 | 0.4670 | 812.0 | 674.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 17.11 | 104.66 | -23.13 | 53.68 | 0.4678 | 769.0 | 637.2 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 16.22 | 104.47 | -23.31 | 55.52 | 0.4629 | 791.0 | 654.0 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 16.55 | 103.48 | -24.30 | 55.94 | 0.4781 | 852.0 | 731.9 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 15.74 | 102.40 | -25.38 | 58.46 | 0.4861 | 795.0 | 643.4 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 15.34 | 101.91 | -25.87 | 59.64 | 0.4898 | 824.0 | 661.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
