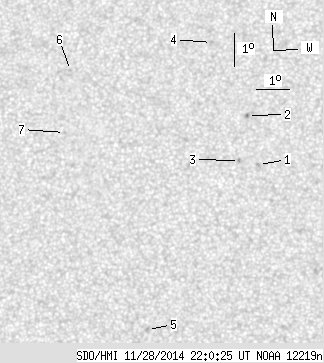

SDO HMI 2014-11-28 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.00 | 0.00 | 5.13 | 14.23 | 120.48 | -7.30 | 29.20 | 0.2618 | -582.3 | -458.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.79 | 14.15 | 122.80 | -4.99 | 20.60 | 0.2408 | -935.0 | -751.9 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 15.64 | 122.43 | -5.36 | 19.82 | 0.2666 | 1000.0 | 920.4 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 14.27 | 122.21 | -5.57 | 22.57 | 0.2464 | -985.0 | -805.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 17.88 | 121.24 | -6.55 | 20.69 | 0.3086 | -893.0 | -699.7 | |
| 0.00 | 2.14 | 0.00 | 1.08 | 9.18 | 119.53 | -8.25 | 45.48 | 0.1996 | -823.0 | -650.1 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 17.01 | 116.86 | -10.93 | 33.58 | 0.3292 | -739.0 | -523.2 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 15.11 | 116.77 | -11.01 | 37.42 | 0.3048 | -701.0 | -570.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
