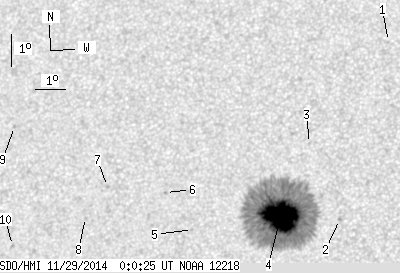

SDO HMI 2014-11-29 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.47 | 414.22 | 36.02 | 221.43 | 16.35 | 110.53 | -16.16 | 45.43 | 0.3763 | -1124.7 | -390.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.37 | 21.79 | 113.64 | -13.04 | 30.73 | 0.4120 | -679.0 | -466.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 16.25 | 112.52 | -14.17 | 42.02 | 0.3525 | 900.0 | 681.1 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 18.59 | 111.36 | -15.32 | 39.85 | 0.3925 | 623.0 | 493.1 | |
| 67.47 | 404.38 | 36.02 | 216.02 | 16.33 | 110.63 | -16.06 | 45.33 | 0.3748 | -1558.8 | -417.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 15.92 | 107.82 | -18.86 | 50.56 | 0.4042 | 755.0 | 620.5 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 17.05 | 106.82 | -19.86 | 49.76 | 0.4273 | 869.0 | 697.5 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 17.23 | 104.88 | -21.80 | 51.92 | 0.4526 | 831.0 | 572.0 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 16.27 | 104.26 | -22.42 | 54.41 | 0.4521 | 738.0 | 561.8 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 19.06 | 101.46 | -25.22 | 52.50 | 0.5097 | 669.0 | 544.8 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 15.40 | 101.92 | -24.76 | 58.49 | 0.4757 | 806.0 | 610.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
