SDO HMI 2014-11-29 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.44 | 36.44 | 6.02 | 20.76 | 16.98 | 152.31 | 25.62 | 303.59 | 0.4984 | 136.9 | 48.5 | |
|
previous
or next observation for the same group /

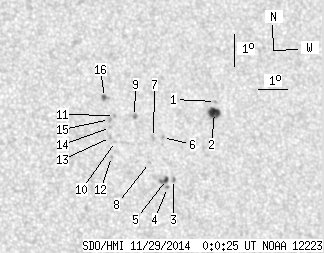

back to the solar disc SDO HMI 2014-11-29 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.50 | 17.93 | 154.24 | 27.56 | 303.42 | 0.5295 | 710.0 | 561.0 | |
| 7.70 | 11.12 | 4.47 | 6.46 | 17.59 | 154.15 | 27.47 | 302.93 | 0.5260 | 970.8 | 538.6 | |
| 0.00 | 1.88 | 0.00 | 1.07 | 15.55 | 152.42 | 25.74 | 300.88 | 0.4895 | 693.0 | 565.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 15.30 | 152.19 | 25.51 | 300.65 | 0.4847 | 849.0 | 706.2 | |
| 1.54 | 4.53 | 0.87 | 2.56 | 15.55 | 152.19 | 25.50 | 301.10 | 0.4864 | 845.9 | 727.3 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 16.84 | 152.23 | 25.55 | 303.37 | 0.4963 | 809.0 | 653.6 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 16.84 | 151.92 | 25.24 | 303.67 | 0.4924 | 772.0 | 613.7 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 16.07 | 151.68 | 25.00 | 302.53 | 0.4836 | -602.0 | -454.7 | |
| 0.00 | 2.31 | 0.00 | 1.31 | 17.49 | 151.37 | 24.69 | 305.37 | 0.4905 | -731.0 | -464.2 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 16.73 | 150.62 | 23.93 | 304.78 | 0.4750 | -620.0 | -338.8 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 17.53 | 150.69 | 24.01 | 306.13 | 0.4824 | -749.0 | -665.2 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 16.27 | 150.42 | 23.74 | 304.15 | 0.4689 | -759.0 | -658.3 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 16.85 | 150.46 | 23.78 | 305.17 | 0.4741 | -880.0 | -649.9 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 17.16 | 150.51 | 23.82 | 305.68 | 0.4771 | -547.0 | -549.4 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 17.40 | 150.51 | 23.82 | 306.11 | 0.4791 | -823.0 | -702.2 | |
| 1.20 | 3.51 | 0.68 | 1.98 | 18.09 | 150.43 | 23.75 | 307.39 | 0.4838 | -872.1 | -640.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
