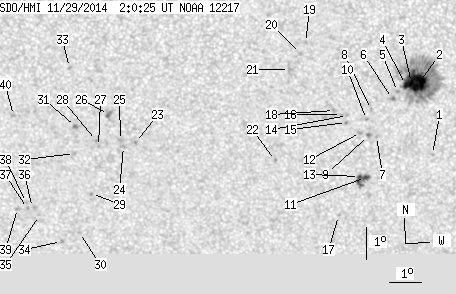

SDO HMI 2014-11-29 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.98 | 200.82 | 18.31 | 105.56 | -18.07 | 124.26 | -1.33 | 176.85 | 0.3360 | 378.4 | 302.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.45 | -19.75 | 126.56 | 0.98 | 182.59 | 0.3587 | 731.0 | 622.7 | |
| 19.16 | 140.35 | 10.01 | 73.32 | -17.45 | 126.15 | 0.57 | 181.70 | 0.3207 | 1301.9 | 437.3 | |
| 9.92 | -2.00 | 5.19 | -2.00 | -17.48 | 125.90 | 0.32 | 180.96 | 0.3211 | 1227.4 | 999999 | |
| 3.51 | -2.00 | 1.83 | -2.00 | -17.55 | 125.72 | 0.13 | 180.40 | 0.3221 | 997.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -17.76 | 125.47 | -0.11 | 179.66 | 0.3257 | 839.0 | 729.1 | |
| 0.00 | 2.31 | 0.00 | 1.21 | -17.98 | 125.31 | -0.27 | 179.22 | 0.3294 | 968.0 | 746.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.18 | 124.81 | -0.77 | 177.90 | 0.3492 | 742.0 | 601.7 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -18.33 | 124.66 | -0.93 | 177.37 | 0.3354 | 816.0 | 597.9 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -19.15 | 124.56 | -1.02 | 177.21 | 0.3489 | 928.0 | 758.8 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.64 | 124.50 | -1.08 | 176.97 | 0.3407 | 948.0 | 831.9 | |
| 1.62 | 10.69 | 0.87 | 5.70 | -20.48 | 124.45 | -1.13 | 177.13 | 0.3707 | 1106.9 | 867.1 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -19.05 | 124.31 | -1.27 | 176.52 | 0.3476 | 703.0 | 642.6 | |
| 0.77 | -11.00 | 0.41 | -11.00 | -20.44 | 124.26 | -1.32 | 176.65 | 0.3704 | 1041.7 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -18.52 | 123.91 | -1.68 | 175.29 | 0.3392 | 920.0 | 687.7 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.74 | 123.87 | -1.71 | 175.26 | 0.3429 | 820.0 | 721.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -18.48 | 123.72 | -1.86 | 174.76 | 0.3390 | 485.0 | 422.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -21.69 | 123.58 | -2.00 | 175.23 | 0.3913 | -863.0 | -624.8 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -18.36 | 123.50 | -2.08 | 174.12 | 0.3373 | 275.0 | 293.1 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -16.24 | 122.64 | -2.95 | 170.63 | 0.3043 | 911.0 | 752.8 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -16.58 | 122.48 | -3.11 | 170.32 | 0.3104 | 880.0 | 721.4 | |
| 0.00 | 2.22 | 0.00 | 1.16 | -17.08 | 122.13 | -3.46 | 169.56 | 0.3195 | 784.0 | 703.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.94 | 121.62 | -3.96 | 169.77 | 0.3672 | 897.0 | 739.0 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -19.37 | 117.22 | -8.36 | 158.63 | 0.3780 | -932.0 | -711.6 | |
| 0.00 | 2.05 | 0.00 | 1.10 | -19.50 | 116.84 | -8.75 | 157.87 | 0.3822 | -886.0 | -722.5 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -19.31 | 116.75 | -8.83 | 157.48 | 0.3799 | -988.0 | -751.0 | |
| 0.00 | 2.74 | 0.00 | 1.46 | -18.49 | 116.42 | -9.17 | 155.79 | 0.3700 | -988.0 | -836.3 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -19.50 | 116.04 | -9.54 | 156.09 | 0.3872 | -674.0 | -496.4 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.31 | 115.99 | -9.59 | 155.76 | 0.3848 | -956.0 | -790.6 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -20.99 | 115.72 | -9.86 | 157.00 | 0.4110 | -773.0 | -681.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -22.25 | 115.24 | -10.34 | 157.29 | 0.4321 | -746.0 | -584.9 | |
| 0.00 | 2.39 | 0.00 | 1.28 | -18.87 | 115.35 | -10.23 | 153.83 | 0.3829 | -1016.0 | -852.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -19.72 | 115.26 | -10.32 | 154.66 | 0.3957 | -842.0 | -565.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -17.02 | 115.27 | -10.31 | 151.23 | 0.3571 | -842.0 | -711.9 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -22.54 | 114.63 | -10.95 | 156.40 | 0.4400 | -755.0 | -675.1 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -21.70 | 113.99 | -11.60 | 154.30 | 0.4325 | -684.0 | -598.6 | |
| 0.00 | 0.51 | 0.00 | 0.28 | -21.45 | 113.78 | -11.80 | 153.63 | 0.4304 | -574.0 | -646.2 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -21.48 | 113.62 | -11.97 | 153.35 | 0.4320 | -939.0 | -731.2 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -21.29 | 113.60 | -11.98 | 153.10 | 0.4295 | -694.0 | -455.1 | |
| 0.00 | 2.22 | 0.00 | 1.22 | -21.48 | 113.29 | -12.29 | 152.74 | 0.4343 | -778.0 | -562.4 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -18.53 | 113.40 | -12.18 | 149.26 | 0.3931 | -825.0 | -645.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
