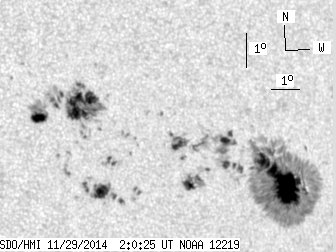

SDO HMI 2014-11-29 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 187.66 | 733.17 | 113.71 | 447.31 | 4.07 | 161.05 | 35.47 | 275.53 | 0.5830 | -94.0 | -92.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.94 | 390.59 | 0.60 | 245.56 | 3.10 | 164.41 | 38.82 | 273.50 | 0.6295 | -251.3 | -337.1 | |
| 0.00 | 1.37 | 0.00 | 0.87 | 4.43 | 164.44 | 38.86 | 275.62 | 0.6309 | -338.0 | -366.9 | |
| 1.37 | -1.00 | 0.87 | -1.00 | 3.22 | 164.30 | 38.72 | 273.70 | 0.6281 | -282.2 | 999999 | |
| 3.25 | -1.00 | 2.06 | -1.00 | 3.45 | 164.12 | 38.54 | 274.09 | 0.6258 | -607.0 | 999999 | |
| 59.27 | -1.00 | 37.30 | -1.00 | 3.25 | 163.66 | 38.07 | 273.80 | 0.6193 | -1148.6 | 999999 | |
| 9.66 | -1.00 | 6.04 | -1.00 | 3.79 | 163.19 | 37.61 | 274.71 | 0.6133 | -1104.8 | 999999 | |
| 3.16 | -1.00 | 1.98 | -1.00 | 4.36 | 163.11 | 37.53 | 275.64 | 0.6127 | -614.7 | 999999 | |
| 2.74 | -1.00 | 1.71 | -1.00 | 3.97 | 162.98 | 37.40 | 275.03 | 0.6105 | -1044.5 | 999999 | |
| 9.75 | -1.00 | 6.07 | -1.00 | 4.09 | 162.80 | 37.22 | 275.24 | 0.6081 | -1036.4 | 999999 | |
| 0.00 | 7.44 | 0.00 | 4.64 | 4.72 | 162.80 | 37.22 | 276.27 | 0.6087 | -53.0 | -122.4 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 5.14 | 162.45 | 36.87 | 277.01 | 0.6044 | -635.0 | -534.2 | |
| 0.00 | 0.68 | 0.00 | 0.42 | 4.52 | 162.08 | 36.50 | 276.03 | 0.5985 | -643.0 | -560.1 | |
| 1.88 | 7.36 | 1.16 | 4.52 | 3.87 | 161.97 | 36.39 | 274.95 | 0.5964 | -921.7 | -731.7 | |
| 0.00 | 2.48 | 0.00 | 1.52 | 3.51 | 161.84 | 36.26 | 274.36 | 0.5943 | -847.0 | -674.4 | |
| 0.77 | -13.00 | 0.47 | -13.00 | 3.96 | 161.75 | 36.17 | 275.12 | 0.5934 | -845.3 | 999999 | |
| 1.62 | 27.11 | 1.00 | 16.59 | 4.91 | 161.66 | 36.08 | 276.74 | 0.5931 | -773.5 | -408.3 | |
| 3.34 | 11.20 | 2.04 | 6.85 | 3.99 | 161.46 | 35.88 | 275.21 | 0.5893 | -965.5 | -523.5 | |
| 5.39 | -16.00 | 3.30 | -16.00 | 4.70 | 161.47 | 35.88 | 276.42 | 0.5901 | -801.1 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.42 | 5.01 | 160.86 | 35.28 | 277.02 | 0.5819 | -518.0 | -486.0 | |
| 0.60 | 4.87 | 0.36 | 2.95 | 3.85 | 160.76 | 35.18 | 275.05 | 0.5793 | -874.1 | -453.1 | |
| 0.00 | 13.17 | 0.00 | 7.97 | 4.63 | 160.58 | 35.00 | 276.41 | 0.5775 | 340.0 | -29.4 | |
| 6.41 | 22.15 | 3.86 | 13.34 | 3.39 | 160.05 | 34.47 | 274.30 | 0.5688 | 918.4 | 316.8 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 4.90 | 159.99 | 34.40 | 276.97 | 0.5693 | -277.0 | -224.4 | |
| 0.43 | 2.39 | 0.26 | 1.44 | 4.19 | 159.87 | 34.29 | 275.74 | 0.5669 | 649.0 | 512.2 | |
| 0.00 | 1.88 | 0.00 | 1.13 | 3.07 | 159.75 | 34.17 | 273.76 | 0.5642 | 723.0 | 610.6 | |
| 5.39 | 17.62 | 3.23 | 10.56 | 4.58 | 159.72 | 34.13 | 276.44 | 0.5651 | 889.5 | 581.3 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 5.53 | 159.67 | 34.08 | 278.13 | 0.5656 | -623.0 | -497.0 | |
| 0.51 | -26.00 | 0.31 | -26.00 | 4.91 | 159.52 | 33.94 | 277.06 | 0.5627 | 561.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 5.53 | 159.20 | 33.62 | 278.23 | 0.5590 | -884.0 | -786.9 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 5.57 | 158.70 | 33.12 | 278.39 | 0.5519 | -820.0 | -707.7 | |
| 0.00 | 3.08 | 0.00 | 1.81 | 3.26 | 158.23 | 32.65 | 274.24 | 0.5422 | 367.0 | 632.5 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 4.62 | 158.29 | 32.71 | 276.74 | 0.5445 | -551.0 | -564.1 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 4.80 | 158.23 | 32.65 | 277.08 | 0.5439 | -737.0 | -571.8 | |
| 0.00 | 0.51 | 0.00 | 0.30 | 2.46 | 158.13 | 32.55 | 272.77 | 0.5403 | 507.0 | 463.5 | |
| 0.00 | 2.14 | 0.00 | 1.26 | 3.00 | 158.08 | 32.50 | 273.77 | 0.5398 | 570.0 | 337.5 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 4.36 | 158.03 | 32.45 | 276.30 | 0.5404 | -576.0 | -551.8 | |
| 0.00 | 3.93 | 0.00 | 2.31 | 4.93 | 157.89 | 32.30 | 277.37 | 0.5390 | -566.0 | -610.0 | |
| 1.03 | 2.57 | 0.60 | 1.50 | 2.97 | 157.62 | 32.04 | 273.76 | 0.5331 | 749.5 | 605.6 | |
| 0.86 | 7.36 | 0.50 | 4.29 | 4.07 | 157.42 | 31.84 | 275.85 | 0.5311 | 606.2 | 581.8 | |
| 0.68 | -39.00 | 0.40 | -39.00 | 4.22 | 157.29 | 31.71 | 276.15 | 0.5293 | 677.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 6.09 | 157.33 | 31.74 | 279.66 | 0.5328 | 459.0 | 388.8 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 2.89 | 157.06 | 31.48 | 273.65 | 0.5247 | 613.0 | 452.6 | |
| 12.40 | 24.97 | 7.20 | 14.50 | 3.25 | 156.97 | 31.39 | 274.34 | 0.5236 | 943.0 | 673.0 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 5.08 | 156.98 | 31.40 | 277.84 | 0.5260 | 614.0 | 541.0 | |
| 0.00 | 2.05 | 0.00 | 1.19 | 5.32 | 156.96 | 31.38 | 278.30 | 0.5261 | 534.0 | 284.9 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 7.01 | 156.97 | 31.39 | 281.48 | 0.5296 | 709.0 | 619.7 | |
| 11.55 | 90.06 | 6.70 | 52.12 | 6.01 | 156.73 | 31.14 | 279.65 | 0.5238 | 786.8 | 401.3 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 5.03 | 156.67 | 31.09 | 277.80 | 0.5212 | 505.0 | 448.6 | |
| 0.00 | 2.14 | 0.00 | 1.24 | 3.67 | 156.57 | 30.99 | 275.19 | 0.5180 | 789.0 | 661.0 | |
| 0.77 | 4.53 | 0.44 | 2.62 | 3.28 | 156.49 | 30.90 | 274.46 | 0.5164 | 1010.2 | 880.6 | |
| 1.03 | -50.00 | 0.59 | -50.00 | 3.46 | 156.39 | 30.81 | 274.82 | 0.5151 | 1059.7 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 4.88 | 156.45 | 30.87 | 277.56 | 0.5178 | 705.0 | 724.2 | |
| 4.11 | -47.00 | 2.38 | -47.00 | 5.56 | 156.46 | 30.87 | 278.87 | 0.5190 | 763.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 5.00 | 156.36 | 30.77 | 277.81 | 0.5165 | 920.0 | 726.9 | |
| 7.10 | -47.00 | 4.10 | -47.00 | 6.04 | 156.35 | 30.76 | 279.81 | 0.5183 | 942.5 | 999999 | |
| 0.77 | -47.00 | 0.45 | -47.00 | 6.43 | 156.34 | 30.76 | 280.56 | 0.5190 | 737.1 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.93 | 3.08 | 156.10 | 30.52 | 274.10 | 0.5104 | 757.0 | 619.1 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 4.74 | 156.17 | 30.59 | 277.34 | 0.5133 | 800.0 | 676.4 | |
| 18.05 | -47.00 | 10.41 | -47.00 | 5.69 | 156.15 | 30.57 | 279.18 | 0.5147 | 1107.9 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 4.41 | 155.88 | 30.29 | 276.76 | 0.5085 | 820.0 | 687.0 | |
| 0.00 | 0.51 | 0.00 | 0.30 | 7.29 | 156.02 | 30.44 | 282.31 | 0.5164 | 697.0 | 606.0 | |
| 0.00 | 5.13 | 0.00 | 2.94 | 3.88 | 155.79 | 30.20 | 275.72 | 0.5065 | 813.0 | 799.7 | |
| 1.03 | 18.47 | 0.59 | 10.59 | 6.14 | 155.73 | 30.15 | 280.17 | 0.5094 | 823.4 | 601.5 | |
| 0.00 | 1.37 | 0.00 | 0.78 | 4.33 | 155.50 | 29.91 | 276.66 | 0.5027 | 880.0 | 756.7 | |
| 1.11 | -63.00 | 0.64 | -63.00 | 5.81 | 155.54 | 29.96 | 279.58 | 0.5059 | 1026.0 | 999999 | |
| 10.69 | 28.74 | 6.09 | 16.37 | 5.46 | 154.90 | 29.32 | 279.06 | 0.4956 | 1133.2 | 647.2 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 7.07 | 154.46 | 28.88 | 282.42 | 0.4927 | -626.0 | -397.7 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 6.66 | 154.06 | 28.47 | 281.73 | 0.4856 | -661.0 | -573.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
