SDO HMI 2014-11-29 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.22 | 430.18 | 38.62 | 227.24 | 16.42 | 110.46 | -13.48 | 40.19 | 0.3478 | -1204.0 | -367.6 | |
|
previous
or next observation for the same group /

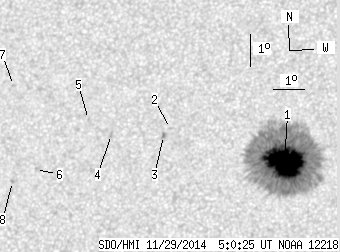

back to the solar disc SDO HMI 2014-11-29 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.22 | 420.00 | 38.62 | 221.67 | 16.40 | 110.62 | -13.32 | 39.96 | 0.3458 | -1559.2 | -397.8 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 17.40 | 106.88 | -17.06 | 44.89 | 0.3983 | 712.0 | 542.9 | |
| 0.00 | 2.22 | 0.00 | 1.20 | 17.18 | 106.68 | -17.27 | 45.63 | 0.3984 | 838.0 | 729.5 | |
| 0.00 | 2.22 | 0.00 | 1.21 | 17.21 | 104.98 | -18.96 | 48.16 | 0.4184 | 817.0 | 667.5 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 17.66 | 104.17 | -19.77 | 48.44 | 0.4325 | 698.0 | 565.7 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 16.12 | 102.60 | -21.34 | 53.38 | 0.4375 | 707.0 | 585.7 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 18.70 | 101.54 | -22.40 | 49.96 | 0.4735 | 794.0 | 627.2 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 15.75 | 101.88 | -22.06 | 54.94 | 0.4436 | 723.0 | 523.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
