SDO HMI 2014-11-29 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.73 | 0.00 | 13.69 | -22.73 | 93.45 | -30.50 | 130.70 | 0.6196 | -206.2 | -90.4 | |
|
previous
or next observation for the same group /

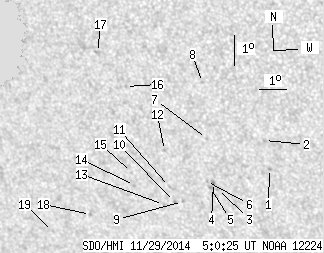

back to the solar disc SDO HMI 2014-11-29 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.78 | -23.02 | 96.95 | -26.99 | 134.26 | 0.5855 | 654.0 | 592.7 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -22.11 | 96.96 | -26.98 | 133.05 | 0.5774 | 638.0 | 481.7 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -23.72 | 94.88 | -29.06 | 133.23 | 0.6125 | 803.0 | 742.4 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -23.49 | 94.79 | -29.15 | 132.84 | 0.6116 | 978.0 | 806.9 | |
| 0.00 | 2.14 | 0.00 | 1.34 | -23.66 | 94.64 | -29.30 | 132.92 | 0.6145 | 588.0 | 459.8 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -23.46 | 94.54 | -29.40 | 132.58 | 0.6139 | 572.0 | 454.8 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -22.07 | 94.87 | -29.07 | 131.01 | 0.5990 | -546.0 | -431.7 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -20.27 | 95.11 | -28.83 | 128.72 | 0.5820 | -747.0 | -579.8 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -24.12 | 93.47 | -30.47 | 132.51 | 0.6301 | -762.0 | -560.0 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -24.13 | 93.17 | -30.77 | 132.25 | 0.6331 | -746.0 | -601.4 | |
| 0.00 | 0.51 | 0.00 | 0.33 | -23.64 | 93.11 | -30.83 | 131.57 | 0.6298 | -641.0 | -564.8 | |
| 0.00 | 1.28 | 0.00 | 0.81 | -22.47 | 93.22 | -30.72 | 130.12 | 0.6196 | -620.0 | -479.8 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -24.23 | 92.73 | -31.22 | 132.01 | 0.6384 | -572.0 | -544.6 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -23.62 | 91.79 | -32.15 | 130.46 | 0.6432 | -622.0 | -536.4 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -23.20 | 91.79 | -32.15 | 129.91 | 0.6400 | -439.0 | -361.5 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -20.43 | 92.26 | -31.68 | 126.54 | 0.6148 | -730.0 | -537.0 | |
| 0.00 | 2.48 | 0.00 | 1.56 | -19.36 | 91.47 | -32.47 | 124.42 | 0.6164 | -591.0 | -379.1 | |
| 0.00 | 1.28 | 0.00 | 0.85 | -24.59 | 89.80 | -34.15 | 130.17 | 0.6703 | -604.0 | -509.7 | |
| 0.00 | 0.60 | 0.00 | 0.41 | -25.17 | 88.09 | -35.85 | 129.67 | 0.6911 | -530.0 | -451.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
