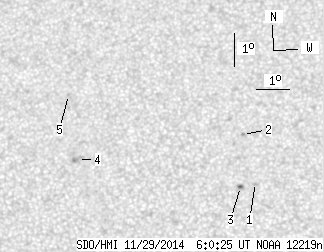

SDO HMI 2014-11-29 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.77 | 9.50 | 0.39 | 4.86 | 15.03 | 119.04 | -4.35 | 16.40 | 0.2554 | -505.7 | -626.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.30 | 14.24 | 122.71 | -0.68 | 2.92 | 0.2282 | -661.0 | -650.1 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 15.70 | 122.31 | -1.09 | 4.14 | 0.2535 | 928.0 | 768.9 | |
| 0.77 | 1.80 | 0.39 | 0.91 | 14.12 | 122.26 | -1.14 | 4.91 | 0.2267 | -940.2 | -858.8 | |
| 0.00 | 5.13 | 0.00 | 2.63 | 14.94 | 117.25 | -6.14 | 23.41 | 0.2615 | -970.0 | -861.9 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 16.92 | 116.91 | -6.48 | 21.63 | 0.2944 | -716.0 | -591.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
