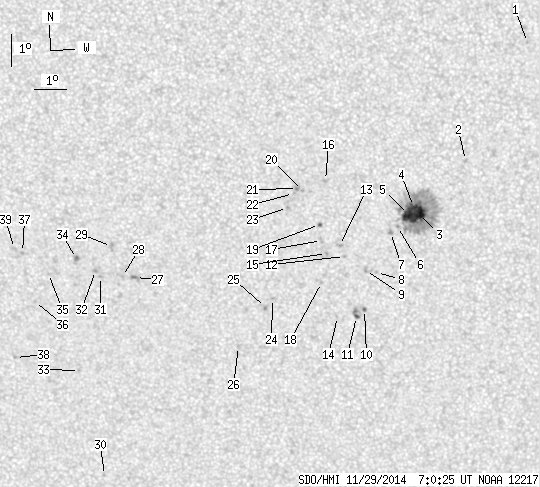

SDO HMI 2014-11-29 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.88 | 194.20 | 16.17 | 101.97 | -17.91 | 124.27 | 1.41 | 184.61 | 0.3332 | 516.0 | 320.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.57 | -12.19 | 129.35 | 6.50 | 205.70 | 0.2564 | 856.0 | 638.2 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -15.80 | 127.54 | 4.69 | 195.13 | 0.3027 | 896.0 | 708.3 | |
| 14.20 | 134.04 | 7.43 | 70.12 | -17.47 | 126.12 | 3.27 | 189.67 | 0.3248 | 1227.9 | 434.9 | |
| 4.19 | -3.00 | 2.19 | -3.00 | -17.22 | 125.96 | 3.11 | 189.34 | 0.3202 | 1379.8 | 999999 | |
| 10.78 | -3.00 | 5.64 | -3.00 | -17.47 | 125.81 | 2.95 | 188.77 | 0.3239 | 1218.5 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -17.84 | 125.47 | 2.62 | 187.62 | 0.3293 | 786.0 | 612.3 | |
| 0.00 | 2.40 | 0.00 | 1.26 | -18.03 | 125.25 | 2.40 | 186.93 | 0.3319 | 852.0 | 734.2 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -19.29 | 124.83 | 1.98 | 185.35 | 0.3517 | 821.0 | 575.1 | |
| 0.00 | 2.05 | 0.00 | 1.08 | -19.22 | 124.49 | 1.64 | 184.43 | 0.3502 | 923.0 | 714.2 | |
| 0.51 | 1.71 | 0.27 | 0.91 | -20.46 | 124.47 | 1.61 | 184.11 | 0.3703 | 1009.5 | 836.9 | |
| 0.86 | 3.42 | 0.46 | 1.83 | -20.68 | 124.22 | 1.36 | 183.43 | 0.3736 | 856.3 | 782.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -18.78 | 123.83 | 0.98 | 182.71 | 0.3422 | 917.0 | 810.0 | |
| 0.00 | 2.48 | 0.00 | 1.30 | -18.44 | 123.67 | 0.82 | 182.32 | 0.3364 | 1064.0 | 785.4 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -20.68 | 123.61 | 0.76 | 181.92 | 0.3732 | 536.0 | 437.1 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -18.69 | 123.26 | 0.41 | 181.15 | 0.3404 | 1089.0 | 814.6 | |
| 0.00 | 2.22 | 0.00 | 1.16 | -16.41 | 123.23 | 0.38 | 181.21 | 0.3025 | 752.0 | 523.5 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -18.28 | 123.11 | 0.26 | 180.73 | 0.3336 | 787.0 | 691.7 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -19.60 | 123.11 | 0.26 | 180.68 | 0.3554 | 917.0 | 656.9 | |
| 0.34 | 1.20 | 0.18 | 0.63 | -17.78 | 123.05 | 0.19 | 180.57 | 0.3253 | -831.5 | -759.7 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.72 | 122.52 | -0.33 | 178.97 | 0.3077 | 1031.0 | 832.3 | |
| 0.00 | 2.48 | 0.00 | 1.29 | -16.65 | 122.37 | -0.48 | 178.48 | 0.3067 | 1142.0 | 948.9 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -16.81 | 122.24 | -0.61 | 178.11 | 0.3093 | 770.0 | 615.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -17.25 | 122.06 | -0.80 | 177.59 | 0.3167 | 856.0 | 712.8 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -20.11 | 121.57 | -1.29 | 176.67 | 0.3642 | 851.0 | 781.1 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -20.39 | 121.34 | -1.51 | 176.15 | 0.3691 | 825.0 | 698.9 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -21.64 | 120.47 | -2.38 | 174.29 | 0.3904 | 775.0 | 520.6 | |
| 0.00 | 3.51 | 0.00 | 1.86 | -19.44 | 117.27 | -5.58 | 165.35 | 0.3645 | -1085.0 | -830.8 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -19.41 | 116.86 | -5.99 | 164.31 | 0.3657 | -979.0 | -841.4 | |
| 0.00 | 3.34 | 0.00 | 1.76 | -18.47 | 116.55 | -6.30 | 162.73 | 0.3524 | -985.0 | -709.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -25.85 | 115.96 | -6.89 | 166.61 | 0.4680 | -749.0 | -617.3 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -19.41 | 116.16 | -6.69 | 162.60 | 0.3690 | -823.0 | -671.4 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -19.22 | 116.01 | -6.84 | 162.07 | 0.3668 | -947.0 | -849.1 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -22.41 | 115.35 | -7.50 | 163.17 | 0.4187 | -750.0 | -579.8 | |
| 0.00 | 3.34 | 0.00 | 1.77 | -18.84 | 115.43 | -7.42 | 160.30 | 0.3640 | -1161.0 | -897.1 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -19.32 | 114.52 | -8.33 | 158.61 | 0.3764 | -562.0 | -488.1 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -20.21 | 114.03 | -8.82 | 158.40 | 0.3926 | -648.0 | -532.9 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -18.66 | 113.74 | -9.11 | 156.06 | 0.3715 | -878.0 | -753.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -22.00 | 113.31 | -9.55 | 158.60 | 0.4232 | -667.0 | -531.6 | |
| 0.00 | 2.91 | 0.00 | 1.55 | -18.53 | 113.49 | -9.36 | 155.35 | 0.3713 | -862.0 | -566.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
