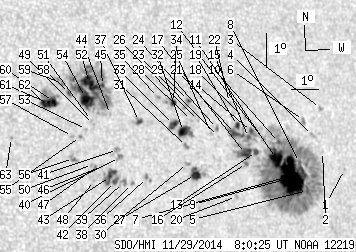

SDO HMI 2014-11-29 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 182.12 | 688.36 | 115.56 | 438.62 | 4.10 | 161.01 | 38.71 | 275.30 | 0.6279 | -115.7 | -91.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.35 | 3.38 | 165.89 | 43.59 | 273.74 | 0.6921 | 480.0 | 482.2 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 3.93 | 165.03 | 42.72 | 274.58 | 0.6814 | -282.0 | -218.7 | |
| 0.00 | 1.97 | 0.00 | 1.33 | 5.20 | 165.05 | 42.74 | 276.46 | 0.6825 | 716.0 | 525.3 | |
| 0.00 | 2.57 | 0.00 | 1.72 | 4.41 | 164.66 | 42.35 | 275.32 | 0.6770 | -385.0 | -298.9 | |
| 2.57 | 406.04 | 1.71 | 267.09 | 2.78 | 164.36 | 42.06 | 272.92 | 0.6723 | 241.8 | -330.9 | |
| 0.00 | 2.40 | 0.00 | 1.60 | 4.86 | 164.33 | 42.02 | 276.01 | 0.6731 | -625.0 | -467.2 | |
| 5.39 | -5.00 | 3.59 | -5.00 | 3.32 | 164.19 | 41.88 | 273.73 | 0.6702 | -384.0 | 999999 | |
| 0.26 | -5.00 | 0.17 | -5.00 | 3.61 | 164.09 | 41.78 | 274.18 | 0.6691 | -143.7 | 999999 | |
| 56.71 | -5.00 | 37.47 | -5.00 | 3.17 | 163.74 | 41.44 | 273.54 | 0.6644 | -1117.6 | 999999 | |
| 1.37 | -5.00 | 0.90 | -5.00 | 4.22 | 163.33 | 41.02 | 275.14 | 0.6596 | -436.6 | 999999 | |
| 15.65 | -5.00 | 10.26 | -5.00 | 3.74 | 163.18 | 40.88 | 274.44 | 0.6573 | -1128.6 | 999999 | |
| 0.00 | 4.02 | 0.00 | 2.62 | 4.28 | 162.75 | 40.44 | 275.30 | 0.6519 | -669.0 | -542.1 | |
| 1.97 | -5.00 | 1.27 | -5.00 | 3.96 | 162.41 | 40.11 | 274.83 | 0.6473 | -833.6 | 999999 | |
| 1.71 | -5.00 | 1.11 | -5.00 | 4.56 | 162.26 | 39.95 | 275.77 | 0.6457 | -55.0 | 999999 | |
| 1.37 | -5.00 | 0.88 | -5.00 | 4.38 | 162.13 | 39.82 | 275.50 | 0.6438 | -923.2 | 999999 | |
| 0.60 | -5.00 | 0.39 | -5.00 | 3.61 | 162.01 | 39.70 | 274.32 | 0.6416 | -925.9 | 999999 | |
| 8.47 | -5.00 | 5.45 | -5.00 | 3.91 | 161.98 | 39.68 | 274.78 | 0.6415 | -975.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 4.95 | 162.01 | 39.71 | 276.40 | 0.6428 | -275.0 | -391.8 | |
| 1.88 | -5.00 | 1.21 | -5.00 | 4.74 | 161.73 | 39.42 | 276.11 | 0.6388 | -686.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.04 | 2.64 | 161.58 | 39.27 | 272.81 | 0.6354 | -732.0 | -608.5 | |
| 5.47 | -5.00 | 3.51 | -5.00 | 4.51 | 161.64 | 39.33 | 275.75 | 0.6373 | -943.3 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.77 | 5.43 | 161.47 | 39.17 | 277.22 | 0.6361 | -624.0 | -566.5 | |
| 0.00 | 0.51 | 0.00 | 0.33 | 4.43 | 160.98 | 38.67 | 275.69 | 0.6284 | 251.0 | 209.0 | |
| 0.00 | 2.14 | 0.00 | 1.36 | 4.66 | 160.96 | 38.65 | 276.07 | 0.6283 | -834.0 | -655.7 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 4.52 | 160.72 | 38.41 | 275.86 | 0.6250 | 471.0 | 185.1 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 4.91 | 160.25 | 37.95 | 276.55 | 0.6190 | -825.0 | -631.5 | |
| 7.61 | 12.06 | 4.77 | 7.56 | 3.31 | 160.05 | 37.74 | 273.97 | 0.6148 | 837.3 | 258.2 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 4.91 | 159.99 | 37.68 | 276.59 | 0.6154 | -598.0 | -500.5 | |
| 0.94 | 5.30 | 0.59 | 3.32 | 5.51 | 159.92 | 37.61 | 277.56 | 0.6151 | 653.4 | 432.4 | |
| 0.00 | 2.05 | 0.00 | 1.28 | 3.64 | 159.76 | 37.46 | 274.53 | 0.6111 | 708.0 | 581.2 | |
| 0.00 | 2.74 | 0.00 | 1.71 | 4.14 | 159.75 | 37.45 | 275.36 | 0.6114 | 688.0 | 563.5 | |
| 7.53 | 12.23 | 4.70 | 7.64 | 4.59 | 159.67 | 37.36 | 276.10 | 0.6106 | 802.9 | 581.8 | |
| 4.62 | 6.93 | 2.87 | 4.31 | 4.80 | 159.31 | 37.00 | 276.50 | 0.6059 | 818.5 | 552.4 | |
| 2.14 | 7.27 | 1.33 | 4.52 | 5.45 | 159.35 | 37.05 | 277.56 | 0.6073 | -828.6 | -677.4 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 5.61 | 158.81 | 36.50 | 277.91 | 0.5999 | -797.0 | -687.8 | |
| 0.00 | 3.34 | 0.00 | 2.04 | 3.24 | 158.26 | 35.96 | 273.99 | 0.5899 | 748.0 | 566.7 | |
| 1.63 | 4.62 | 0.99 | 2.82 | 4.91 | 158.06 | 35.75 | 276.84 | 0.5886 | -850.2 | -701.3 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 3.07 | 157.71 | 35.40 | 273.74 | 0.5819 | 696.0 | 517.4 | |
| 0.00 | 4.45 | 0.00 | 2.69 | 3.11 | 157.38 | 35.08 | 273.82 | 0.5773 | 605.0 | 526.9 | |
| 0.00 | 3.51 | 0.00 | 2.12 | 3.85 | 157.27 | 34.96 | 275.12 | 0.5763 | 683.0 | 567.8 | |
| 0.00 | 2.74 | 0.00 | 1.65 | 4.09 | 157.21 | 34.90 | 275.54 | 0.5756 | 628.0 | 596.8 | |
| 1.63 | 16.77 | 0.98 | 10.10 | 3.14 | 157.09 | 34.79 | 273.90 | 0.5732 | 831.5 | 777.7 | |
| 6.76 | -42.00 | 4.07 | -42.00 | 3.29 | 156.92 | 34.61 | 274.18 | 0.5708 | 878.7 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 5.13 | 157.02 | 34.71 | 277.38 | 0.5741 | 515.0 | 412.2 | |
| 1.20 | 128.30 | 0.72 | 76.95 | 5.99 | 156.79 | 34.48 | 278.93 | 0.5721 | 360.7 | 296.1 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 3.59 | 156.61 | 34.30 | 274.74 | 0.5666 | 544.0 | 515.4 | |
| 0.00 | 1.37 | 0.00 | 0.82 | 3.56 | 156.39 | 34.08 | 274.71 | 0.5634 | 1018.0 | 790.4 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 3.18 | 156.34 | 34.03 | 274.03 | 0.5624 | 797.0 | 613.0 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 4.84 | 156.39 | 34.08 | 276.98 | 0.5647 | 704.0 | 586.8 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 3.65 | 156.29 | 33.98 | 274.88 | 0.5620 | 847.0 | 547.7 | |
| 0.00 | 1.37 | 0.00 | 0.82 | 4.96 | 156.32 | 34.01 | 277.20 | 0.5639 | 822.0 | 630.3 | |
| 14.11 | -45.00 | 8.46 | -45.00 | 6.06 | 156.32 | 34.02 | 279.14 | 0.5657 | 912.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 4.69 | 156.13 | 33.82 | 276.76 | 0.5608 | 781.0 | 531.0 | |
| 18.30 | -45.00 | 10.95 | -45.00 | 5.64 | 156.15 | 33.84 | 278.44 | 0.5625 | 1041.6 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.76 | 4.49 | 155.90 | 33.59 | 276.43 | 0.5573 | 817.0 | 756.1 | |
| 0.00 | 3.93 | 0.00 | 2.33 | 3.84 | 155.62 | 33.31 | 275.29 | 0.5525 | 815.0 | 790.5 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 4.49 | 155.62 | 33.31 | 276.48 | 0.5532 | 844.0 | 677.6 | |
| 0.94 | -45.00 | 0.56 | -45.00 | 5.77 | 155.59 | 33.28 | 278.78 | 0.5546 | 947.7 | 999999 | |
| 0.00 | 4.36 | 0.00 | 2.58 | 6.10 | 155.29 | 32.98 | 279.44 | 0.5509 | 651.0 | 712.0 | |
| 4.79 | 24.04 | 2.83 | 14.16 | 5.54 | 155.00 | 32.70 | 278.49 | 0.5458 | 992.8 | 616.9 | |
| 3.34 | -60.00 | 1.96 | -60.00 | 5.48 | 154.82 | 32.52 | 278.42 | 0.5431 | 1131.5 | 999999 | |
| 3.16 | -60.00 | 1.86 | -60.00 | 5.48 | 154.68 | 32.37 | 278.45 | 0.5410 | 1145.3 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 4.48 | 153.47 | 31.16 | 276.81 | 0.5217 | 798.0 | 753.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
