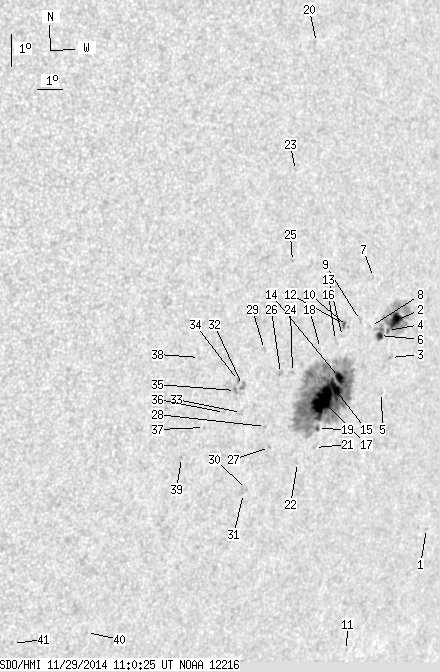

SDO HMI 2014-11-29 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.41 | 405.19 | 47.35 | 291.33 | -13.67 | 165.20 | 44.53 | 249.86 | 0.7282 | 571.2 | 345.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.84 | -18.28 | 170.81 | 50.14 | 245.96 | 0.8005 | 516.0 | 451.1 | |
| 11.12 | 70.64 | 8.26 | 52.43 | -11.82 | 167.41 | 46.74 | 253.02 | 0.7477 | 761.0 | 233.5 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -12.94 | 167.45 | 46.78 | 251.57 | 0.7510 | 686.0 | 572.7 | |
| 0.68 | -2.00 | 0.51 | -2.00 | -12.12 | 167.12 | 46.45 | 252.55 | 0.7452 | 537.8 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -14.01 | 167.32 | 46.65 | 250.14 | 0.7525 | -249.0 | -372.3 | |
| 3.25 | -2.00 | 2.39 | -2.00 | -12.26 | 166.81 | 46.14 | 252.26 | 0.7420 | 789.2 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -10.50 | 166.18 | 45.51 | 254.44 | 0.7305 | 534.0 | 436.3 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -11.98 | 166.35 | 45.68 | 252.50 | 0.7362 | 610.0 | 538.4 | |
| 0.00 | 2.57 | 0.00 | 1.85 | -11.79 | 165.88 | 45.21 | 252.61 | 0.7303 | 547.0 | 486.7 | |
| 0.00 | 1.45 | 0.00 | 1.04 | -11.97 | 165.36 | 44.69 | 252.22 | 0.7248 | 387.0 | 554.3 | |
| 0.00 | 0.86 | 0.00 | 0.69 | -22.11 | 168.57 | 47.90 | 240.55 | 0.7918 | 538.0 | 480.7 | |
| 1.11 | 2.82 | 0.79 | 2.02 | -11.91 | 165.22 | 44.55 | 252.26 | 0.7230 | 661.9 | 535.5 | |
| 0.00 | 1.45 | 0.00 | 1.04 | -12.27 | 165.21 | 44.54 | 251.76 | 0.7240 | 683.0 | 568.2 | |
| 7.44 | 290.24 | 5.37 | 207.92 | -13.52 | 165.36 | 44.69 | 250.14 | 0.7294 | 704.8 | 425.0 | |
| 8.55 | -14.00 | 6.17 | -14.00 | -13.89 | 165.28 | 44.61 | 249.62 | 0.7296 | 819.2 | 999999 | |
| 0.00 | 2.91 | 0.00 | 2.07 | -12.39 | 164.93 | 44.26 | 251.52 | 0.7212 | 628.0 | 520.1 | |
| 31.81 | -14.00 | 22.81 | -14.00 | -14.22 | 164.80 | 44.13 | 249.02 | 0.7253 | 1221.9 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.36 | -12.62 | 164.35 | 43.68 | 251.01 | 0.7151 | 565.0 | 501.0 | |
| 1.45 | -14.00 | 1.05 | -14.00 | -15.08 | 164.81 | 44.14 | 247.88 | 0.7282 | 649.7 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -3.43 | 162.98 | 42.31 | 263.72 | 0.6784 | 620.0 | 547.9 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -15.66 | 164.83 | 44.16 | 247.12 | 0.7305 | 554.0 | 423.8 | |
| 0.00 | 1.11 | 0.00 | 0.80 | -16.12 | 164.23 | 43.56 | 246.28 | 0.7255 | 685.0 | 654.9 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -7.23 | 162.45 | 41.78 | 258.04 | 0.6781 | -524.0 | -433.4 | |
| 0.00 | 1.28 | 0.00 | 0.89 | -13.34 | 163.34 | 42.67 | 249.67 | 0.7056 | 562.0 | 520.4 | |
| 0.00 | 0.51 | 0.00 | 0.35 | -9.96 | 162.70 | 42.03 | 254.17 | 0.6878 | -594.0 | -490.8 | |
| 0.00 | 2.65 | 0.00 | 1.83 | -13.36 | 162.84 | 42.17 | 249.45 | 0.7000 | 666.0 | 419.4 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -15.63 | 162.92 | 42.25 | 246.39 | 0.7091 | -467.0 | -348.5 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -14.98 | 162.60 | 41.93 | 247.13 | 0.7029 | -297.0 | -207.9 | |
| 0.00 | 1.88 | 0.00 | 1.28 | -12.62 | 162.04 | 41.37 | 250.18 | 0.6879 | -500.0 | -434.8 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -16.93 | 162.30 | 41.64 | 244.38 | 0.7073 | -440.0 | -410.8 | |
| 0.00 | 0.43 | 0.00 | 0.30 | -17.05 | 162.21 | 41.54 | 244.18 | 0.7068 | -592.0 | -469.4 | |
| 0.00 | 3.68 | 0.00 | 2.49 | -13.71 | 161.37 | 40.70 | 248.39 | 0.6838 | -417.0 | -460.2 | |
| 0.00 | 2.74 | 0.00 | 1.86 | -14.54 | 161.51 | 40.84 | 247.29 | 0.6886 | -410.0 | -336.4 | |
| 0.00 | 1.20 | 0.00 | 0.81 | -13.55 | 161.18 | 40.51 | 248.52 | 0.6809 | -762.0 | -580.9 | |
| 0.00 | 2.39 | 0.00 | 1.62 | -13.86 | 161.12 | 40.45 | 248.07 | 0.6814 | -716.0 | -623.4 | |
| 0.00 | 0.43 | 0.00 | 0.29 | -14.53 | 160.82 | 40.15 | 247.00 | 0.6805 | -581.0 | -522.8 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -14.98 | 160.12 | 39.45 | 246.05 | 0.6740 | -527.0 | -381.5 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -12.83 | 159.49 | 38.82 | 248.85 | 0.6578 | -422.0 | -354.8 | |
| 0.00 | 1.03 | 0.00 | 0.68 | -15.89 | 159.42 | 38.75 | 244.42 | 0.6697 | -686.0 | -538.9 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -21.36 | 157.08 | 36.41 | 235.60 | 0.6723 | -443.0 | -382.3 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -21.67 | 154.29 | 33.62 | 233.26 | 0.6444 | -623.0 | -430.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
