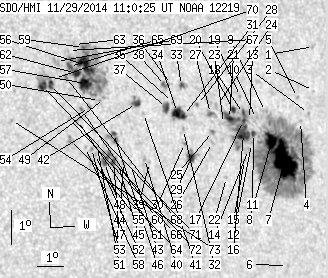

SDO HMI 2014-11-29 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 152.33 | 663.18 | 98.74 | 432.52 | 4.11 | 160.94 | 40.27 | 275.18 | 0.6488 | -122.0 | -103.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.07 | 6.50 | 165.22 | 44.55 | 278.13 | 0.7065 | -530.0 | -379.7 | |
| 0.00 | 0.51 | 0.00 | 0.36 | 5.20 | 165.09 | 44.42 | 276.30 | 0.7036 | 499.0 | 436.5 | |
| 0.00 | 1.03 | 0.00 | 0.71 | 4.52 | 164.82 | 44.15 | 275.35 | 0.6998 | -359.0 | -302.1 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 4.28 | 164.47 | 43.80 | 275.04 | 0.6953 | -105.0 | -192.7 | |
| 0.00 | 1.20 | 0.00 | 0.82 | 5.00 | 164.41 | 43.74 | 276.07 | 0.6950 | -547.0 | -433.8 | |
| 0.00 | 1.45 | 0.00 | 0.99 | 0.03 | 163.78 | 43.11 | 268.87 | 0.6859 | -225.0 | -259.8 | |
| 48.15 | 384.99 | 32.65 | 259.80 | 3.14 | 163.75 | 43.08 | 273.42 | 0.6855 | -1120.5 | -344.7 | |
| 12.83 | -7.00 | 8.63 | -7.00 | 3.71 | 163.25 | 42.58 | 274.28 | 0.6795 | -1138.4 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.49 | 4.60 | 163.07 | 42.40 | 275.62 | 0.6777 | -15.0 | -80.8 | |
| 0.00 | 1.97 | 0.00 | 1.31 | 4.40 | 162.69 | 42.02 | 275.35 | 0.6727 | -378.0 | -385.9 | |
| 1.80 | -7.00 | 1.20 | -7.00 | 3.95 | 162.54 | 41.87 | 274.70 | 0.6705 | -827.3 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.45 | 3.66 | 162.45 | 41.78 | 274.26 | 0.6691 | -760.0 | -681.5 | |
| 0.00 | 0.68 | 0.00 | 0.45 | 4.37 | 162.41 | 41.74 | 275.33 | 0.6691 | -483.0 | -492.9 | |
| 0.00 | 1.37 | 0.00 | 0.91 | 3.48 | 162.32 | 41.65 | 274.01 | 0.6673 | -763.0 | -703.6 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 3.16 | 162.14 | 41.47 | 273.53 | 0.6648 | -622.0 | -542.1 | |
| 12.66 | -7.00 | 8.37 | -7.00 | 3.96 | 162.15 | 41.48 | 274.74 | 0.6653 | -908.7 | 999999 | |
| 1.45 | -7.00 | 0.96 | -7.00 | 4.35 | 162.17 | 41.50 | 275.31 | 0.6659 | -892.9 | 999999 | |
| 1.45 | -7.00 | 0.96 | -7.00 | 4.55 | 162.19 | 41.52 | 275.62 | 0.6663 | 12.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.85 | 5.06 | 162.10 | 41.44 | 276.39 | 0.6657 | -587.0 | -463.3 | |
| 2.31 | -7.00 | 1.52 | -7.00 | 4.68 | 161.80 | 41.13 | 275.85 | 0.6613 | -671.0 | 999999 | |
| 2.82 | -7.00 | 1.85 | -7.00 | 4.41 | 161.62 | 40.95 | 275.46 | 0.6588 | -861.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.73 | 2.67 | 161.41 | 40.74 | 272.81 | 0.6550 | -707.0 | -640.8 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 4.27 | 161.38 | 40.71 | 275.26 | 0.6555 | -404.0 | -336.3 | |
| 0.00 | 2.57 | 0.00 | 1.67 | 4.77 | 161.14 | 40.47 | 276.06 | 0.6527 | -653.0 | -479.0 | |
| 0.00 | 1.62 | 0.00 | 1.06 | 4.04 | 160.93 | 40.26 | 274.95 | 0.6494 | 154.0 | -65.2 | |
| 0.00 | 1.80 | 0.00 | 1.17 | 3.71 | 160.91 | 40.24 | 274.44 | 0.6489 | -772.0 | -588.4 | |
| 1.03 | 4.79 | 0.67 | 3.11 | 4.57 | 160.89 | 40.22 | 275.77 | 0.6493 | -807.0 | -593.3 | |
| 0.00 | 1.37 | 0.00 | 0.88 | 4.84 | 160.40 | 39.73 | 276.25 | 0.6431 | -820.0 | -674.3 | |
| 4.28 | 9.49 | 2.74 | 6.09 | 3.28 | 160.08 | 39.41 | 273.82 | 0.6375 | 843.7 | 461.0 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 3.69 | 159.83 | 39.16 | 274.50 | 0.6344 | 670.0 | 587.9 | |
| 2.65 | 13.77 | 1.70 | 8.78 | 4.52 | 159.84 | 39.17 | 275.81 | 0.6352 | 629.3 | 512.2 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 4.11 | 159.81 | 39.14 | 275.16 | 0.6345 | 354.0 | 283.6 | |
| 1.20 | 3.93 | 0.77 | 2.52 | 5.41 | 159.83 | 39.16 | 277.21 | 0.6360 | 676.6 | 438.7 | |
| 7.35 | -31.00 | 4.69 | -31.00 | 4.62 | 159.62 | 38.95 | 275.98 | 0.6323 | 866.5 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 4.91 | 159.45 | 38.78 | 276.47 | 0.6303 | 428.0 | 334.3 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 5.45 | 159.45 | 38.78 | 277.32 | 0.6309 | -548.0 | -504.8 | |
| 3.85 | 6.76 | 2.44 | 4.28 | 4.77 | 159.21 | 38.54 | 276.27 | 0.6269 | 887.7 | 623.4 | |
| 0.00 | 4.28 | 0.00 | 2.71 | 5.42 | 159.22 | 38.55 | 277.31 | 0.6278 | -873.0 | -712.6 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 3.15 | 158.47 | 37.80 | 273.72 | 0.6156 | 598.0 | 518.1 | |
| 0.00 | 1.80 | 0.00 | 1.12 | 3.27 | 158.29 | 37.62 | 273.93 | 0.6132 | 792.0 | 603.9 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 4.60 | 158.33 | 37.66 | 276.10 | 0.6147 | -726.0 | -554.4 | |
| 3.08 | 6.84 | 1.92 | 4.27 | 4.90 | 158.08 | 37.41 | 276.62 | 0.6117 | -948.6 | -750.5 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 3.13 | 157.76 | 37.09 | 273.73 | 0.6058 | 516.0 | 455.0 | |
| 0.00 | 1.88 | 0.00 | 1.16 | 3.16 | 157.50 | 36.83 | 273.81 | 0.6022 | 558.0 | 489.0 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 3.10 | 157.32 | 36.65 | 273.72 | 0.5995 | 622.0 | 573.6 | |
| 1.03 | 9.15 | 0.63 | 5.64 | 4.02 | 157.17 | 36.50 | 275.28 | 0.5982 | 590.0 | 569.5 | |
| 2.22 | 16.42 | 1.37 | 10.09 | 3.20 | 157.13 | 36.46 | 273.89 | 0.5970 | 737.6 | 750.2 | |
| 1.62 | -47.00 | 1.00 | -47.00 | 3.17 | 156.80 | 36.13 | 273.87 | 0.5923 | 894.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.68 | 5.07 | 156.90 | 36.24 | 277.06 | 0.5955 | 593.0 | 468.7 | |
| 0.00 | 1.28 | 0.00 | 0.79 | 5.01 | 156.72 | 36.05 | 276.99 | 0.5928 | 689.0 | 533.7 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 3.62 | 156.56 | 35.90 | 274.65 | 0.5893 | 562.0 | 506.4 | |
| 0.00 | 1.20 | 0.00 | 0.73 | 3.41 | 156.48 | 35.81 | 274.30 | 0.5880 | 652.0 | 583.1 | |
| 0.00 | 1.20 | 0.00 | 0.73 | 3.59 | 156.34 | 35.67 | 274.62 | 0.5862 | 763.0 | 739.3 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 4.80 | 156.34 | 35.67 | 276.70 | 0.5873 | 718.0 | 597.3 | |
| 0.00 | 1.20 | 0.00 | 0.73 | 3.35 | 156.22 | 35.55 | 274.23 | 0.5843 | 760.0 | 625.5 | |
| 17.02 | 113.82 | 10.41 | 69.64 | 6.05 | 156.31 | 35.64 | 278.82 | 0.5887 | 826.4 | 295.6 | |
| 9.58 | -56.00 | 5.85 | -56.00 | 5.52 | 156.24 | 35.57 | 277.93 | 0.5868 | 992.7 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 3.62 | 156.13 | 35.46 | 274.70 | 0.5831 | 636.0 | 563.8 | |
| 0.60 | -56.00 | 0.37 | -56.00 | 6.59 | 156.25 | 35.58 | 279.74 | 0.5887 | 612.4 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.04 | 4.75 | 156.04 | 35.37 | 276.64 | 0.5830 | 883.0 | 749.2 | |
| 0.00 | 2.48 | 0.00 | 1.51 | 4.42 | 155.88 | 35.21 | 276.11 | 0.5803 | 882.0 | 616.9 | |
| 4.28 | -56.00 | 2.60 | -56.00 | 5.82 | 155.93 | 35.26 | 278.50 | 0.5829 | 1089.0 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.35 | 6.68 | 155.93 | 35.26 | 279.97 | 0.5843 | 579.0 | 369.2 | |
| 0.00 | 4.45 | 0.00 | 2.69 | 3.87 | 155.59 | 34.92 | 275.17 | 0.5757 | 881.0 | 803.7 | |
| 1.97 | -56.00 | 1.19 | -56.00 | 6.03 | 155.69 | 35.02 | 278.90 | 0.5799 | 1006.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 4.49 | 155.59 | 34.92 | 276.26 | 0.5763 | 733.0 | 577.5 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 6.50 | 155.69 | 35.02 | 279.72 | 0.5807 | 144.0 | 189.8 | |
| 0.00 | 1.88 | 0.00 | 1.14 | 5.70 | 155.56 | 34.89 | 278.37 | 0.5775 | 942.0 | 772.1 | |
| 0.00 | 5.13 | 0.00 | 3.10 | 6.18 | 155.23 | 34.56 | 279.27 | 0.5737 | 831.0 | 628.9 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 5.68 | 155.12 | 34.45 | 278.41 | 0.5713 | 449.0 | 456.6 | |
| 2.65 | 20.52 | 1.59 | 12.31 | 5.50 | 154.97 | 34.30 | 278.13 | 0.5688 | 873.2 | 698.8 | |
| 4.45 | -71.00 | 2.66 | -71.00 | 5.48 | 154.68 | 34.01 | 278.14 | 0.5646 | 1100.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 4.45 | 153.51 | 32.84 | 276.50 | 0.5463 | 782.0 | 663.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
