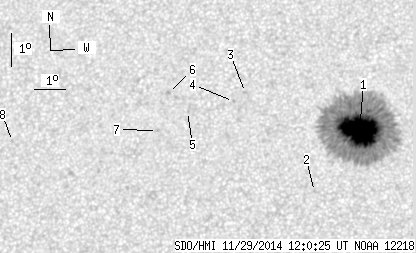

SDO HMI 2014-11-29 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.48 | 420.10 | 37.22 | 218.94 | 16.44 | 110.51 | -9.62 | 31.14 | 0.3110 | -1129.0 | -383.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.48 | 412.40 | 37.22 | 214.85 | 16.43 | 110.61 | -9.52 | 30.93 | 0.3099 | -1444.7 | -403.9 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 14.56 | 109.29 | -10.83 | 37.94 | 0.2971 | -834.0 | -665.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 17.59 | 106.94 | -13.18 | 37.40 | 0.3595 | 887.0 | 740.0 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 17.31 | 106.58 | -13.54 | 38.64 | 0.3597 | 699.0 | 631.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 17.00 | 105.13 | -14.99 | 42.01 | 0.3712 | 726.0 | 580.0 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 17.58 | 104.47 | -15.65 | 42.12 | 0.3851 | 905.0 | 646.2 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 16.41 | 104.22 | -15.90 | 44.78 | 0.3747 | 783.0 | 610.7 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 16.05 | 99.55 | -20.57 | 52.49 | 0.4276 | 679.0 | 609.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
