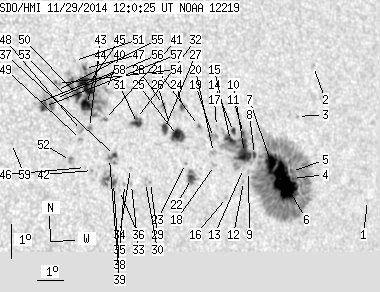

SDO HMI 2014-11-29 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 154.25 | 689.29 | 101.32 | 454.67 | 4.05 | 161.16 | 41.04 | 275.01 | 0.6590 | -196.8 | -97.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.75 | 2.52 | 167.25 | 47.12 | 272.42 | 0.7351 | 491.0 | 350.7 | |
| 0.00 | 2.14 | 0.00 | 1.51 | 6.52 | 165.26 | 45.14 | 278.09 | 0.7137 | -465.0 | -335.7 | |
| 0.00 | 1.28 | 0.00 | 0.89 | 5.05 | 164.44 | 44.32 | 276.10 | 0.7022 | -514.0 | -400.9 | |
| 1.20 | 435.74 | 0.82 | 296.40 | 3.21 | 164.10 | 43.98 | 273.49 | 0.6969 | -426.5 | -313.5 | |
| 1.11 | -4.00 | 0.77 | -4.00 | 3.42 | 164.07 | 43.95 | 273.79 | 0.6966 | -301.8 | 999999 | |
| 47.88 | -4.00 | 32.78 | -4.00 | 3.13 | 163.76 | 43.64 | 273.39 | 0.6927 | -1094.3 | 999999 | |
| 14.62 | -4.00 | 9.93 | -4.00 | 3.67 | 163.26 | 43.14 | 274.20 | 0.6866 | -1150.6 | 999999 | |
| 1.37 | -4.00 | 0.92 | -4.00 | 3.95 | 162.59 | 42.47 | 274.65 | 0.6782 | -879.1 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.80 | 3.45 | 162.32 | 42.20 | 273.92 | 0.6744 | -781.0 | -672.3 | |
| 16.76 | -4.00 | 11.19 | -4.00 | 4.01 | 162.19 | 42.07 | 274.77 | 0.6731 | -900.4 | 999999 | |
| 1.37 | -4.00 | 0.91 | -4.00 | 4.57 | 162.19 | 42.07 | 275.61 | 0.6735 | -9.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 3.15 | 162.10 | 41.98 | 273.50 | 0.6715 | -786.0 | -632.2 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 3.54 | 162.12 | 42.00 | 274.07 | 0.6719 | -665.0 | -673.5 | |
| 1.97 | -4.00 | 1.31 | -4.00 | 4.64 | 161.80 | 41.68 | 275.74 | 0.6684 | -638.3 | 999999 | |
| 5.99 | -4.00 | 3.96 | -4.00 | 4.37 | 161.66 | 41.54 | 275.35 | 0.6664 | -867.8 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.85 | 2.69 | 161.41 | 41.28 | 272.83 | 0.6622 | -784.0 | -633.5 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 4.80 | 161.14 | 41.01 | 276.04 | 0.6599 | -604.0 | -560.1 | |
| 0.00 | 1.80 | 0.00 | 1.18 | 3.64 | 160.98 | 40.86 | 274.30 | 0.6570 | -868.0 | -651.5 | |
| 0.00 | 5.64 | 0.00 | 3.70 | 4.47 | 160.99 | 40.87 | 275.56 | 0.6578 | -627.0 | -621.6 | |
| 0.00 | 2.91 | 0.00 | 1.90 | 4.03 | 160.96 | 40.84 | 274.89 | 0.6571 | 212.0 | -67.3 | |
| 0.34 | 1.37 | 0.22 | 0.89 | 4.83 | 160.43 | 40.31 | 276.17 | 0.6507 | -787.0 | -643.2 | |
| 3.93 | 10.43 | 2.54 | 6.74 | 3.27 | 160.06 | 39.94 | 273.78 | 0.6447 | 838.7 | 496.2 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 3.72 | 159.85 | 39.73 | 274.49 | 0.6421 | 636.0 | 614.1 | |
| 1.62 | 3.68 | 1.05 | 2.37 | 5.41 | 159.85 | 39.73 | 277.13 | 0.6436 | 594.5 | 379.1 | |
| 10.35 | 13.34 | 6.65 | 8.57 | 4.55 | 159.60 | 39.47 | 275.82 | 0.6393 | 818.0 | 509.9 | |
| 0.00 | 0.51 | 0.00 | 0.33 | 4.91 | 159.31 | 39.19 | 276.41 | 0.6359 | 444.0 | 368.0 | |
| 3.85 | 5.81 | 2.46 | 3.71 | 4.76 | 159.11 | 38.99 | 276.21 | 0.6330 | 871.4 | 646.5 | |
| 0.68 | 3.25 | 0.44 | 2.08 | 5.47 | 159.13 | 39.00 | 277.33 | 0.6340 | -743.0 | -565.6 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 3.17 | 158.49 | 38.37 | 273.72 | 0.6233 | 641.0 | 509.8 | |
| 0.00 | 2.82 | 0.00 | 1.78 | 3.17 | 158.30 | 38.18 | 273.74 | 0.6207 | 548.0 | 524.4 | |
| 4.02 | 8.47 | 2.53 | 5.33 | 4.92 | 158.10 | 37.97 | 276.59 | 0.6194 | -927.2 | -682.7 | |
| 0.60 | -31.00 | 0.38 | -31.00 | 5.07 | 158.07 | 37.95 | 276.83 | 0.6192 | -812.0 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.86 | 3.12 | 157.77 | 37.65 | 273.69 | 0.6134 | 542.0 | 383.9 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 3.59 | 157.75 | 37.63 | 274.46 | 0.6135 | 417.0 | 335.4 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 3.12 | 157.51 | 37.39 | 273.71 | 0.6098 | 573.0 | 509.0 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 2.95 | 157.31 | 37.19 | 273.43 | 0.6070 | 453.0 | 381.2 | |
| 1.45 | 8.64 | 0.90 | 5.36 | 3.99 | 157.18 | 37.05 | 275.16 | 0.6058 | 601.6 | 543.8 | |
| 1.37 | 15.90 | 0.85 | 9.85 | 3.16 | 157.10 | 36.98 | 273.79 | 0.6042 | 834.6 | 734.0 | |
| 0.26 | -37.00 | 0.16 | -37.00 | 3.90 | 156.99 | 36.86 | 275.04 | 0.6031 | 814.0 | 999999 | |
| 0.00 | 4.36 | 0.00 | 2.71 | 5.95 | 157.01 | 36.89 | 278.42 | 0.6058 | 487.0 | 200.3 | |
| 0.00 | 2.31 | 0.00 | 1.43 | 5.06 | 156.87 | 36.75 | 276.97 | 0.6027 | 632.0 | 545.6 | |
| 0.00 | 0.51 | 0.00 | 0.32 | 3.55 | 156.34 | 36.22 | 274.51 | 0.5938 | 941.0 | 843.2 | |
| 0.00 | 2.39 | 0.00 | 1.47 | 4.83 | 156.30 | 36.18 | 276.67 | 0.5945 | 763.0 | 648.6 | |
| 9.66 | 107.99 | 5.94 | 66.48 | 5.51 | 156.24 | 36.11 | 277.83 | 0.5944 | 933.9 | 348.0 | |
| 14.02 | -44.00 | 8.63 | -44.00 | 6.04 | 156.28 | 36.15 | 278.71 | 0.5958 | 872.3 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 3.64 | 156.09 | 35.96 | 274.69 | 0.5903 | 612.0 | 521.3 | |
| 1.03 | -44.00 | 0.63 | -44.00 | 6.58 | 156.25 | 36.12 | 279.62 | 0.5963 | 541.6 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.10 | 4.74 | 156.00 | 35.88 | 276.56 | 0.5902 | 859.0 | 691.6 | |
| 0.00 | 1.80 | 0.00 | 1.10 | 4.48 | 155.95 | 35.83 | 276.12 | 0.5891 | 798.0 | 625.2 | |
| 4.70 | -44.00 | 2.88 | -44.00 | 5.81 | 155.93 | 35.80 | 278.39 | 0.5906 | 1068.4 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.31 | 6.82 | 155.90 | 35.78 | 280.10 | 0.5919 | 317.0 | 211.7 | |
| 0.00 | 3.42 | 0.00 | 2.08 | 3.86 | 155.55 | 35.43 | 275.11 | 0.5829 | 993.0 | 849.7 | |
| 0.00 | 1.62 | 0.00 | 0.99 | 5.73 | 155.55 | 35.43 | 278.31 | 0.5852 | 907.0 | 767.0 | |
| 0.00 | 2.65 | 0.00 | 1.61 | 6.15 | 155.22 | 35.10 | 279.09 | 0.5812 | 845.0 | 711.6 | |
| 0.00 | 1.20 | 0.00 | 0.73 | 5.94 | 155.17 | 35.05 | 278.75 | 0.5801 | 735.0 | 606.1 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 5.70 | 155.12 | 34.99 | 278.35 | 0.5790 | 535.0 | 460.4 | |
| 4.10 | 17.53 | 2.47 | 10.59 | 5.47 | 154.70 | 34.58 | 278.02 | 0.5727 | 1081.3 | 697.8 | |
| 0.00 | 1.71 | 0.00 | 1.03 | 5.56 | 154.42 | 34.29 | 278.24 | 0.5689 | 412.0 | 465.6 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 4.39 | 153.45 | 33.33 | 276.31 | 0.5534 | 733.0 | 586.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
