SDO HMI 2014-11-29 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 144.75 | 650.21 | 96.32 | 432.06 | 4.05 | 161.08 | 41.50 | 274.97 | 0.6651 | -274.3 | -80.8 | |
|
previous
or next observation for the same group /

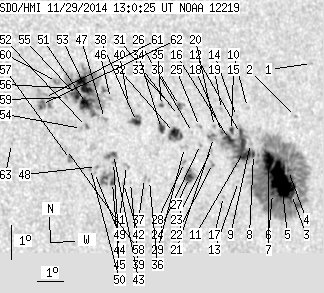

back to the solar disc SDO HMI 2014-11-29 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.73 | 6.57 | 165.31 | 45.74 | 278.09 | 0.7210 | -398.0 | -292.8 | |
| 0.00 | 1.28 | 0.00 | 0.90 | 5.01 | 164.47 | 44.90 | 275.99 | 0.7093 | -490.0 | -394.5 | |
| 2.05 | 396.79 | 1.43 | 272.48 | 2.70 | 164.14 | 44.57 | 272.74 | 0.7042 | -282.4 | -314.1 | |
| 1.11 | -3.00 | 0.77 | -3.00 | 3.41 | 164.06 | 44.48 | 273.76 | 0.7033 | -244.5 | 999999 | |
| 48.22 | -3.00 | 33.31 | -3.00 | 3.09 | 163.75 | 44.17 | 273.31 | 0.6993 | -1084.4 | 999999 | |
| 1.20 | -3.00 | 0.82 | -3.00 | 2.74 | 163.36 | 43.78 | 272.82 | 0.6943 | -1081.7 | 999999 | |
| 13.77 | -3.00 | 9.43 | -3.00 | 3.69 | 163.25 | 43.67 | 274.20 | 0.6933 | -1133.8 | 999999 | |
| 1.45 | -3.00 | 0.99 | -3.00 | 3.91 | 162.65 | 43.07 | 274.55 | 0.6858 | -859.1 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.10 | 4.23 | 162.55 | 42.97 | 275.03 | 0.6848 | -647.0 | -555.4 | |
| 0.00 | 1.37 | 0.00 | 0.93 | 5.30 | 162.51 | 42.94 | 276.60 | 0.6851 | -639.0 | -450.6 | |
| 17.18 | -3.00 | 11.58 | -3.00 | 4.00 | 162.25 | 42.67 | 274.71 | 0.6808 | -896.0 | 999999 | |
| 2.22 | -3.00 | 1.50 | -3.00 | 4.53 | 162.16 | 42.59 | 275.51 | 0.6801 | -157.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.75 | 3.11 | 161.99 | 42.42 | 273.42 | 0.6771 | -761.0 | -649.8 | |
| 0.00 | 0.85 | 0.00 | 0.58 | 5.04 | 162.04 | 42.47 | 276.26 | 0.6789 | -645.0 | -555.9 | |
| 1.62 | -3.00 | 1.09 | -3.00 | 4.63 | 161.81 | 42.23 | 275.68 | 0.6756 | -625.1 | 999999 | |
| 5.30 | -3.00 | 3.54 | -3.00 | 4.36 | 161.71 | 42.13 | 275.29 | 0.6741 | -885.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 2.68 | 161.37 | 41.80 | 272.80 | 0.6689 | -732.0 | -654.3 | |
| 0.60 | -3.00 | 0.40 | -3.00 | 4.57 | 161.44 | 41.87 | 275.63 | 0.6709 | -719.4 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.14 | 5.26 | 161.46 | 41.88 | 276.65 | 0.6716 | -610.0 | -510.1 | |
| 0.00 | 1.20 | 0.00 | 0.79 | 4.76 | 161.14 | 41.56 | 275.93 | 0.6671 | -665.0 | -557.4 | |
| 0.00 | 7.10 | 0.00 | 4.70 | 4.43 | 161.07 | 41.50 | 275.45 | 0.6660 | -683.0 | -567.8 | |
| 0.00 | 2.31 | 0.00 | 1.53 | 3.66 | 160.98 | 41.41 | 274.29 | 0.6643 | -733.0 | -626.6 | |
| 0.00 | 1.45 | 0.00 | 0.96 | 4.08 | 160.97 | 41.40 | 274.92 | 0.6644 | 144.0 | 125.8 | |
| 0.00 | 1.28 | 0.00 | 0.84 | 4.23 | 160.55 | 40.97 | 275.19 | 0.6589 | -621.0 | -470.5 | |
| 0.00 | 2.14 | 0.00 | 1.40 | 4.76 | 160.54 | 40.97 | 276.00 | 0.6593 | -771.0 | -609.8 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 4.59 | 160.26 | 40.68 | 275.76 | 0.6554 | -645.0 | -503.7 | |
| 4.27 | 10.09 | 2.78 | 6.57 | 3.26 | 160.06 | 40.48 | 273.74 | 0.6519 | 792.9 | 457.1 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 3.71 | 159.89 | 40.31 | 274.44 | 0.6499 | 794.0 | 537.1 | |
| 0.00 | 2.48 | 0.00 | 1.61 | 4.15 | 159.91 | 40.34 | 275.12 | 0.6505 | 284.0 | 239.6 | |
| 1.20 | 4.02 | 0.78 | 2.61 | 5.40 | 159.81 | 40.23 | 277.05 | 0.6503 | 611.3 | 446.2 | |
| 0.00 | 1.20 | 0.00 | 0.78 | 5.10 | 159.75 | 40.17 | 276.60 | 0.6491 | -691.0 | -460.3 | |
| 5.90 | 14.36 | 3.82 | 9.30 | 4.60 | 159.55 | 39.98 | 275.85 | 0.6461 | 897.3 | 595.7 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 5.46 | 159.42 | 39.85 | 277.20 | 0.6453 | -600.0 | -516.8 | |
| 3.51 | 5.22 | 2.25 | 3.35 | 4.72 | 159.06 | 39.48 | 276.09 | 0.6396 | 876.9 | 635.2 | |
| 0.60 | 2.14 | 0.39 | 1.38 | 5.41 | 159.11 | 39.54 | 277.15 | 0.6410 | -789.6 | -679.6 | |
| 0.00 | 1.11 | 0.00 | 0.71 | 3.19 | 158.51 | 38.93 | 273.72 | 0.6311 | 527.0 | 421.9 | |
| 0.00 | 1.80 | 0.00 | 1.14 | 3.25 | 158.32 | 38.75 | 273.83 | 0.6286 | 680.0 | 606.3 | |
| 3.51 | 9.23 | 2.22 | 5.86 | 4.94 | 158.12 | 38.54 | 276.55 | 0.6272 | -961.5 | -685.4 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 3.14 | 157.78 | 38.21 | 273.69 | 0.6212 | 506.0 | 491.0 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 5.48 | 157.85 | 38.28 | 277.45 | 0.6242 | -609.0 | -474.3 | |
| 0.00 | 2.91 | 0.00 | 1.83 | 3.64 | 157.66 | 38.08 | 274.51 | 0.6198 | 366.0 | 403.2 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 3.11 | 157.52 | 37.95 | 273.66 | 0.6175 | 597.0 | 461.4 | |
| 1.11 | 5.81 | 0.70 | 3.63 | 3.98 | 157.19 | 37.61 | 275.09 | 0.6135 | 629.5 | 616.0 | |
| 0.00 | 1.37 | 0.00 | 0.86 | 3.74 | 157.17 | 37.60 | 274.71 | 0.6132 | 729.0 | 593.9 | |
| 1.11 | 16.24 | 0.69 | 10.13 | 3.15 | 157.11 | 37.53 | 273.74 | 0.6119 | 753.2 | 717.0 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 5.64 | 157.18 | 37.61 | 277.80 | 0.6153 | -302.0 | -180.8 | |
| 0.00 | 2.48 | 0.00 | 1.55 | 5.05 | 156.92 | 37.34 | 276.88 | 0.6109 | 446.0 | 416.6 | |
| 0.00 | 1.37 | 0.00 | 0.85 | 3.63 | 156.53 | 36.96 | 274.58 | 0.6042 | 656.0 | 633.7 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 3.45 | 156.45 | 36.88 | 274.29 | 0.6030 | 473.0 | 559.3 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 3.57 | 156.31 | 36.73 | 274.51 | 0.6011 | 826.0 | 661.1 | |
| 10.52 | 107.13 | 6.51 | 66.42 | 5.50 | 156.28 | 36.70 | 277.72 | 0.6026 | 861.2 | 350.8 | |
| 0.34 | 1.88 | 0.21 | 1.16 | 4.82 | 156.23 | 36.66 | 276.59 | 0.6011 | 781.5 | 722.3 | |
| 14.02 | -51.00 | 8.68 | -51.00 | 6.04 | 156.24 | 36.67 | 278.61 | 0.6029 | 890.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.00 | 4.76 | 156.04 | 36.47 | 276.52 | 0.5984 | 829.0 | 710.8 | |
| 3.68 | -51.00 | 2.27 | -51.00 | 5.74 | 155.96 | 36.39 | 278.17 | 0.5986 | 1097.1 | 999999 | |
| 0.26 | -51.00 | 0.16 | -51.00 | 5.95 | 155.90 | 36.33 | 278.53 | 0.5981 | 988.0 | 999999 | |
| 0.00 | 3.68 | 0.00 | 2.25 | 3.85 | 155.58 | 36.01 | 275.04 | 0.5911 | 990.0 | 839.0 | |
| 0.00 | 1.20 | 0.00 | 0.73 | 4.15 | 155.45 | 35.88 | 275.56 | 0.5895 | 707.0 | 573.6 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 5.69 | 155.51 | 35.94 | 278.16 | 0.5923 | 783.0 | 779.2 | |
| 0.00 | 3.93 | 0.00 | 2.41 | 6.17 | 155.22 | 35.65 | 279.02 | 0.5889 | 841.0 | 689.9 | |
| 0.00 | 9.49 | 0.00 | 5.77 | 5.70 | 154.75 | 35.17 | 278.31 | 0.5815 | 712.0 | 567.8 | |
| 0.00 | 5.98 | 0.00 | 3.63 | 5.49 | 154.62 | 35.05 | 277.98 | 0.5794 | 1213.0 | 1014.0 | |
| 0.00 | 0.85 | 0.00 | 0.51 | 4.35 | 153.47 | 33.90 | 276.16 | 0.5615 | 772.0 | 660.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
