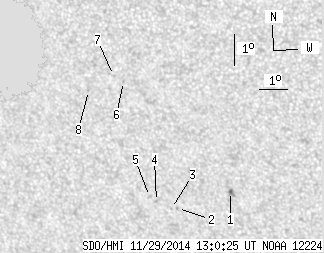

SDO HMI 2014-11-29 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 9.16 | 0.31 | 5.55 | -22.69 | 92.80 | -26.78 | 133.99 | 0.5809 | -207.9 | -25.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 3.16 | 0.31 | 1.90 | -23.61 | 94.83 | -24.75 | 137.35 | 0.5683 | 873.0 | 714.0 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -24.19 | 92.80 | -26.78 | 135.97 | 0.5936 | -635.0 | -572.4 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -24.19 | 92.58 | -26.99 | 135.76 | 0.5957 | -490.0 | -534.0 | |
| 0.00 | 0.43 | 0.00 | 0.26 | -23.96 | 92.09 | -27.49 | 134.98 | 0.5986 | -716.0 | -625.6 | |
| 0.00 | 1.80 | 0.00 | 1.11 | -23.80 | 91.87 | -27.71 | 134.56 | 0.5993 | -740.0 | -489.2 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -20.11 | 91.72 | -27.85 | 129.33 | 0.5694 | -608.0 | -532.9 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -19.92 | 91.40 | -28.17 | 128.76 | 0.5715 | -402.0 | -354.9 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -20.40 | 90.41 | -29.17 | 128.56 | 0.5865 | 720.0 | 621.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
