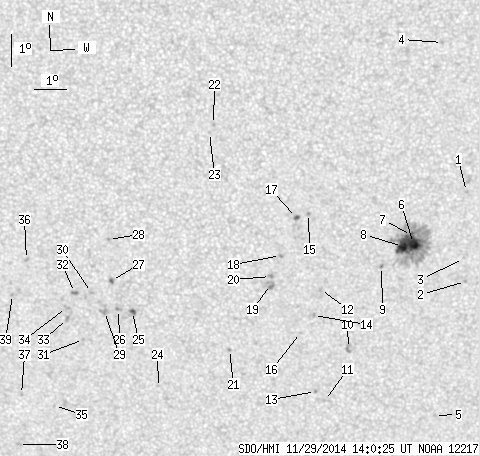

SDO HMI 2014-11-29 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.48 | 179.28 | 17.08 | 94.52 | -17.97 | 123.56 | 4.54 | 193.22 | 0.3432 | 364.0 | 223.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.63 | -15.74 | 127.67 | 8.64 | 206.56 | 0.3249 | 783.0 | 625.6 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -18.54 | 127.77 | 8.74 | 203.22 | 0.3670 | 930.0 | 808.7 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -17.82 | 127.67 | 8.64 | 203.83 | 0.3556 | -598.0 | -386.0 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -11.18 | 126.78 | 7.75 | 211.92 | 0.2514 | 797.0 | 533.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -22.81 | 127.01 | 7.98 | 197.54 | 0.4265 | 730.0 | 540.9 | |
| 15.47 | 113.87 | 8.14 | 59.91 | -17.35 | 126.08 | 7.06 | 200.35 | 0.3387 | 1213.7 | 398.1 | |
| 1.97 | -6.00 | 1.03 | -6.00 | -17.10 | 126.01 | 6.98 | 200.43 | 0.3344 | 1172.9 | 999999 | |
| 12.05 | -6.00 | 6.34 | -6.00 | -17.44 | 125.74 | 6.72 | 199.35 | 0.3382 | 1156.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -18.06 | 125.11 | 6.08 | 197.07 | 0.3446 | 916.0 | 792.8 | |
| 0.00 | 3.68 | 0.00 | 1.97 | -20.65 | 124.15 | 5.13 | 192.73 | 0.3813 | 883.0 | 811.9 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -22.31 | 123.44 | 4.42 | 190.17 | 0.4052 | 685.0 | 503.9 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -18.78 | 123.22 | 4.19 | 191.52 | 0.3483 | 790.0 | 616.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -22.02 | 123.15 | 4.12 | 189.63 | 0.3998 | -862.0 | -750.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -19.60 | 123.02 | 3.99 | 190.53 | 0.3608 | 830.0 | 635.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -16.40 | 122.80 | 3.77 | 191.86 | 0.3085 | 827.0 | 609.6 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -20.13 | 122.62 | 3.60 | 189.24 | 0.3684 | 539.0 | 511.9 | |
| 0.85 | 2.74 | 0.45 | 1.42 | -16.53 | 122.43 | 3.40 | 190.65 | 0.3093 | 1073.6 | 903.0 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -17.71 | 121.95 | 2.93 | 188.58 | 0.3273 | 969.0 | 846.1 | |
| 0.00 | 5.04 | 0.00 | 2.66 | -18.62 | 121.65 | 2.63 | 187.34 | 0.3415 | 880.0 | 855.5 | |
| 0.00 | 2.05 | 0.00 | 1.08 | -18.36 | 121.65 | 2.62 | 187.43 | 0.3374 | 982.0 | 899.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -20.67 | 120.39 | 1.36 | 183.44 | 0.3730 | 923.0 | 767.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -13.66 | 119.86 | 0.83 | 183.18 | 0.2561 | 832.0 | 646.2 | |
| 0.00 | 0.68 | 0.00 | 0.35 | -13.90 | 119.74 | 0.71 | 182.67 | 0.2602 | 785.0 | 595.6 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -21.88 | 118.14 | -0.89 | 177.89 | 0.3923 | -476.0 | -479.2 | |
| 1.37 | 3.85 | 0.72 | 2.04 | -19.46 | 117.34 | -1.69 | 175.48 | 0.3537 | -1008.1 | -804.1 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -19.40 | 116.90 | -2.13 | 174.29 | 0.3533 | -1016.0 | -829.9 | |
| 0.77 | 2.65 | 0.40 | 1.39 | -18.48 | 116.69 | -2.33 | 173.43 | 0.3387 | -814.1 | -574.5 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -17.20 | 116.62 | -2.41 | 172.72 | 0.3178 | -889.0 | -728.8 | |
| 0.00 | 4.45 | 0.00 | 2.35 | -19.46 | 116.46 | -2.57 | 173.14 | 0.3551 | -905.0 | -730.5 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -18.86 | 116.06 | -2.96 | 171.84 | 0.3462 | -917.0 | -650.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.35 | 115.78 | -3.24 | 171.74 | 0.3709 | -845.0 | -657.0 | |
| 0.00 | 2.48 | 0.00 | 1.31 | -18.86 | 115.53 | -3.49 | 170.41 | 0.3476 | -1117.0 | -968.0 | |
| 0.00 | 2.56 | 0.00 | 1.36 | -19.68 | 115.29 | -3.73 | 170.19 | 0.3615 | -904.0 | -690.0 | |
| 0.00 | 2.65 | 0.00 | 1.40 | -19.33 | 115.27 | -3.76 | 169.95 | 0.3559 | -783.0 | -749.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -22.46 | 114.80 | -4.22 | 170.33 | 0.4070 | -770.0 | -625.7 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -17.83 | 114.06 | -4.97 | 165.73 | 0.3359 | -961.0 | -778.9 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -22.11 | 113.76 | -5.27 | 167.81 | 0.4047 | -700.0 | -527.6 | |
| 0.00 | 2.22 | 0.00 | 1.22 | -23.73 | 113.59 | -5.43 | 168.33 | 0.4303 | -759.0 | -577.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.92 | 113.59 | -5.44 | 165.32 | 0.3553 | -730.0 | -657.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
