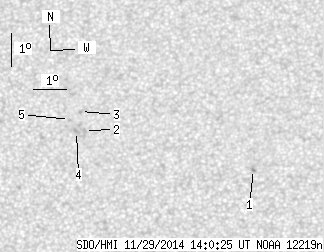

SDO HMI 2014-11-29 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.45 | 0.00 | 3.80 | 15.07 | 118.35 | -0.67 | 2.33 | 0.2461 | -887.4 | -749.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.87 | 14.01 | 122.49 | 3.46 | 345.32 | 0.2322 | -985.0 | -795.0 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 15.20 | 117.33 | -1.70 | 6.68 | 0.2466 | -935.0 | -801.9 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 15.78 | 117.20 | -1.82 | 6.89 | 0.2566 | -820.0 | -669.9 | |
| 0.00 | 2.14 | 0.00 | 1.09 | 15.17 | 117.08 | -1.94 | 7.65 | 0.2466 | -953.0 | -801.7 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 15.54 | 116.87 | -2.16 | 8.28 | 0.2533 | -744.0 | -607.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
