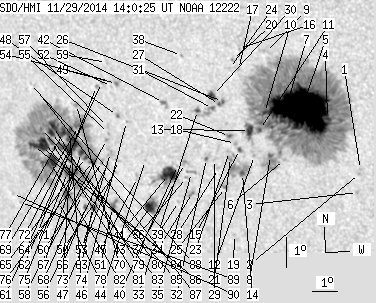

SDO HMI 2014-11-29 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 305.20 | 1398.18 | 200.59 | 918.33 | -19.64 | 83.20 | -35.83 | 122.69 | 0.6543 | 219.8 | 23.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.69 | -20.79 | 89.01 | -30.02 | 128.37 | 0.5988 | 505.0 | 381.8 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -20.92 | 88.94 | -30.08 | 128.50 | 0.6005 | 678.0 | 588.6 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -21.53 | 88.73 | -30.29 | 129.16 | 0.6075 | 709.0 | 567.8 | |
| 2.22 | 775.72 | 1.37 | 482.53 | -19.18 | 88.15 | -30.87 | 125.36 | 0.5966 | 1305.1 | 296.5 | |
| 151.83 | -4.00 | 94.24 | -4.00 | -18.91 | 87.25 | -31.77 | 124.26 | 0.6050 | 1159.4 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.76 | -20.50 | 86.26 | -32.77 | 125.77 | 0.6271 | 566.0 | 485.4 | |
| 1.62 | -4.00 | 1.02 | -4.00 | -19.30 | 86.43 | -32.60 | 124.20 | 0.6170 | 442.0 | 999999 | |
| 1.37 | -4.00 | 0.87 | -4.00 | -20.38 | 85.76 | -33.27 | 125.23 | 0.6318 | -903.6 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -17.13 | 86.30 | -32.73 | 120.95 | 0.6047 | 4.0 | 30.2 | |
| 2.39 | -4.00 | 1.51 | -4.00 | -19.02 | 85.86 | -33.17 | 123.39 | 0.6218 | 520.5 | 999999 | |
| 1.97 | -4.00 | 1.25 | -4.00 | -19.56 | 85.54 | -33.48 | 123.93 | 0.6288 | 268.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -20.39 | 85.15 | -33.87 | 124.80 | 0.6386 | -793.0 | -655.9 | |
| 5.39 | -4.00 | 3.44 | -4.00 | -19.59 | 85.16 | -33.87 | 123.70 | 0.6334 | 692.8 | 999999 | |
| 2.05 | 24.96 | 1.33 | 16.21 | -20.96 | 84.54 | -34.48 | 125.16 | 0.6490 | -826.6 | -346.2 | |
| 1.03 | 2.31 | 0.66 | 1.49 | -20.20 | 84.63 | -34.40 | 124.17 | 0.6432 | 605.4 | 503.1 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -17.02 | 85.36 | -33.67 | 120.14 | 0.6153 | 539.0 | 467.1 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -17.68 | 85.18 | -33.84 | 120.99 | 0.6213 | 520.0 | 407.4 | |
| 0.00 | 1.62 | 0.00 | 1.05 | -20.01 | 84.52 | -34.50 | 123.84 | 0.6432 | -346.0 | -159.5 | |
| 0.00 | 1.11 | 0.00 | 0.74 | -22.94 | 83.67 | -35.36 | 127.16 | 0.6710 | 690.0 | 480.5 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -17.37 | 85.02 | -34.00 | 120.43 | 0.6213 | -648.0 | -596.4 | |
| 0.00 | 3.93 | 0.00 | 2.55 | -20.46 | 84.21 | -34.81 | 124.25 | 0.6494 | 715.0 | 475.2 | |
| 0.77 | 2.31 | 0.50 | 1.49 | -19.79 | 84.35 | -34.68 | 123.42 | 0.6437 | 521.7 | 408.1 | |
| 0.00 | 1.80 | 0.00 | 1.16 | -20.27 | 84.22 | -34.80 | 123.99 | 0.6481 | -33.0 | -109.8 | |
| 0.00 | 1.20 | 0.00 | 0.76 | -17.65 | 84.85 | -34.18 | 120.72 | 0.6250 | -494.0 | -367.4 | |
| 0.60 | 4.45 | 0.39 | 2.92 | -21.42 | 83.76 | -35.27 | 125.23 | 0.6604 | -810.0 | -601.2 | |
| 0.77 | 4.27 | 0.49 | 2.74 | -18.69 | 84.35 | -34.68 | 121.88 | 0.6370 | 808.2 | 565.3 | |
| 0.94 | -26.00 | 0.60 | -26.00 | -18.78 | 84.21 | -34.81 | 121.92 | 0.6391 | 695.4 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.90 | -20.82 | 83.65 | -35.37 | 124.35 | 0.6577 | 525.0 | 408.3 | |
| 0.00 | 1.37 | 0.00 | 0.90 | -20.53 | 83.58 | -35.45 | 123.91 | 0.6568 | -227.0 | -209.9 | |
| 3.93 | 5.39 | 2.53 | 3.46 | -18.50 | 84.01 | -35.01 | 121.40 | 0.6398 | 632.2 | 402.4 | |
| 0.85 | 13.08 | 0.55 | 8.48 | -18.91 | 83.91 | -35.11 | 121.91 | 0.6433 | 624.9 | 196.2 | |
| 0.77 | 2.22 | 0.51 | 1.46 | -20.50 | 83.27 | -35.75 | 123.67 | 0.6600 | -724.0 | -493.2 | |
| 1.37 | -31.00 | 0.89 | -31.00 | -18.98 | 83.32 | -35.71 | 121.62 | 0.6505 | 477.3 | 999999 | |
| 0.34 | 3.33 | 0.23 | 2.24 | -21.60 | 82.41 | -36.62 | 124.57 | 0.6759 | 562.5 | 199.9 | |
| 0.00 | 3.68 | 0.00 | 2.45 | -20.96 | 82.56 | -36.47 | 123.82 | 0.6705 | 619.0 | 494.2 | |
| 0.00 | 1.11 | 0.00 | 0.74 | -21.12 | 82.31 | -36.71 | 123.88 | 0.6741 | 320.0 | 184.5 | |
| 0.00 | 2.48 | 0.00 | 1.65 | -20.67 | 82.36 | -36.66 | 123.32 | 0.6709 | 46.0 | 67.2 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -17.26 | 83.11 | -35.91 | 119.07 | 0.6432 | 468.0 | 374.6 | |
| 0.00 | 1.11 | 0.00 | 0.75 | -21.89 | 81.76 | -37.27 | 124.55 | 0.6845 | -523.0 | -513.6 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -20.74 | 82.06 | -36.96 | 123.22 | 0.6745 | 682.0 | 672.0 | |
| 15.64 | 31.29 | 10.55 | 21.15 | -21.03 | 81.62 | -37.40 | 123.33 | 0.6810 | 738.0 | 100.4 | |
| 0.94 | 4.53 | 0.62 | 2.99 | -18.74 | 82.06 | -36.97 | 120.52 | 0.6634 | 836.7 | 511.1 | |
| 9.75 | 19.92 | 6.72 | 13.71 | -22.07 | 80.57 | -38.46 | 124.05 | 0.6980 | -887.8 | -647.7 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -20.59 | 80.83 | -38.20 | 122.28 | 0.6871 | -599.0 | -524.0 | |
| 0.00 | 3.68 | 0.00 | 2.53 | -21.14 | 80.34 | -38.69 | 122.71 | 0.6953 | -239.0 | -320.5 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -19.36 | 80.42 | -38.60 | 120.41 | 0.6849 | 388.0 | 285.9 | |
| 0.00 | 1.97 | 0.00 | 1.36 | -20.61 | 79.73 | -39.30 | 121.67 | 0.6989 | -614.0 | -550.0 | |
| 0.51 | 1.20 | 0.35 | 0.81 | -19.18 | 80.11 | -38.91 | 119.99 | 0.6874 | -869.8 | -782.9 | |
| 0.60 | 2.74 | 0.40 | 1.84 | -18.17 | 80.35 | -38.68 | 118.76 | 0.6797 | -889.1 | -791.7 | |
| 0.00 | 1.45 | 0.00 | 1.01 | -20.96 | 79.49 | -39.53 | 122.00 | 0.7032 | -589.0 | -628.1 | |
| 2.39 | 6.50 | 1.69 | 4.58 | -22.12 | 78.98 | -40.04 | 123.20 | 0.7146 | -797.8 | -736.9 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -18.27 | 80.12 | -38.90 | 118.77 | 0.6827 | -520.0 | -597.3 | |
| 0.00 | 6.07 | 0.00 | 4.20 | -20.36 | 79.48 | -39.55 | 121.20 | 0.7003 | -720.0 | -700.3 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -18.11 | 80.12 | -38.90 | 118.56 | 0.6819 | -612.0 | -606.0 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -19.75 | 79.58 | -39.45 | 120.46 | 0.6961 | -765.0 | -685.5 | |
| 0.00 | 1.97 | 0.00 | 1.37 | -20.74 | 79.23 | -39.79 | 121.57 | 0.7049 | -705.0 | -707.3 | |
| 0.00 | 1.71 | 0.00 | 1.17 | -19.53 | 79.60 | -39.42 | 120.18 | 0.6947 | -904.0 | -700.2 | |
| 0.00 | 1.37 | 0.00 | 0.94 | -19.94 | 79.44 | -39.59 | 120.64 | 0.6986 | -916.0 | -803.7 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -17.51 | 80.12 | -38.91 | 117.74 | 0.6791 | -628.0 | -574.5 | |
| 0.00 | 2.05 | 0.00 | 1.43 | -20.65 | 79.06 | -39.97 | 121.35 | 0.7062 | -697.0 | -685.0 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -18.14 | 79.75 | -39.27 | 118.41 | 0.6863 | -666.0 | -567.9 | |
| 0.00 | 1.28 | 0.00 | 0.87 | -18.27 | 79.52 | -39.51 | 118.46 | 0.6895 | -661.0 | -554.6 | |
| 2.22 | 6.07 | 1.59 | 4.33 | -22.13 | 78.14 | -40.89 | 122.75 | 0.7233 | -718.7 | -680.4 | |
| 2.48 | 401.19 | 1.74 | 286.59 | -20.65 | 78.64 | -40.39 | 121.13 | 0.7107 | -939.0 | -326.4 | |
| 1.71 | -64.00 | 1.20 | -64.00 | -20.53 | 78.39 | -40.64 | 120.84 | 0.7127 | -958.3 | 999999 | |
| 1.37 | 2.65 | 0.98 | 1.90 | -22.13 | 77.84 | -41.19 | 122.59 | 0.7264 | -527.4 | -375.3 | |
| 2.91 | -64.00 | 2.05 | -64.00 | -20.37 | 78.27 | -40.75 | 120.57 | 0.7132 | -1010.5 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.84 | -21.75 | 77.80 | -41.22 | 122.09 | 0.7248 | -692.0 | -576.0 | |
| 4.19 | -64.00 | 2.93 | -64.00 | -19.54 | 78.41 | -40.62 | 119.57 | 0.7077 | -1019.5 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.54 | -18.85 | 78.53 | -40.49 | 118.72 | 0.7031 | -899.0 | -716.9 | |
| 4.10 | -64.00 | 2.93 | -64.00 | -20.98 | 77.77 | -41.25 | 121.10 | 0.7213 | -776.7 | 999999 | |
| 16.41 | -64.00 | 11.61 | -64.00 | -20.15 | 77.92 | -41.10 | 120.11 | 0.7158 | -958.0 | 999999 | |
| 2.48 | -64.00 | 1.76 | -64.00 | -20.63 | 77.72 | -41.30 | 120.63 | 0.7202 | -743.7 | 999999 | |
| 3.59 | -64.00 | 2.53 | -64.00 | -19.71 | 77.98 | -41.04 | 119.57 | 0.7131 | -986.9 | 999999 | |
| 4.02 | -64.00 | 2.88 | -64.00 | -21.02 | 77.47 | -41.56 | 120.99 | 0.7247 | -636.7 | 999999 | |
| 4.02 | 16.84 | 2.91 | 12.20 | -21.73 | 77.17 | -41.85 | 121.73 | 0.7311 | -607.6 | -178.6 | |
| 3.76 | -64.00 | 2.66 | -64.00 | -19.74 | 77.72 | -41.31 | 119.48 | 0.7160 | -979.1 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -21.96 | 76.74 | -42.28 | 121.80 | 0.7365 | 200.0 | 213.3 | |
| 5.90 | -64.00 | 4.19 | -64.00 | -19.56 | 77.36 | -41.67 | 119.06 | 0.7190 | -940.5 | 999999 | |
| 2.99 | -64.00 | 2.13 | -64.00 | -19.75 | 77.21 | -41.81 | 119.24 | 0.7215 | -825.3 | 999999 | |
| 3.25 | -64.00 | 2.32 | -64.00 | -20.04 | 77.12 | -41.91 | 119.56 | 0.7238 | -722.7 | 999999 | |
| 13.08 | -64.00 | 9.44 | -64.00 | -20.71 | 76.85 | -42.18 | 120.28 | 0.7296 | -637.8 | 999999 | |
| 5.90 | -64.00 | 4.24 | -64.00 | -20.07 | 76.81 | -42.22 | 119.45 | 0.7272 | -736.1 | 999999 | |
| 5.13 | -64.00 | 3.70 | -64.00 | -20.20 | 76.64 | -42.39 | 119.53 | 0.7295 | -691.4 | 999999 | |
| 1.03 | -64.00 | 0.74 | -64.00 | -19.63 | 76.83 | -42.20 | 118.89 | 0.7250 | -591.2 | 999999 | |
| 4.62 | -64.00 | 3.35 | -64.00 | -20.17 | 76.30 | -42.72 | 119.34 | 0.7329 | -532.5 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.73 | -18.27 | 76.91 | -42.11 | 117.18 | 0.7181 | 399.0 | 342.6 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -18.21 | 76.81 | -42.22 | 117.05 | 0.7190 | 401.0 | 286.5 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -22.01 | 75.06 | -43.97 | 121.04 | 0.7536 | -519.0 | -435.2 | |
| 0.00 | 1.20 | 0.00 | 0.90 | -21.72 | 74.81 | -44.21 | 120.58 | 0.7548 | -515.0 | -384.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
