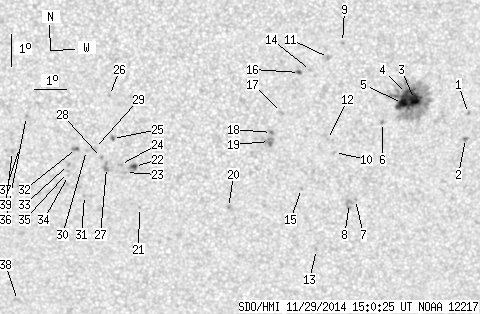

SDO HMI 2014-11-29 15:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.07 | 173.30 | 17.42 | 91.42 | -18.04 | 123.44 | 4.97 | 194.26 | 0.3459 | 268.3 | 216.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 15:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.50 | -17.79 | 127.81 | 9.33 | 205.52 | 0.3599 | -822.0 | -722.1 | |
| 0.00 | 2.05 | 0.00 | 1.09 | -18.58 | 127.75 | 9.28 | 204.44 | 0.3710 | 1065.0 | 822.9 | |
| 15.30 | 106.17 | 8.06 | 55.92 | -17.35 | 126.09 | 7.62 | 201.82 | 0.3420 | 1179.6 | 413.7 | |
| 4.10 | -3.00 | 2.16 | -3.00 | -17.16 | 125.84 | 7.36 | 201.36 | 0.3376 | 1317.8 | 999999 | |
| 10.51 | -3.00 | 5.54 | -3.00 | -17.47 | 125.72 | 7.25 | 200.72 | 0.3417 | 1141.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -18.06 | 125.12 | 6.65 | 198.54 | 0.3475 | 954.0 | 839.4 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -20.49 | 124.36 | 5.88 | 194.64 | 0.3817 | 935.0 | 750.2 | |
| 0.00 | 5.39 | 0.00 | 2.89 | -20.62 | 124.17 | 5.70 | 194.11 | 0.3829 | 764.0 | 764.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -15.57 | 123.80 | 5.33 | 197.33 | 0.3016 | 707.0 | 567.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -19.00 | 123.65 | 5.17 | 193.94 | 0.3554 | 846.0 | 612.6 | |
| 0.00 | 2.31 | 0.00 | 1.20 | -16.03 | 123.38 | 4.91 | 195.60 | 0.3070 | 832.0 | 695.4 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -18.59 | 123.42 | 4.94 | 193.63 | 0.3480 | 827.0 | 673.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -22.09 | 123.17 | 4.70 | 190.92 | 0.4025 | -985.0 | -731.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -16.44 | 122.83 | 4.36 | 193.61 | 0.3112 | 782.0 | 598.7 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -20.14 | 122.64 | 4.16 | 190.67 | 0.3700 | 883.0 | 651.1 | |
| 0.77 | 2.14 | 0.40 | 1.11 | -16.50 | 122.50 | 4.02 | 192.55 | 0.3109 | 1056.2 | 828.2 | |
| 0.00 | 1.97 | 0.00 | 1.03 | -17.74 | 121.96 | 3.49 | 190.17 | 0.3293 | 917.0 | 668.7 | |
| 0.00 | 2.05 | 0.00 | 1.08 | -18.37 | 121.66 | 3.19 | 189.00 | 0.3387 | 1050.0 | 860.0 | |
| 0.00 | 6.15 | 0.00 | 3.24 | -18.65 | 121.60 | 3.13 | 188.71 | 0.3431 | 873.0 | 873.8 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -20.73 | 120.34 | 1.87 | 184.69 | 0.3746 | 891.0 | 697.7 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -20.73 | 117.53 | -0.94 | 177.63 | 0.3736 | -629.0 | -477.3 | |
| 1.62 | 4.87 | 0.86 | 2.58 | -19.43 | 117.38 | -1.09 | 177.07 | 0.3525 | -1002.1 | -767.7 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -19.62 | 117.10 | -1.38 | 176.34 | 0.3559 | -800.0 | -685.2 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -19.37 | 116.95 | -1.53 | 175.88 | 0.3519 | -876.0 | -710.1 | |
| 0.43 | 2.05 | 0.22 | 1.08 | -18.55 | 116.70 | -1.77 | 175.02 | 0.3388 | -884.6 | -685.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -17.20 | 116.63 | -1.85 | 174.39 | 0.3168 | -976.0 | -727.4 | |
| 0.00 | 4.02 | 0.00 | 2.13 | -19.46 | 116.51 | -1.97 | 174.73 | 0.3541 | -886.0 | -842.4 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -19.14 | 116.35 | -2.12 | 174.22 | 0.3491 | -1035.0 | -734.0 | |
| 0.00 | 2.39 | 0.00 | 1.26 | -18.86 | 116.14 | -2.34 | 173.55 | 0.3449 | -795.0 | -586.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -18.92 | 115.89 | -2.59 | 172.89 | 0.3464 | -963.0 | -778.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -20.35 | 115.80 | -2.68 | 173.17 | 0.3697 | -666.0 | -607.9 | |
| 0.34 | 2.74 | 0.18 | 1.44 | -18.86 | 115.58 | -2.90 | 172.01 | 0.3461 | -1149.5 | -953.6 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -19.37 | 115.31 | -3.16 | 171.53 | 0.3548 | -884.0 | -795.1 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -19.71 | 115.31 | -3.17 | 171.67 | 0.3605 | -846.0 | -610.7 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -19.62 | 115.28 | -3.20 | 171.55 | 0.3590 | -704.0 | -756.4 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -17.86 | 114.04 | -4.44 | 167.22 | 0.3344 | -906.0 | -764.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -18.83 | 113.79 | -4.68 | 167.22 | 0.3508 | -738.0 | -611.0 | |
| 0.00 | 2.91 | 0.00 | 1.59 | -23.73 | 113.56 | -4.91 | 169.41 | 0.4287 | -772.0 | -518.5 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -18.96 | 113.57 | -4.91 | 166.72 | 0.3537 | -836.0 | -685.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
