SDO HMI 2014-11-29 15:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.57 | 432.10 | 37.63 | 224.26 | 16.47 | 110.51 | -7.96 | 26.53 | 0.2982 | -1146.9 | -374.3 | |
|
previous
or next observation for the same group /

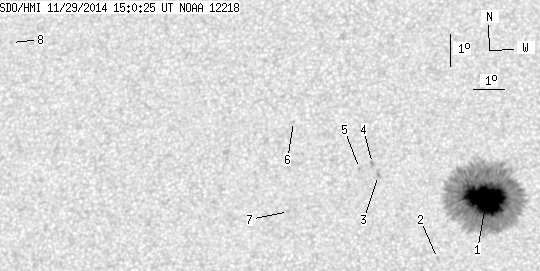

back to the solar disc SDO HMI 2014-11-29 15:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.57 | 423.81 | 37.63 | 219.87 | 16.45 | 110.61 | -7.86 | 26.33 | 0.2971 | -1462.6 | -395.5 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 14.65 | 109.16 | -9.31 | 33.70 | 0.2834 | -852.0 | -635.7 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 17.18 | 107.19 | -11.28 | 33.96 | 0.3361 | 1016.0 | 829.0 | |
| 0.00 | 2.22 | 0.00 | 1.17 | 17.55 | 106.98 | -11.50 | 33.81 | 0.3430 | 877.0 | 727.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 17.40 | 106.58 | -11.90 | 34.98 | 0.3447 | 670.0 | 549.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 18.85 | 104.36 | -14.11 | 37.06 | 0.3845 | 592.0 | 480.5 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 16.07 | 104.42 | -14.06 | 42.01 | 0.3502 | 926.0 | 747.6 | |
| 0.00 | 0.68 | 0.00 | 0.39 | 21.27 | 94.66 | -23.82 | 47.36 | 0.5137 | 623.0 | 548.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
