SDO HMI 2014-11-29 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.93 | 173.51 | 16.33 | 91.63 | -17.84 | 124.14 | 6.22 | 197.74 | 0.3472 | 397.5 | 294.4 | |
|
previous
or next observation for the same group /

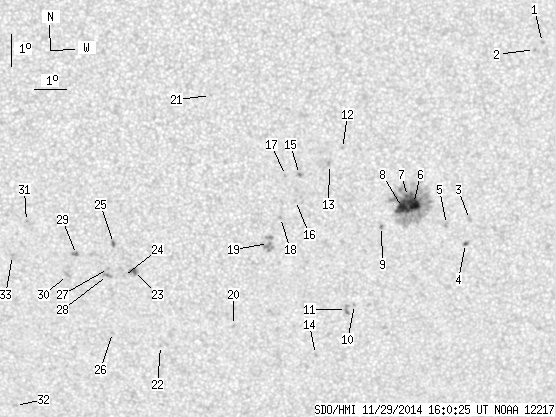

back to the solar disc SDO HMI 2014-11-29 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.71 | -12.38 | 129.86 | 11.93 | 220.97 | 0.3094 | 820.0 | 650.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -12.60 | 129.62 | 11.70 | 219.95 | 0.3095 | 843.0 | 694.2 | |
| 0.00 | 2.65 | 0.00 | 1.41 | -17.83 | 127.86 | 9.93 | 206.89 | 0.3647 | -856.0 | -579.8 | |
| 0.68 | 1.79 | 0.37 | 0.96 | -18.58 | 127.77 | 9.85 | 205.74 | 0.3749 | 903.0 | 821.0 | |
| 0.00 | 2.22 | 0.00 | 1.18 | -17.98 | 127.14 | 9.22 | 205.02 | 0.3618 | 827.0 | 640.7 | |
| 14.44 | 112.22 | 7.62 | 59.18 | -17.32 | 126.07 | 8.15 | 203.21 | 0.3449 | 1215.4 | 428.7 | |
| 2.05 | -6.00 | 1.08 | -6.00 | -17.10 | 125.88 | 7.95 | 202.97 | 0.3403 | 1277.7 | 999999 | |
| 11.28 | -6.00 | 5.95 | -6.00 | -17.44 | 125.73 | 7.81 | 202.20 | 0.3446 | 1151.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -18.03 | 125.10 | 7.18 | 199.94 | 0.3498 | 908.0 | 797.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -20.49 | 124.35 | 6.43 | 195.91 | 0.3840 | 824.0 | 657.9 | |
| 0.00 | 4.36 | 0.00 | 2.34 | -20.65 | 124.10 | 6.18 | 195.22 | 0.3854 | 1033.0 | 792.4 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -15.60 | 123.81 | 5.88 | 198.97 | 0.3050 | 788.0 | 550.4 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -16.10 | 123.42 | 5.49 | 197.30 | 0.3108 | 769.0 | 684.6 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -22.09 | 123.17 | 5.24 | 192.15 | 0.4042 | -855.0 | -585.2 | |
| 0.00 | 2.14 | 0.00 | 1.11 | -16.40 | 122.50 | 4.58 | 194.29 | 0.3115 | 1169.0 | 928.7 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -17.21 | 122.39 | 4.47 | 193.34 | 0.3241 | 812.0 | 728.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -16.43 | 122.07 | 4.14 | 192.96 | 0.3103 | 751.0 | 647.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -17.74 | 121.94 | 4.02 | 191.68 | 0.3310 | 892.0 | 644.4 | |
| 0.00 | 10.43 | 0.00 | 5.50 | -18.55 | 121.58 | 3.66 | 190.20 | 0.3430 | 882.0 | 865.0 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -21.15 | 120.53 | 2.60 | 186.39 | 0.3824 | -534.0 | -514.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.96 | 119.73 | 1.81 | 186.73 | 0.2627 | 845.0 | 601.2 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -21.79 | 118.21 | 0.29 | 180.69 | 0.3904 | -696.0 | -505.6 | |
| 1.45 | 4.02 | 0.77 | 2.12 | -19.43 | 117.37 | -0.56 | 178.50 | 0.3521 | -1019.9 | -852.5 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.59 | 117.05 | -0.87 | 177.67 | 0.3549 | -780.0 | -612.4 | |
| 0.60 | 2.05 | 0.31 | 1.08 | -18.55 | 116.75 | -1.18 | 176.68 | 0.3381 | -932.6 | -734.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -21.37 | 116.69 | -1.23 | 177.00 | 0.3841 | -604.0 | -504.1 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -19.33 | 116.58 | -1.34 | 176.38 | 0.3511 | -988.0 | -724.8 | |
| 0.00 | 3.68 | 0.00 | 1.95 | -19.55 | 116.55 | -1.37 | 176.33 | 0.3548 | -847.0 | -733.3 | |
| 0.43 | 2.82 | 0.23 | 1.49 | -18.89 | 115.59 | -2.34 | 173.56 | 0.3454 | -1134.0 | -891.0 | |
| 0.00 | 2.48 | 0.00 | 1.31 | -19.55 | 115.29 | -2.63 | 173.01 | 0.3567 | -750.0 | -702.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -17.86 | 114.05 | -3.88 | 168.79 | 0.3324 | -880.0 | -714.5 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -23.72 | 113.53 | -4.39 | 170.51 | 0.4272 | -773.0 | -608.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -18.92 | 113.58 | -4.34 | 168.18 | 0.3511 | -911.0 | -686.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
