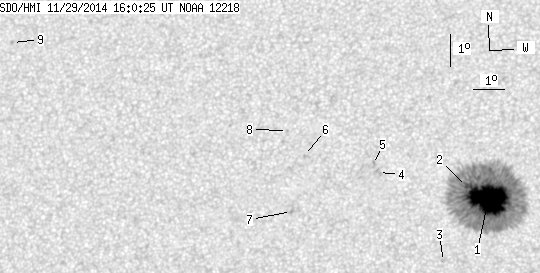

SDO HMI 2014-11-29 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.93 | 418.30 | 39.84 | 216.90 | 16.53 | 110.39 | -7.53 | 25.14 | 0.2962 | -1177.5 | -373.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.67 | 404.97 | 39.71 | 209.83 | 16.48 | 110.59 | -7.33 | 24.74 | 0.2938 | -1491.4 | -413.6 | |
| 0.26 | -1.00 | 0.13 | -1.00 | 16.85 | 109.89 | -8.03 | 26.20 | 0.3043 | -782.3 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 14.56 | 109.27 | -8.66 | 32.00 | 0.2762 | -761.0 | -519.1 | |
| 0.00 | 4.70 | 0.00 | 2.47 | 17.28 | 107.11 | -10.81 | 32.69 | 0.3332 | 763.0 | 656.7 | |
| 0.00 | 2.65 | 0.00 | 1.39 | 17.52 | 106.94 | -10.99 | 32.68 | 0.3381 | 713.0 | 706.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 17.79 | 104.73 | -13.19 | 37.04 | 0.3624 | 796.0 | 661.3 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 16.07 | 104.44 | -13.48 | 40.86 | 0.3441 | 876.0 | 723.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 18.57 | 104.13 | -13.80 | 36.92 | 0.3780 | 782.0 | 561.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 21.28 | 94.66 | -23.26 | 46.72 | 0.5076 | 605.0 | 525.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
