SDO HMI 2014-11-29 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 139.49 | 631.12 | 95.03 | 431.55 | 3.91 | 161.34 | 43.41 | 274.64 | 0.6894 | -203.8 | -123.7 | |
|
previous
or next observation for the same group /

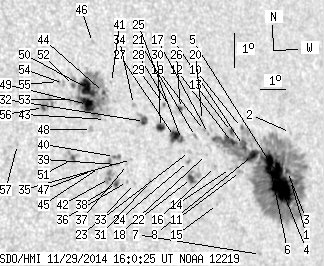

back to the solar disc SDO HMI 2014-11-29 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 408.38 | 0.18 | 288.48 | 3.15 | 164.16 | 46.24 | 273.32 | 0.7247 | -329.0 | -316.9 | |
| 0.00 | 0.77 | 0.00 | 0.55 | 4.57 | 164.26 | 46.34 | 275.28 | 0.7266 | -226.0 | -235.4 | |
| 2.14 | -1.00 | 1.53 | -1.00 | 3.42 | 164.05 | 46.12 | 273.69 | 0.7234 | -248.1 | 999999 | |
| 34.62 | -1.00 | 24.62 | -1.00 | 2.86 | 163.80 | 45.88 | 272.93 | 0.7203 | -1030.0 | 999999 | |
| 16.84 | -1.00 | 11.94 | -1.00 | 3.39 | 163.58 | 45.65 | 273.68 | 0.7177 | -1039.8 | 999999 | |
| 12.65 | -1.00 | 8.92 | -1.00 | 3.66 | 163.30 | 45.37 | 274.07 | 0.7144 | -1096.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.60 | 0.98 | 162.80 | 44.88 | 270.29 | 0.7079 | -634.0 | -525.1 | |
| 8.46 | -1.00 | 5.90 | -1.00 | 3.91 | 162.60 | 44.67 | 274.46 | 0.7059 | -948.0 | 999999 | |
| 5.30 | -1.00 | 3.67 | -1.00 | 4.21 | 162.24 | 44.32 | 274.91 | 0.7017 | -926.4 | 999999 | |
| 0.51 | -1.00 | 0.36 | -1.00 | 4.75 | 162.20 | 44.28 | 275.68 | 0.7016 | 220.5 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.36 | 3.44 | 162.07 | 44.14 | 273.82 | 0.6991 | -758.0 | -657.2 | |
| 1.97 | -1.00 | 1.35 | -1.00 | 4.31 | 161.80 | 43.87 | 275.08 | 0.6962 | -932.5 | 999999 | |
| 1.45 | -1.00 | 1.00 | -1.00 | 4.63 | 161.78 | 43.86 | 275.55 | 0.6962 | -618.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.70 | 3.54 | 161.66 | 43.74 | 273.98 | 0.6941 | -700.0 | -664.9 | |
| 0.00 | 0.94 | 0.00 | 0.64 | 2.48 | 161.07 | 43.15 | 272.47 | 0.6863 | -692.0 | -574.1 | |
| 0.00 | 1.20 | 0.00 | 0.81 | 3.61 | 161.05 | 43.13 | 274.11 | 0.6864 | -792.0 | -689.5 | |
| 0.00 | 0.85 | 0.00 | 0.58 | 4.59 | 160.83 | 42.91 | 275.56 | 0.6842 | -749.0 | -578.1 | |
| 0.00 | 0.60 | 0.00 | 0.40 | 3.97 | 160.71 | 42.78 | 274.66 | 0.6822 | -743.0 | -649.7 | |
| 0.00 | 1.28 | 0.00 | 0.87 | 4.68 | 160.68 | 42.75 | 275.71 | 0.6823 | -697.0 | -642.6 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 4.98 | 160.62 | 42.70 | 276.15 | 0.6818 | -579.0 | -467.5 | |
| 0.00 | 1.71 | 0.00 | 1.15 | 4.51 | 160.30 | 42.38 | 275.49 | 0.6774 | -480.0 | -471.6 | |
| 3.50 | 10.34 | 2.34 | 6.92 | 3.26 | 160.06 | 42.14 | 273.66 | 0.6735 | 791.6 | 262.6 | |
| 0.00 | 1.71 | 0.00 | 1.14 | 4.07 | 160.03 | 42.11 | 274.86 | 0.6736 | 305.0 | 268.2 | |
| 0.00 | 1.62 | 0.00 | 1.08 | 3.77 | 159.97 | 42.05 | 274.42 | 0.6726 | 619.0 | 504.9 | |
| 1.37 | 13.76 | 0.91 | 9.12 | 4.42 | 159.73 | 41.81 | 275.42 | 0.6700 | 627.2 | 465.1 | |
| 1.11 | 2.82 | 0.74 | 1.88 | 5.34 | 159.77 | 41.84 | 276.79 | 0.6712 | 589.5 | 357.4 | |
| 7.09 | -25.00 | 4.70 | -25.00 | 4.52 | 159.46 | 41.54 | 275.58 | 0.6665 | 862.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.62 | 5.41 | 159.33 | 41.41 | 276.93 | 0.6657 | -542.0 | -451.2 | |
| 0.43 | 1.54 | 0.28 | 1.02 | 5.47 | 159.14 | 41.22 | 277.05 | 0.6632 | -663.0 | -588.5 | |
| 4.02 | 6.24 | 2.64 | 4.10 | 4.79 | 158.93 | 41.00 | 276.05 | 0.6598 | 808.7 | 528.2 | |
| 0.00 | 1.62 | 0.00 | 1.06 | 3.20 | 158.44 | 40.51 | 273.65 | 0.6522 | 714.0 | 518.9 | |
| 3.33 | 10.43 | 2.17 | 6.78 | 4.98 | 158.31 | 40.39 | 276.39 | 0.6519 | -854.4 | -657.6 | |
| 0.00 | 1.20 | 0.00 | 0.77 | 3.15 | 157.81 | 39.89 | 273.60 | 0.6439 | 430.0 | 364.8 | |
| 0.00 | 1.71 | 0.00 | 1.11 | 5.49 | 157.92 | 40.00 | 277.23 | 0.6473 | -621.0 | -500.1 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 3.86 | 157.73 | 39.81 | 274.72 | 0.6433 | 294.0 | 230.6 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 3.21 | 157.54 | 39.62 | 273.72 | 0.6404 | 498.0 | 459.4 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 3.71 | 157.57 | 39.65 | 274.50 | 0.6410 | 453.0 | 362.0 | |
| 1.54 | 4.19 | 0.98 | 2.68 | 3.16 | 157.12 | 39.19 | 273.66 | 0.6346 | 728.2 | 583.5 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 3.72 | 157.15 | 39.22 | 274.55 | 0.6353 | 675.0 | 593.8 | |
| 0.43 | 7.44 | 0.27 | 4.75 | 3.96 | 157.08 | 39.16 | 274.93 | 0.6346 | 633.6 | 641.9 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 6.15 | 157.13 | 39.21 | 278.37 | 0.6376 | 414.0 | 303.5 | |
| 0.51 | 7.61 | 0.33 | 4.84 | 3.31 | 156.86 | 38.93 | 273.92 | 0.6312 | 929.8 | 738.3 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 5.06 | 156.81 | 38.89 | 276.69 | 0.6320 | 510.0 | 411.9 | |
| 0.77 | 97.18 | 0.49 | 61.65 | 5.86 | 156.80 | 38.87 | 277.96 | 0.6327 | 544.7 | 276.3 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 3.64 | 156.49 | 38.57 | 274.47 | 0.6264 | 772.0 | 578.4 | |
| 0.00 | 1.20 | 0.00 | 0.76 | 7.35 | 156.52 | 38.59 | 280.37 | 0.6313 | 548.0 | 495.4 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 3.55 | 156.22 | 38.30 | 274.35 | 0.6227 | 754.0 | 708.1 | |
| 0.00 | 2.82 | 0.00 | 1.78 | 4.77 | 156.26 | 38.33 | 276.30 | 0.6242 | 729.0 | 632.5 | |
| 13.59 | -44.00 | 8.59 | -44.00 | 5.51 | 156.16 | 38.24 | 277.50 | 0.6237 | 985.8 | 999999 | |
| 14.44 | -44.00 | 9.14 | -44.00 | 5.98 | 156.20 | 38.27 | 278.26 | 0.6248 | 868.8 | 999999 | |
| 1.45 | 5.56 | 0.91 | 3.48 | 3.92 | 155.53 | 37.60 | 275.00 | 0.6134 | 933.6 | 736.6 | |
| 0.60 | 4.96 | 0.38 | 3.12 | 6.08 | 155.68 | 37.75 | 278.50 | 0.6179 | 901.4 | 551.5 | |
| 0.00 | 2.31 | 0.00 | 1.45 | 5.67 | 155.53 | 37.61 | 277.85 | 0.6153 | 909.0 | 766.2 | |
| 0.00 | 2.05 | 0.00 | 1.28 | 6.14 | 155.31 | 37.38 | 278.67 | 0.6129 | 830.0 | 738.5 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 6.20 | 155.12 | 37.20 | 278.80 | 0.6105 | 715.0 | 642.4 | |
| 1.11 | 11.45 | 0.69 | 7.10 | 5.44 | 154.50 | 36.58 | 277.64 | 0.6009 | 1025.8 | 781.3 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 4.36 | 153.48 | 35.55 | 275.96 | 0.5852 | 711.0 | 522.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
