SDO HMI 2014-11-29 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.16 | 15.39 | 1.98 | 9.71 | 16.38 | 153.05 | 35.68 | 295.54 | 0.6223 | 487.3 | 453.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

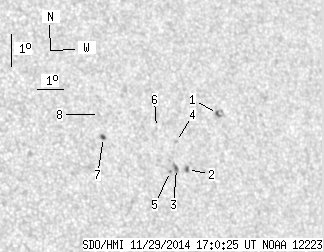

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.68 | 4.96 | 0.44 | 3.22 | 17.18 | 154.76 | 37.39 | 295.84 | 0.6470 | 845.2 | 644.8 | |
| 0.68 | 2.05 | 0.43 | 1.29 | 15.48 | 153.23 | 35.86 | 294.06 | 0.6206 | 787.1 | 625.9 | |
| 0.77 | 2.82 | 0.48 | 1.77 | 15.52 | 152.82 | 35.45 | 294.32 | 0.6156 | 902.2 | 737.1 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 16.34 | 152.99 | 35.62 | 295.50 | 0.6215 | 667.0 | 500.9 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 15.43 | 152.58 | 35.21 | 294.31 | 0.6121 | 907.0 | 836.9 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 16.78 | 152.33 | 34.96 | 296.52 | 0.6154 | 485.0 | 401.9 | |
| 1.03 | 2.39 | 0.63 | 1.46 | 16.49 | 150.30 | 32.92 | 297.27 | 0.5886 | -782.8 | -652.1 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 17.20 | 150.29 | 32.92 | 298.38 | 0.5923 | -868.0 | -737.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
