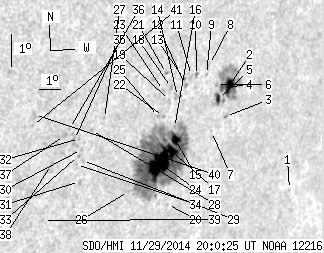

SDO HMI 2014-11-29 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.25 | 366.98 | 50.32 | 288.97 | -13.56 | 165.12 | 49.41 | 251.53 | 0.7805 | 568.8 | 316.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-29 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.63 | -15.15 | 171.67 | 55.96 | 251.25 | 0.8468 | 575.0 | 503.8 | |
| 10.08 | 59.40 | 8.30 | 48.80 | -11.91 | 167.48 | 51.77 | 254.19 | 0.8011 | 700.8 | 224.6 | |
| 0.00 | 1.62 | 0.00 | 1.34 | -12.85 | 167.55 | 51.84 | 253.05 | 0.8036 | 559.0 | 465.5 | |
| 1.88 | -2.00 | 1.54 | -2.00 | -11.96 | 167.15 | 51.44 | 254.05 | 0.7979 | 785.8 | 999999 | |
| 2.91 | -2.00 | 2.37 | -2.00 | -12.30 | 167.05 | 51.34 | 253.61 | 0.7975 | 808.5 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.11 | -11.87 | 166.84 | 51.13 | 254.09 | 0.7945 | 719.0 | 637.7 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -13.30 | 166.99 | 51.28 | 252.36 | 0.7990 | 367.0 | 377.0 | |
| 0.00 | 1.11 | 0.00 | 0.89 | -11.25 | 166.35 | 50.63 | 254.75 | 0.7882 | 224.0 | 206.0 | |
| 0.00 | 0.94 | 0.00 | 0.75 | -11.55 | 166.28 | 50.56 | 254.35 | 0.7881 | 417.0 | 392.8 | |
| 0.00 | 1.97 | 0.00 | 1.56 | -11.58 | 165.81 | 50.09 | 254.22 | 0.7832 | 677.0 | 520.1 | |
| 0.00 | 2.39 | 0.00 | 1.89 | -11.57 | 165.57 | 49.86 | 254.16 | 0.7808 | 443.0 | 445.6 | |
| 0.00 | 1.37 | 0.00 | 1.08 | -11.87 | 165.36 | 49.65 | 253.74 | 0.7792 | 580.0 | 559.2 | |
| 0.00 | 1.28 | 0.00 | 1.01 | -11.69 | 165.27 | 49.56 | 253.95 | 0.7778 | 690.0 | 512.2 | |
| 0.00 | 4.02 | 0.00 | 3.14 | -12.20 | 165.07 | 49.36 | 253.25 | 0.7768 | 583.0 | 517.0 | |
| 6.67 | 255.10 | 5.28 | 200.32 | -13.52 | 165.33 | 49.61 | 251.66 | 0.7825 | 663.5 | 404.8 | |
| 0.00 | 1.11 | 0.00 | 0.88 | -13.15 | 165.18 | 49.47 | 252.08 | 0.7801 | 438.0 | 344.1 | |
| 9.23 | -15.00 | 7.31 | -15.00 | -13.88 | 165.24 | 49.53 | 251.18 | 0.7825 | 676.0 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.46 | -11.92 | 164.72 | 49.01 | 253.51 | 0.7725 | 567.0 | 464.4 | |
| 0.00 | 0.68 | 0.00 | 0.53 | -12.32 | 164.73 | 49.01 | 253.01 | 0.7735 | 556.0 | 483.5 | |
| 0.00 | 0.77 | 0.00 | 0.62 | -15.51 | 165.56 | 49.85 | 249.25 | 0.7899 | 566.0 | 424.3 | |
| 0.00 | 1.11 | 0.00 | 0.86 | -11.49 | 164.39 | 48.68 | 253.98 | 0.7680 | -449.0 | -345.8 | |
| 0.00 | 1.20 | 0.00 | 0.93 | -12.80 | 164.57 | 48.86 | 252.36 | 0.7729 | 349.0 | 458.6 | |
| 0.00 | 1.45 | 0.00 | 1.12 | -12.01 | 164.37 | 48.66 | 253.31 | 0.7690 | 380.0 | 305.8 | |
| 32.48 | -15.00 | 25.52 | -15.00 | -14.24 | 164.78 | 49.07 | 250.60 | 0.7787 | 1128.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.12 | -12.80 | 164.34 | 48.63 | 252.30 | 0.7705 | 342.0 | 273.4 | |
| 0.00 | 0.94 | 0.00 | 0.72 | -15.08 | 163.60 | 47.88 | 249.19 | 0.7686 | 381.0 | 335.8 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -12.82 | 161.91 | 46.20 | 251.57 | 0.7442 | -377.0 | -316.1 | |
| 0.00 | 1.37 | 0.00 | 1.00 | -13.18 | 161.43 | 45.72 | 250.95 | 0.7398 | -437.0 | -378.4 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -14.09 | 161.26 | 45.55 | 249.69 | 0.7406 | -377.0 | -323.5 | |
| 0.00 | 1.28 | 0.00 | 0.94 | -13.76 | 161.13 | 45.42 | 250.10 | 0.7382 | -267.0 | -316.5 | |
| 0.00 | 1.71 | 0.00 | 1.26 | -14.74 | 161.30 | 45.59 | 248.87 | 0.7430 | -409.0 | -377.2 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -13.42 | 160.97 | 45.25 | 250.49 | 0.7353 | -471.0 | -417.6 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -13.94 | 161.05 | 45.34 | 249.83 | 0.7378 | -354.0 | -360.0 | |
| 0.00 | 1.11 | 0.00 | 0.81 | -14.21 | 161.03 | 45.32 | 249.46 | 0.7384 | -601.0 | -459.0 | |
| 0.00 | 5.30 | 0.00 | 3.84 | -13.45 | 160.76 | 45.04 | 250.38 | 0.7330 | -671.0 | -557.1 | |
| 0.00 | 1.03 | 0.00 | 0.74 | -13.11 | 160.46 | 44.75 | 250.73 | 0.7287 | -541.0 | -470.1 | |
| 0.00 | 3.33 | 0.00 | 2.40 | -13.32 | 160.29 | 44.58 | 250.40 | 0.7274 | -205.0 | -293.2 | |
| 0.00 | 1.71 | 0.00 | 1.23 | -14.20 | 159.95 | 44.24 | 249.10 | 0.7263 | -458.0 | -364.0 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -15.92 | 160.06 | 44.35 | 246.87 | 0.7333 | -480.0 | -371.4 | |
| 0.00 | 2.73 | 0.00 | 1.92 | -12.66 | 158.88 | 43.17 | 250.81 | 0.7092 | -553.0 | -480.9 | |
| 0.00 | 0.51 | 0.00 | 0.36 | -12.99 | 158.87 | 43.16 | 250.34 | 0.7101 | -409.0 | -406.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
