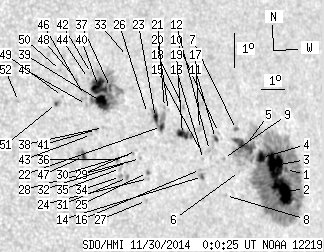

SDO HMI 2014-11-30 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.50 | 545.20 | 97.55 | 405.01 | 3.82 | 161.50 | 48.00 | 274.27 | 0.7450 | -141.8 | -159.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.37 | 372.78 | 1.06 | 286.54 | 3.35 | 163.93 | 50.42 | 273.49 | 0.7732 | -247.1 | -302.9 | |
| 31.63 | -1.00 | 24.51 | -1.00 | 2.73 | 163.79 | 50.29 | 272.69 | 0.7716 | -844.0 | 999999 | |
| 27.87 | -1.00 | 21.45 | -1.00 | 3.48 | 163.42 | 49.92 | 273.67 | 0.7676 | -908.5 | 999999 | |
| 6.75 | -1.00 | 5.13 | -1.00 | 3.73 | 162.85 | 49.34 | 274.01 | 0.7612 | -956.2 | 999999 | |
| 14.45 | -1.00 | 10.83 | -1.00 | 4.06 | 162.10 | 48.60 | 274.49 | 0.7529 | -808.4 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 3.33 | 161.82 | 48.32 | 273.52 | 0.7493 | -723.0 | -630.0 | |
| 0.68 | 1.88 | 0.51 | 1.40 | 4.57 | 161.79 | 48.28 | 275.19 | 0.7495 | -555.8 | -488.0 | |
| 0.00 | 1.03 | 0.00 | 0.75 | 2.62 | 161.16 | 47.65 | 272.60 | 0.7414 | -559.0 | -500.8 | |
| 0.00 | 1.37 | 0.00 | 1.01 | 3.72 | 161.14 | 47.63 | 274.08 | 0.7415 | -763.0 | -660.2 | |
| 0.00 | 0.43 | 0.00 | 0.31 | 4.49 | 160.98 | 47.48 | 275.14 | 0.7400 | -457.0 | -428.8 | |
| 1.37 | 4.19 | 1.00 | 3.06 | 4.32 | 160.83 | 47.33 | 274.91 | 0.7382 | -701.9 | -647.7 | |
| 0.00 | 1.11 | 0.00 | 0.81 | 3.97 | 160.54 | 47.04 | 274.45 | 0.7346 | -367.0 | -347.2 | |
| 0.00 | 0.60 | 0.00 | 0.43 | 3.70 | 160.26 | 46.76 | 274.10 | 0.7312 | 510.0 | 394.0 | |
| 1.03 | 2.65 | 0.74 | 1.91 | 3.20 | 160.18 | 46.68 | 273.41 | 0.7301 | 602.6 | 511.7 | |
| 0.00 | 0.77 | 0.00 | 0.56 | 3.94 | 160.19 | 46.69 | 274.43 | 0.7304 | 282.0 | 209.6 | |
| 0.00 | 0.94 | 0.00 | 0.68 | 3.41 | 160.11 | 46.61 | 273.70 | 0.7292 | 552.0 | 404.6 | |
| 0.00 | 2.39 | 0.00 | 1.73 | 4.59 | 160.16 | 46.65 | 275.33 | 0.7304 | -246.0 | -171.3 | |
| 0.00 | 1.54 | 0.00 | 1.10 | 5.29 | 159.53 | 46.03 | 276.33 | 0.7234 | 385.0 | 308.4 | |
| 6.33 | 10.94 | 4.51 | 7.81 | 4.46 | 159.41 | 45.91 | 275.19 | 0.7214 | 788.9 | 443.9 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 5.18 | 158.88 | 45.38 | 276.23 | 0.7154 | 502.0 | 451.3 | |
| 0.00 | 1.11 | 0.00 | 0.78 | 5.27 | 158.72 | 45.22 | 276.38 | 0.7135 | 217.0 | 159.7 | |
| 2.65 | 19.66 | 1.86 | 13.78 | 4.71 | 158.54 | 45.04 | 275.60 | 0.7109 | 650.0 | -145.3 | |
| 3.16 | -22.00 | 2.21 | -22.00 | 4.98 | 158.31 | 44.81 | 276.00 | 0.7083 | -659.5 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.59 | 3.17 | 157.89 | 44.39 | 273.47 | 0.7021 | 506.0 | 423.5 | |
| 0.51 | 1.71 | 0.36 | 1.19 | 3.35 | 157.86 | 44.35 | 273.72 | 0.7017 | 521.7 | 425.8 | |
| 0.00 | 0.51 | 0.00 | 0.36 | 5.10 | 157.99 | 44.48 | 276.21 | 0.7044 | -418.0 | -426.0 | |
| 0.00 | 0.94 | 0.00 | 0.65 | 2.52 | 157.77 | 44.27 | 272.54 | 0.7004 | 543.0 | 460.9 | |
| 0.00 | 1.03 | 0.00 | 0.71 | 3.77 | 157.59 | 44.09 | 274.34 | 0.6986 | 482.0 | 405.8 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 4.01 | 157.44 | 43.94 | 274.69 | 0.6969 | 393.0 | 317.4 | |
| 0.00 | 0.94 | 0.00 | 0.65 | 3.92 | 157.27 | 43.77 | 274.58 | 0.6947 | 518.0 | 472.6 | |
| 0.00 | 1.97 | 0.00 | 1.34 | 3.21 | 157.02 | 43.52 | 273.57 | 0.6912 | 605.0 | 478.0 | |
| 0.00 | 1.20 | 0.00 | 0.82 | 3.66 | 157.05 | 43.55 | 274.21 | 0.6918 | 644.0 | 538.9 | |
| 0.00 | 0.68 | 0.00 | 0.47 | 6.80 | 157.33 | 43.83 | 278.71 | 0.6980 | 337.0 | 243.1 | |
| 0.00 | 1.80 | 0.00 | 1.22 | 3.25 | 156.74 | 43.24 | 273.63 | 0.6876 | 766.0 | 654.9 | |
| 0.00 | 1.71 | 0.00 | 1.16 | 3.48 | 156.75 | 43.25 | 273.97 | 0.6879 | 739.0 | 591.4 | |
| 0.34 | 1.37 | 0.23 | 0.93 | 3.75 | 156.61 | 43.10 | 274.37 | 0.6862 | 780.2 | 708.3 | |
| 1.45 | 80.86 | 0.99 | 54.73 | 5.89 | 156.53 | 43.03 | 277.50 | 0.6870 | 355.7 | 206.1 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 4.71 | 156.15 | 42.64 | 275.81 | 0.6810 | 714.0 | 522.0 | |
| 13.42 | -37.00 | 9.06 | -37.00 | 5.45 | 156.17 | 42.66 | 276.90 | 0.6819 | 847.3 | 999999 | |
| 16.24 | -37.00 | 10.95 | -37.00 | 5.93 | 156.05 | 42.55 | 277.61 | 0.6809 | 832.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.86 | 4.65 | 155.86 | 42.36 | 275.75 | 0.6773 | 754.0 | 622.4 | |
| 0.00 | 1.62 | 0.00 | 1.09 | 6.32 | 155.81 | 42.30 | 278.22 | 0.6783 | 627.0 | 547.7 | |
| 0.00 | 0.85 | 0.00 | 0.57 | 4.51 | 155.65 | 42.14 | 275.56 | 0.6744 | 768.0 | 642.9 | |
| 0.00 | 0.77 | 0.00 | 0.52 | 6.17 | 155.67 | 42.17 | 278.02 | 0.6764 | 718.0 | 644.4 | |
| 0.00 | 1.20 | 0.00 | 0.80 | 5.40 | 155.52 | 42.01 | 276.89 | 0.6736 | 659.0 | 569.2 | |
| 0.00 | 5.04 | 0.00 | 3.37 | 5.67 | 155.46 | 41.96 | 277.30 | 0.6731 | 454.0 | 692.2 | |
| 2.31 | 6.67 | 1.53 | 4.43 | 3.86 | 155.28 | 41.78 | 274.62 | 0.6693 | 836.2 | 683.5 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 6.15 | 155.19 | 41.68 | 278.05 | 0.6701 | 702.0 | 654.6 | |
| 0.00 | 0.68 | 0.00 | 0.45 | 5.65 | 154.58 | 41.08 | 277.38 | 0.6617 | 586.0 | 539.5 | |
| 0.00 | 0.68 | 0.00 | 0.45 | 6.42 | 154.58 | 41.07 | 278.55 | 0.6626 | 621.0 | 472.0 | |
| 0.94 | 2.99 | 0.62 | 1.96 | 5.44 | 154.33 | 40.83 | 277.10 | 0.6582 | 843.2 | 760.8 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 5.52 | 152.86 | 39.35 | 277.42 | 0.6388 | 717.0 | 632.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
