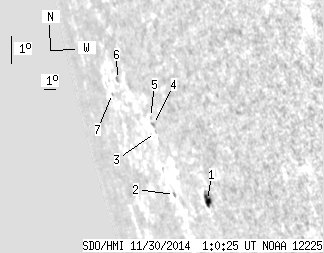

SDO HMI 2014-11-30 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.96 | 16.24 | 7.67 | 28.70 | -15.24 | 40.18 | -72.77 | 106.25 | 0.9602 | 247.1 | 123.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.96 | 8.89 | 7.67 | 13.73 | -16.47 | 42.76 | -70.19 | 107.78 | 0.9489 | 369.0 | 295.6 | |
| 0.00 | 1.54 | 0.00 | 2.83 | -16.34 | 39.57 | -73.38 | 107.30 | 0.9643 | 80.0 | 65.3 | |
| 0.00 | 0.77 | 0.00 | 1.42 | -14.44 | 39.29 | -73.66 | 105.30 | 0.9647 | 432.0 | 418.0 | |
| 0.00 | 1.80 | 0.00 | 3.33 | -14.19 | 39.29 | -73.66 | 105.04 | 0.9646 | 304.0 | 257.7 | |
| 0.00 | 0.51 | 0.00 | 0.96 | -13.98 | 39.14 | -73.81 | 104.81 | 0.9651 | 216.0 | 157.0 | |
| 0.00 | 1.88 | 0.00 | 4.28 | -12.87 | 36.14 | -76.81 | 103.44 | 0.9769 | -278.0 | -159.9 | |
| 0.00 | 0.85 | 0.00 | 2.15 | -13.32 | 34.95 | -78.01 | 103.82 | 0.9811 | -206.0 | -140.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
