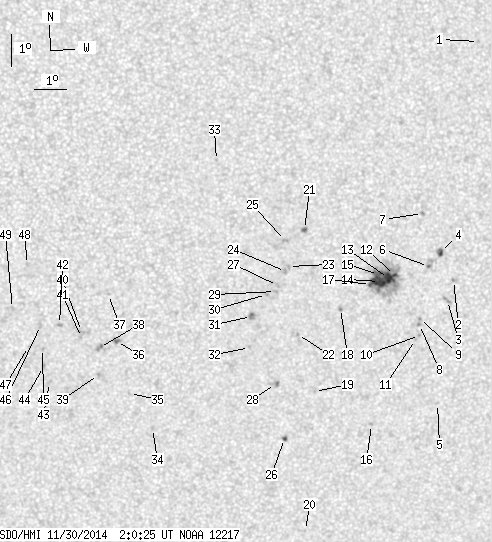

SDO HMI 2014-11-30 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.06 | 152.18 | 17.20 | 81.53 | -17.90 | 123.78 | 11.37 | 209.69 | 0.3814 | 310.0 | 183.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.54 | -10.05 | 128.42 | 16.02 | 234.83 | 0.3339 | 768.0 | 593.4 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -17.36 | 128.13 | 15.73 | 219.41 | 0.4092 | 747.0 | 378.6 | |
| 0.00 | 3.51 | 0.00 | 1.91 | -17.98 | 127.99 | 15.59 | 218.17 | 0.4153 | 816.0 | 681.5 | |
| 2.31 | 4.96 | 1.24 | 2.67 | -16.48 | 127.64 | 15.24 | 220.00 | 0.3937 | -1014.4 | -735.2 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -21.24 | 127.99 | 15.58 | 213.50 | 0.4555 | 723.0 | 542.2 | |
| 0.43 | 3.68 | 0.23 | 1.98 | -16.92 | 127.29 | 14.89 | 218.63 | 0.3954 | -770.4 | -681.9 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -15.27 | 126.98 | 14.57 | 220.90 | 0.3723 | -861.0 | -702.9 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.73 | 127.15 | 14.75 | 215.55 | 0.4165 | 982.0 | 815.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -18.54 | 127.14 | 14.73 | 215.80 | 0.4140 | 739.0 | 697.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -19.07 | 127.18 | 14.78 | 215.10 | 0.4212 | 837.0 | 668.3 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -19.20 | 127.07 | 14.66 | 214.70 | 0.4217 | 759.0 | 619.2 | |
| 1.62 | 70.96 | 0.87 | 38.10 | -17.19 | 126.23 | 13.82 | 216.17 | 0.3884 | 817.7 | 413.5 | |
| 8.29 | -12.00 | 4.45 | -12.00 | -17.28 | 126.04 | 13.64 | 215.67 | 0.3878 | 1047.0 | 999999 | |
| 10.94 | -12.00 | 5.87 | -12.00 | -17.37 | 125.76 | 13.36 | 214.97 | 0.3864 | 1080.4 | 999999 | |
| 4.62 | -12.00 | 2.47 | -12.00 | -17.16 | 125.71 | 13.31 | 215.22 | 0.3831 | 1230.8 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -21.90 | 125.88 | 13.48 | 209.07 | 0.4470 | 815.0 | 684.7 | |
| 1.28 | -12.00 | 0.69 | -12.00 | -17.47 | 125.48 | 13.08 | 214.27 | 0.3850 | 889.5 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -18.21 | 124.58 | 12.18 | 211.33 | 0.3870 | 952.0 | 762.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -20.83 | 123.94 | 11.53 | 206.68 | 0.4181 | 636.0 | 516.4 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -25.34 | 124.03 | 11.63 | 202.32 | 0.4817 | 676.0 | 563.0 | |
| 0.94 | 2.74 | 0.50 | 1.44 | -15.75 | 123.29 | 10.89 | 212.24 | 0.3424 | 969.5 | 786.4 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -19.02 | 123.27 | 10.86 | 207.48 | 0.3878 | 719.0 | 612.4 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -16.89 | 122.85 | 10.45 | 209.45 | 0.3546 | 902.0 | 742.7 | |
| 0.00 | 2.14 | 0.00 | 1.13 | -17.05 | 122.77 | 10.36 | 209.02 | 0.3561 | 1026.0 | 862.8 | |
| 0.00 | 2.31 | 0.00 | 1.22 | -16.08 | 122.72 | 10.31 | 210.33 | 0.3421 | 1050.0 | 853.3 | |
| 1.03 | 2.14 | 0.56 | 1.17 | -22.33 | 123.08 | 10.68 | 203.39 | 0.4335 | -860.5 | -736.8 | |
| 0.00 | 2.22 | 0.00 | 1.18 | -17.48 | 122.54 | 10.14 | 207.89 | 0.3605 | 768.0 | 673.0 | |
| 0.00 | 3.93 | 0.00 | 2.13 | -20.57 | 122.66 | 10.26 | 204.39 | 0.4056 | 788.0 | 735.9 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -17.67 | 122.49 | 10.08 | 207.51 | 0.3627 | 791.0 | 592.1 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -17.76 | 122.21 | 9.80 | 206.74 | 0.3620 | 820.0 | 701.8 | |
| 0.00 | 3.85 | 0.00 | 2.05 | -18.45 | 121.77 | 9.37 | 204.87 | 0.3689 | 1112.0 | 945.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.42 | 121.76 | 9.36 | 203.71 | 0.3831 | 833.0 | 693.5 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -13.62 | 120.47 | 8.07 | 208.37 | 0.2884 | 700.0 | 485.0 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -21.99 | 118.80 | 6.39 | 194.80 | 0.4061 | -649.0 | -532.7 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -20.87 | 118.02 | 5.61 | 193.78 | 0.3856 | -677.0 | -526.4 | |
| 0.60 | 3.42 | 0.32 | 1.81 | -19.22 | 117.55 | 5.15 | 193.76 | 0.3578 | -988.4 | -783.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -17.74 | 117.26 | 4.86 | 194.07 | 0.3332 | -799.0 | -628.9 | |
| 0.00 | 3.33 | 0.00 | 1.77 | -19.41 | 117.02 | 4.62 | 192.28 | 0.3588 | -931.0 | -833.4 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -20.26 | 117.02 | 4.61 | 191.74 | 0.3724 | -983.0 | -784.6 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -18.90 | 116.45 | 4.04 | 191.07 | 0.3488 | -867.0 | -735.3 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -19.09 | 116.45 | 4.05 | 190.97 | 0.3519 | -862.0 | -669.7 | |
| 0.00 | 2.05 | 0.00 | 1.08 | -18.68 | 115.75 | 3.35 | 189.32 | 0.3432 | -956.0 | -829.8 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -20.51 | 115.47 | 3.07 | 187.78 | 0.3722 | -803.0 | -660.4 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -20.00 | 115.27 | 2.87 | 187.47 | 0.3635 | -861.0 | -730.7 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -19.43 | 115.23 | 2.83 | 187.59 | 0.3542 | -829.0 | -770.4 | |
| 0.00 | 2.48 | 0.00 | 1.31 | -18.71 | 115.16 | 2.76 | 187.68 | 0.3423 | -839.0 | -691.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.37 | 114.79 | 2.39 | 186.44 | 0.3523 | -758.0 | -640.9 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -16.80 | 114.73 | 2.33 | 187.23 | 0.3100 | -838.0 | -528.2 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -18.17 | 114.28 | 1.88 | 185.40 | 0.3318 | -920.0 | -678.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
