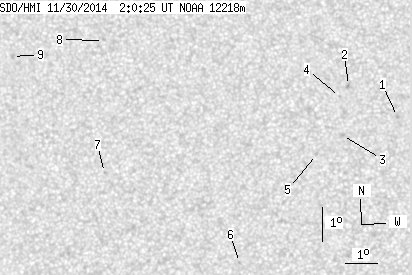

SDO HMI 2014-11-30 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.46 | 0.00 | 5.93 | -4.64 | 97.11 | -15.29 | 111.59 | 0.2836 | 277.0 | 304.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.78 | -4.43 | 101.51 | -10.89 | 116.73 | 0.2119 | 806.0 | 681.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -3.52 | 100.04 | -12.36 | 110.26 | 0.2288 | 872.0 | 811.5 | |
| 0.00 | 1.88 | 0.00 | 0.96 | -5.00 | 99.84 | -12.57 | 115.77 | 0.2418 | 759.0 | 641.3 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -3.85 | 99.77 | -12.64 | 111.17 | 0.2352 | 815.0 | 595.9 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -5.57 | 99.03 | -13.37 | 116.43 | 0.2582 | 805.0 | 613.5 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -8.81 | 96.55 | -15.86 | 122.21 | 0.3206 | 632.0 | 476.1 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -6.13 | 92.43 | -19.97 | 110.00 | 0.3630 | -686.0 | -462.4 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -2.21 | 92.51 | -19.90 | 99.27 | 0.3461 | -709.0 | -469.5 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -2.70 | 89.61 | -22.80 | 99.35 | 0.3940 | -801.0 | -620.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
