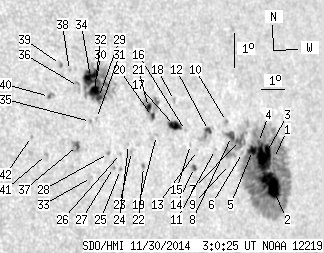

SDO HMI 2014-11-30 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.58 | 507.81 | 93.09 | 390.13 | 3.77 | 161.54 | 49.69 | 274.14 | 0.7642 | -244.4 | -141.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 302.67 | 0.90 | 242.11 | 3.43 | 163.91 | 52.06 | 273.56 | 0.7910 | -183.4 | -241.3 | |
| 33.86 | -1.00 | 27.16 | -1.00 | 2.67 | 163.71 | 51.86 | 272.59 | 0.7887 | -869.6 | 999999 | |
| 29.07 | -1.00 | 23.18 | -1.00 | 3.47 | 163.43 | 51.58 | 273.62 | 0.7859 | -886.9 | 999999 | |
| 0.26 | -1.00 | 0.20 | -1.00 | 3.92 | 163.23 | 51.38 | 274.20 | 0.7838 | -701.0 | 999999 | |
| 6.33 | -1.00 | 4.99 | -1.00 | 3.69 | 162.93 | 51.07 | 273.91 | 0.7804 | -970.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.13 | 3.63 | 162.45 | 50.59 | 273.86 | 0.7752 | -766.0 | -658.1 | |
| 4.10 | 43.95 | 3.20 | 34.11 | 3.99 | 162.34 | 50.48 | 274.33 | 0.7741 | -860.0 | -561.3 | |
| 4.28 | -7.00 | 3.30 | -7.00 | 4.11 | 161.98 | 50.12 | 274.51 | 0.7701 | -738.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.59 | 3.29 | 161.82 | 49.96 | 273.44 | 0.7681 | -646.0 | -533.8 | |
| 0.00 | 1.88 | 0.00 | 1.45 | 4.56 | 161.79 | 49.93 | 275.10 | 0.7682 | -592.0 | -516.7 | |
| 0.00 | 0.68 | 0.00 | 0.52 | 3.74 | 161.21 | 49.35 | 274.05 | 0.7613 | -719.0 | -641.4 | |
| 2.39 | 8.64 | 1.81 | 6.52 | 4.31 | 160.94 | 49.08 | 274.81 | 0.7585 | -774.9 | -624.9 | |
| 0.00 | 0.60 | 0.00 | 0.45 | 3.72 | 160.39 | 48.53 | 274.06 | 0.7520 | 315.0 | 295.3 | |
| 1.45 | 2.65 | 1.08 | 1.98 | 3.22 | 160.22 | 48.36 | 273.40 | 0.7499 | 530.1 | 404.3 | |
| 0.00 | 0.86 | 0.00 | 0.64 | 3.90 | 160.09 | 48.23 | 274.32 | 0.7486 | 336.0 | 251.9 | |
| 0.00 | 0.86 | 0.00 | 0.63 | 4.32 | 159.90 | 48.05 | 274.89 | 0.7466 | 252.0 | 183.0 | |
| 7.78 | 10.35 | 5.72 | 7.60 | 4.48 | 159.43 | 47.57 | 275.13 | 0.7412 | 677.9 | 388.9 | |
| 0.00 | 2.14 | 0.00 | 1.57 | 5.22 | 159.50 | 47.64 | 276.13 | 0.7425 | 517.0 | 341.3 | |
| 0.00 | 0.94 | 0.00 | 0.68 | 4.19 | 158.61 | 46.76 | 274.79 | 0.7314 | -172.0 | -157.8 | |
| 1.80 | 17.96 | 1.30 | 12.97 | 4.76 | 158.49 | 46.63 | 275.58 | 0.7303 | 501.3 | -144.6 | |
| 2.99 | -20.00 | 2.16 | -20.00 | 5.03 | 158.34 | 46.48 | 275.96 | 0.7287 | -747.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.04 | 3.28 | 157.99 | 46.13 | 273.57 | 0.7235 | 543.0 | 446.1 | |
| 0.00 | 2.39 | 0.00 | 1.70 | 3.73 | 157.50 | 45.65 | 274.22 | 0.7178 | 601.0 | 458.2 | |
| 0.00 | 0.68 | 0.00 | 0.48 | 3.94 | 157.39 | 45.54 | 274.52 | 0.7166 | 509.0 | 486.0 | |
| 0.00 | 1.28 | 0.00 | 0.90 | 3.20 | 157.00 | 45.15 | 273.51 | 0.7115 | 548.0 | 454.0 | |
| 0.00 | 1.03 | 0.00 | 0.72 | 3.68 | 157.03 | 45.18 | 274.17 | 0.7121 | 603.0 | 502.3 | |
| 0.00 | 1.28 | 0.00 | 0.90 | 3.27 | 156.71 | 44.86 | 273.61 | 0.7080 | 744.0 | 625.1 | |
| 0.00 | 1.62 | 0.00 | 1.13 | 3.69 | 156.53 | 44.67 | 274.21 | 0.7059 | 791.0 | 703.7 | |
| 2.48 | 78.32 | 1.72 | 54.43 | 5.35 | 156.25 | 44.39 | 276.60 | 0.7035 | 687.9 | 256.6 | |
| 1.54 | -29.00 | 1.07 | -29.00 | 5.86 | 156.21 | 44.36 | 277.32 | 0.7035 | 577.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.71 | 4.73 | 156.11 | 44.25 | 275.73 | 0.7013 | 658.0 | 527.8 | |
| 7.95 | -29.00 | 5.51 | -29.00 | 5.53 | 156.10 | 44.24 | 276.87 | 0.7018 | 868.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.59 | 2.98 | 155.78 | 43.93 | 273.24 | 0.6963 | 581.0 | 494.9 | |
| 12.06 | -29.00 | 8.34 | -29.00 | 5.95 | 155.97 | 44.12 | 277.48 | 0.7007 | 896.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.00 | 4.64 | 155.85 | 44.00 | 275.62 | 0.6980 | 809.0 | 692.3 | |
| 0.00 | 3.08 | 0.00 | 2.11 | 5.69 | 155.45 | 43.59 | 277.17 | 0.6939 | 530.0 | 696.4 | |
| 1.62 | 7.61 | 1.11 | 5.19 | 3.94 | 155.26 | 43.41 | 274.65 | 0.6902 | 880.9 | 762.8 | |
| 0.00 | 1.28 | 0.00 | 0.88 | 6.17 | 155.13 | 43.27 | 277.90 | 0.6904 | 505.0 | 501.3 | |
| 0.00 | 1.80 | 0.00 | 1.22 | 6.35 | 154.78 | 42.92 | 278.21 | 0.6862 | 720.0 | 625.1 | |
| 0.51 | 3.25 | 0.34 | 2.19 | 5.41 | 154.24 | 42.38 | 276.89 | 0.6783 | 800.0 | 730.9 | |
| 0.00 | 1.80 | 0.00 | 1.20 | 3.69 | 153.99 | 42.14 | 274.37 | 0.6738 | 723.0 | 589.1 | |
| 0.00 | 1.20 | 0.00 | 0.79 | 4.23 | 153.43 | 41.57 | 275.22 | 0.6668 | 523.0 | 489.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
