SDO HMI 2014-11-30 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.92 | 333.39 | 49.07 | 289.71 | -13.60 | 165.15 | 53.84 | 252.63 | 0.8243 | 431.2 | 273.3 | |
|
previous
or next observation for the same group /

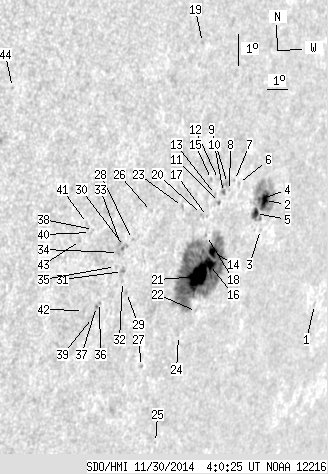

back to the solar disc SDO HMI 2014-11-30 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.53 | -15.27 | 171.74 | 60.43 | 252.06 | 0.8839 | 493.0 | 418.1 | |
| 7.35 | 61.22 | 6.75 | 56.04 | -12.02 | 167.53 | 56.23 | 255.00 | 0.8438 | 645.3 | 234.4 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -12.90 | 167.61 | 56.30 | 253.98 | 0.8458 | 278.0 | 322.0 | |
| 0.26 | -2.00 | 0.23 | -2.00 | -11.98 | 167.25 | 55.94 | 254.99 | 0.8412 | 775.7 | 999999 | |
| 4.36 | -2.00 | 3.97 | -2.00 | -12.41 | 167.17 | 55.86 | 254.48 | 0.8411 | 718.7 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.20 | -11.48 | 165.98 | 54.67 | 255.35 | 0.8285 | 499.0 | 344.8 | |
| 0.00 | 0.86 | 0.00 | 0.75 | -11.38 | 165.74 | 54.43 | 255.42 | 0.8262 | 528.0 | 463.7 | |
| 0.00 | 0.51 | 0.00 | 0.45 | -11.68 | 165.57 | 54.26 | 255.03 | 0.8250 | 350.0 | 311.7 | |
| 0.00 | 2.14 | 0.00 | 1.85 | -11.47 | 165.40 | 54.09 | 255.25 | 0.8230 | 568.0 | 517.4 | |
| 0.60 | 3.85 | 0.52 | 3.33 | -11.74 | 165.27 | 53.96 | 254.90 | 0.8222 | 672.7 | 496.6 | |
| 0.00 | 1.28 | 0.00 | 1.11 | -12.04 | 165.15 | 53.84 | 254.51 | 0.8216 | 596.0 | 528.1 | |
| 0.00 | 1.20 | 0.00 | 1.03 | -11.34 | 164.90 | 53.59 | 255.31 | 0.8180 | 229.0 | 273.9 | |
| 0.00 | 0.94 | 0.00 | 0.81 | -11.79 | 164.87 | 53.56 | 254.76 | 0.8185 | 434.0 | 371.1 | |
| 5.04 | 228.30 | 4.40 | 197.39 | -13.53 | 165.25 | 53.94 | 252.75 | 0.8252 | 573.6 | 361.3 | |
| 0.00 | 0.94 | 0.00 | 0.80 | -11.33 | 164.54 | 53.23 | 255.25 | 0.8145 | -499.0 | -303.4 | |
| 8.04 | -14.00 | 7.02 | -14.00 | -13.93 | 165.23 | 53.92 | 252.27 | 0.8258 | 561.5 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.44 | -12.46 | 164.66 | 53.35 | 253.91 | 0.8176 | 630.0 | 525.5 | |
| 0.00 | 0.51 | 0.00 | 0.44 | -13.04 | 164.78 | 53.47 | 253.24 | 0.8198 | 555.0 | 491.7 | |
| 0.00 | 1.28 | 0.00 | 1.04 | -7.19 | 163.22 | 51.91 | 260.12 | 0.7948 | -59.0 | -101.9 | |
| 0.00 | 0.86 | 0.00 | 0.73 | -12.39 | 164.33 | 53.02 | 253.92 | 0.8143 | 523.0 | 398.0 | |
| 30.27 | -14.00 | 26.18 | -14.00 | -14.29 | 164.78 | 53.47 | 251.74 | 0.8223 | 1029.7 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.37 | -15.37 | 165.07 | 53.76 | 250.52 | 0.8271 | 569.0 | 536.8 | |
| 0.00 | 1.54 | 0.00 | 1.27 | -12.13 | 163.31 | 52.00 | 254.01 | 0.8037 | -222.0 | -145.6 | |
| 0.00 | 0.68 | 0.00 | 0.59 | -16.10 | 164.41 | 53.10 | 249.49 | 0.8226 | 439.0 | 385.0 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -19.45 | 164.65 | 53.34 | 245.62 | 0.8327 | -443.0 | -377.7 | |
| 0.00 | 1.11 | 0.00 | 0.89 | -12.26 | 161.84 | 50.53 | 253.51 | 0.7890 | -223.0 | -239.4 | |
| 0.00 | 1.28 | 0.00 | 1.08 | -17.04 | 162.89 | 51.59 | 247.95 | 0.8105 | -507.0 | -399.4 | |
| 0.00 | 0.86 | 0.00 | 0.68 | -13.10 | 161.16 | 49.85 | 252.29 | 0.7838 | -362.0 | -369.5 | |
| 0.00 | 1.62 | 0.00 | 1.30 | -14.73 | 161.35 | 50.04 | 250.32 | 0.7896 | -432.0 | -292.5 | |
| 0.00 | 2.48 | 0.00 | 1.96 | -13.31 | 160.84 | 49.53 | 251.94 | 0.7810 | -644.0 | -547.0 | |
| 0.00 | 1.88 | 0.00 | 1.49 | -14.08 | 160.96 | 49.66 | 251.02 | 0.7841 | -598.0 | -461.5 | |
| 0.00 | 1.11 | 0.00 | 0.89 | -14.39 | 161.06 | 49.75 | 250.66 | 0.7858 | -460.0 | -366.8 | |
| 0.00 | 2.48 | 0.00 | 1.95 | -13.22 | 160.63 | 49.32 | 252.00 | 0.7785 | -743.0 | -549.2 | |
| 0.00 | 2.14 | 0.00 | 1.68 | -13.49 | 160.61 | 49.30 | 251.65 | 0.7790 | -706.0 | -543.8 | |
| 0.00 | 0.77 | 0.00 | 0.61 | -13.92 | 160.59 | 49.28 | 251.11 | 0.7798 | -623.0 | -508.8 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -15.02 | 160.16 | 48.86 | 249.61 | 0.7782 | -449.0 | -420.0 | |
| 0.00 | 1.37 | 0.00 | 1.07 | -15.14 | 160.06 | 48.75 | 249.43 | 0.7775 | -749.0 | -652.4 | |
| 0.00 | 0.60 | 0.00 | 0.46 | -12.77 | 159.26 | 47.95 | 252.20 | 0.7630 | -372.0 | -358.4 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -15.48 | 159.98 | 48.67 | 248.98 | 0.7776 | -729.0 | -647.0 | |
| 0.00 | 0.43 | 0.00 | 0.33 | -12.86 | 159.15 | 47.84 | 252.05 | 0.7620 | -489.0 | -471.6 | |
| 0.00 | 0.51 | 0.00 | 0.39 | -12.58 | 158.94 | 47.63 | 252.35 | 0.7591 | -516.0 | -444.8 | |
| 0.00 | 1.37 | 0.00 | 1.06 | -15.25 | 159.49 | 48.18 | 249.11 | 0.7719 | -143.0 | -247.1 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -13.10 | 158.76 | 47.45 | 251.63 | 0.7583 | -473.0 | -484.4 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -8.42 | 154.91 | 43.61 | 256.87 | 0.7029 | -637.0 | -544.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
