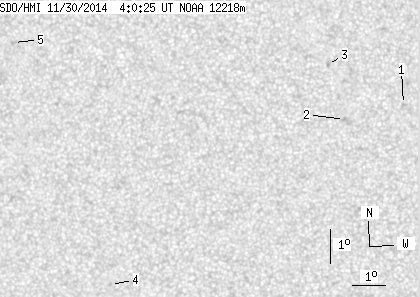

SDO HMI 2014-11-30 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.83 | 0.00 | 5.09 | -4.59 | 96.63 | -14.67 | 112.44 | 0.2738 | 522.0 | 356.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.04 | -4.51 | 101.65 | -9.65 | 119.85 | 0.1936 | 942.0 | 701.0 | |
| 0.00 | 2.14 | 0.00 | 1.09 | -4.96 | 99.87 | -11.44 | 117.67 | 0.2242 | 841.0 | 706.6 | |
| 0.00 | 2.05 | 0.00 | 1.04 | -3.33 | 99.38 | -11.93 | 110.03 | 0.2207 | 849.0 | 654.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -9.92 | 92.44 | -18.87 | 120.64 | 0.3718 | 820.0 | 590.0 | |
| 0.00 | 2.39 | 0.00 | 1.28 | -2.71 | 89.66 | -21.64 | 99.81 | 0.3755 | -842.0 | -581.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
