SDO HMI 2014-11-30 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 363.14 | 1582.39 | 218.65 | 953.60 | -19.69 | 83.28 | -28.03 | 128.90 | 0.5668 | 443.3 | 76.7 | |
|
previous
or next observation for the same group /

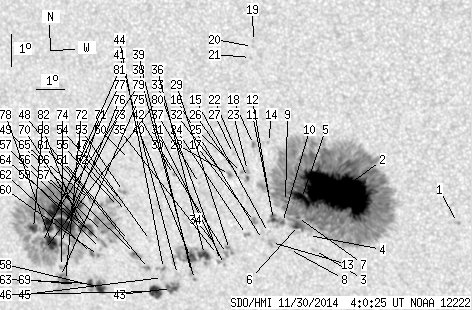

back to the solar disc SDO HMI 2014-11-30 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.01 | -19.96 | 91.28 | -20.03 | 137.96 | 0.4827 | 66.0 | -24.4 | |
| 192.39 | 897.55 | 111.07 | 518.91 | -19.04 | 87.35 | -23.96 | 131.65 | 0.5158 | 1564.7 | 367.6 | |
| 0.00 | 2.31 | 0.00 | 1.36 | -20.89 | 86.24 | -25.06 | 133.18 | 0.5449 | 410.0 | 402.4 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -20.41 | 86.12 | -25.19 | 132.35 | 0.5419 | 437.0 | 329.2 | |
| 15.05 | -2.00 | 8.79 | -2.00 | -19.24 | 86.08 | -25.23 | 130.56 | 0.5319 | 920.1 | 999999 | |
| 5.39 | -2.00 | 3.17 | -2.00 | -20.09 | 85.83 | -25.48 | 131.58 | 0.5423 | -344.1 | 999999 | |
| 1.03 | -2.00 | 0.60 | -2.00 | -19.84 | 85.84 | -25.47 | 131.21 | 0.5399 | 404.2 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -20.86 | 85.37 | -25.94 | 132.22 | 0.5541 | 209.0 | 253.7 | |
| 0.94 | -2.00 | 0.55 | -2.00 | -19.34 | 85.50 | -25.80 | 130.12 | 0.5392 | 187.8 | 999999 | |
| 1.11 | 12.83 | 0.66 | 7.59 | -20.00 | 85.28 | -26.03 | 130.88 | 0.5475 | 732.1 | 419.6 | |
| 1.62 | -10.00 | 0.96 | -10.00 | -19.91 | 84.98 | -26.33 | 130.44 | 0.5500 | 699.2 | 999999 | |
| 0.94 | -10.00 | 0.56 | -10.00 | -19.78 | 84.97 | -26.34 | 130.24 | 0.5491 | 566.1 | 999999 | |
| 0.00 | 5.64 | 0.00 | 3.36 | -20.64 | 84.78 | -26.53 | 131.30 | 0.5586 | -201.0 | -205.0 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -17.49 | 85.22 | -26.09 | 126.96 | 0.5270 | 486.0 | 363.5 | |
| 0.00 | 1.80 | 0.00 | 1.07 | -20.32 | 84.73 | -26.58 | 130.79 | 0.5564 | 443.0 | 277.9 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -20.55 | 84.48 | -26.83 | 130.87 | 0.5611 | -6.0 | -32.8 | |
| 0.00 | 4.62 | 0.00 | 2.75 | -19.98 | 84.30 | -27.01 | 129.86 | 0.5582 | 763.0 | 595.8 | |
| 0.51 | 2.22 | 0.30 | 1.30 | -17.55 | 84.69 | -26.62 | 126.54 | 0.5339 | -654.3 | -517.9 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -14.37 | 85.15 | -26.16 | 121.66 | 0.5039 | 707.0 | 577.5 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -14.52 | 85.09 | -26.22 | 121.88 | 0.5057 | 688.0 | 521.3 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -14.86 | 84.98 | -26.33 | 122.37 | 0.5096 | 656.0 | 537.7 | |
| 0.86 | 2.82 | 0.50 | 1.67 | -18.59 | 84.31 | -27.00 | 127.79 | 0.5467 | 781.2 | 576.4 | |
| 0.00 | 2.57 | 0.00 | 1.51 | -18.37 | 84.34 | -26.97 | 127.49 | 0.5445 | 895.0 | 718.8 | |
| 0.00 | 2.74 | 0.00 | 1.64 | -20.39 | 83.94 | -27.37 | 130.12 | 0.5657 | 673.0 | 519.9 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -18.44 | 84.12 | -27.19 | 127.37 | 0.5476 | 828.0 | 670.3 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -18.62 | 84.05 | -27.25 | 127.60 | 0.5499 | 397.0 | 305.3 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -17.84 | 83.94 | -27.37 | 126.29 | 0.5450 | 488.0 | 358.3 | |
| 0.68 | 3.25 | 0.41 | 1.93 | -18.50 | 83.69 | -27.62 | 127.07 | 0.5532 | 710.2 | 473.3 | |
| 0.00 | 4.36 | 0.00 | 2.64 | -20.88 | 83.23 | -28.08 | 130.14 | 0.5775 | 1022.0 | 758.7 | |
| 0.00 | 2.82 | 0.00 | 1.71 | -21.01 | 83.10 | -28.21 | 130.20 | 0.5800 | 765.0 | 627.4 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -21.36 | 82.95 | -28.36 | 130.56 | 0.5845 | 498.0 | 382.2 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -18.41 | 83.42 | -27.89 | 126.68 | 0.5555 | 405.0 | 248.3 | |
| 0.00 | 3.42 | 0.00 | 2.08 | -21.23 | 82.84 | -28.47 | 130.27 | 0.5847 | 377.0 | 489.2 | |
| 0.00 | 2.48 | 0.00 | 1.51 | -20.78 | 82.82 | -28.49 | 129.63 | 0.5812 | 294.0 | 338.5 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -21.04 | 82.77 | -28.54 | 129.94 | 0.5839 | 537.0 | 486.4 | |
| 6.75 | 47.03 | 4.13 | 28.92 | -21.04 | 82.30 | -29.01 | 129.52 | 0.5891 | 996.4 | 353.9 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -18.79 | 82.57 | -28.74 | 126.50 | 0.5684 | 516.0 | 336.4 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -21.85 | 81.75 | -29.56 | 130.16 | 0.6014 | -794.0 | -695.0 | |
| 0.00 | 3.33 | 0.00 | 2.06 | -21.62 | 81.69 | -29.62 | 129.80 | 0.6002 | -109.0 | -158.4 | |
| 7.18 | -36.00 | 4.42 | -36.00 | -21.14 | 81.76 | -29.54 | 129.19 | 0.5957 | 762.0 | 999999 | |
| 0.00 | 3.08 | 0.00 | 1.91 | -21.69 | 81.16 | -30.15 | 129.43 | 0.6065 | -255.0 | -300.5 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -18.52 | 81.69 | -29.62 | 125.33 | 0.5766 | -747.0 | -570.2 | |
| 5.30 | 10.77 | 3.32 | 6.74 | -22.15 | 80.83 | -30.48 | 129.77 | 0.6135 | -829.7 | -763.0 | |
| 0.43 | 2.99 | 0.27 | 1.87 | -21.51 | 80.69 | -30.62 | 128.78 | 0.6101 | 715.4 | 534.7 | |
| 0.00 | 2.14 | 0.00 | 1.34 | -21.80 | 80.58 | -30.73 | 129.08 | 0.6135 | -804.0 | -658.1 | |
| 10.69 | 13.42 | 6.74 | 8.46 | -22.25 | 80.21 | -31.10 | 129.39 | 0.6209 | -878.6 | -554.1 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -20.61 | 80.42 | -30.89 | 127.31 | 0.6065 | 489.0 | 352.4 | |
| 0.43 | 3.68 | 0.27 | 2.31 | -21.51 | 80.13 | -31.18 | 128.32 | 0.6162 | 561.6 | 318.3 | |
| 1.37 | 6.50 | 0.86 | 4.08 | -21.03 | 79.72 | -31.58 | 127.34 | 0.6171 | -862.0 | -413.4 | |
| 0.00 | 0.43 | 0.00 | 0.26 | -18.06 | 80.19 | -31.12 | 123.43 | 0.5910 | -748.0 | -712.2 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -20.62 | 79.60 | -31.71 | 126.66 | 0.6156 | -814.0 | -600.6 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -19.70 | 79.74 | -31.57 | 125.47 | 0.6075 | 219.0 | 101.3 | |
| 0.00 | 3.51 | 0.00 | 2.17 | -19.07 | 79.76 | -31.55 | 124.58 | 0.6028 | -925.0 | -748.5 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -19.35 | 79.63 | -31.68 | 124.89 | 0.6064 | -383.0 | -303.2 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -19.54 | 79.47 | -31.83 | 125.04 | 0.6094 | -452.0 | -486.7 | |
| 0.68 | 61.14 | 0.43 | 38.43 | -20.34 | 78.69 | -32.62 | 125.58 | 0.6237 | -847.6 | -661.7 | |
| 0.00 | 4.79 | 0.00 | 3.04 | -20.69 | 78.57 | -32.74 | 125.98 | 0.6274 | -849.0 | -720.2 | |
| 7.01 | 21.03 | 4.52 | 13.56 | -22.14 | 78.16 | -33.15 | 127.63 | 0.6419 | -901.9 | -609.0 | |
| 0.00 | 1.37 | 0.00 | 0.87 | -20.89 | 78.49 | -32.82 | 126.18 | 0.6297 | -763.0 | -659.8 | |
| 0.34 | 1.71 | 0.22 | 1.09 | -21.11 | 78.35 | -32.96 | 126.39 | 0.6327 | -846.0 | -577.5 | |
| 0.00 | 1.28 | 0.00 | 0.81 | -19.46 | 78.60 | -32.71 | 124.26 | 0.6188 | -822.0 | -652.7 | |
| 1.28 | 2.82 | 0.82 | 1.80 | -21.05 | 78.10 | -33.20 | 126.12 | 0.6350 | -892.1 | -757.7 | |
| 3.33 | -58.00 | 2.16 | -58.00 | -22.01 | 77.81 | -33.50 | 127.20 | 0.6447 | -827.5 | 999999 | |
| 2.74 | 391.27 | 1.74 | 252.31 | -20.38 | 78.23 | -33.08 | 125.29 | 0.6290 | -948.0 | -330.5 | |
| 0.00 | 1.62 | 0.00 | 1.02 | -19.36 | 78.47 | -32.83 | 124.04 | 0.6196 | -785.0 | -657.6 | |
| 3.85 | -64.00 | 2.45 | -64.00 | -20.22 | 78.16 | -33.15 | 125.01 | 0.6288 | -1071.8 | 999999 | |
| 1.37 | -64.00 | 0.87 | -64.00 | -19.56 | 78.05 | -33.25 | 124.01 | 0.6256 | -1257.8 | 999999 | |
| 3.42 | -64.00 | 2.18 | -64.00 | -20.22 | 77.89 | -33.42 | 124.82 | 0.6318 | -1070.0 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.17 | -22.05 | 77.26 | -34.04 | 126.85 | 0.6508 | -615.0 | -582.6 | |
| 2.31 | -64.00 | 1.47 | -64.00 | -19.66 | 77.84 | -33.47 | 123.99 | 0.6287 | -1099.0 | 999999 | |
| 11.20 | -64.00 | 7.14 | -64.00 | -19.78 | 77.59 | -33.72 | 123.99 | 0.6324 | -1151.5 | 999999 | |
| 3.25 | 20.52 | 2.12 | 13.43 | -21.93 | 76.87 | -34.44 | 126.41 | 0.6541 | -753.1 | -218.2 | |
| 20.95 | -64.00 | 13.45 | -64.00 | -20.17 | 77.26 | -34.05 | 124.30 | 0.6385 | -920.7 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.61 | -21.48 | 76.84 | -34.47 | 125.79 | 0.6515 | -613.0 | -573.2 | |
| 1.37 | -72.00 | 0.89 | -72.00 | -21.80 | 76.72 | -34.59 | 126.13 | 0.6550 | -686.6 | 999999 | |
| 1.20 | -64.00 | 0.77 | -64.00 | -20.74 | 77.00 | -34.31 | 124.90 | 0.6450 | -852.4 | 999999 | |
| 15.56 | -64.00 | 9.98 | -64.00 | -19.69 | 77.08 | -34.23 | 123.51 | 0.6376 | -1040.5 | 999999 | |
| 11.20 | -64.00 | 7.27 | -64.00 | -20.71 | 76.66 | -34.65 | 124.63 | 0.6486 | -823.1 | 999999 | |
| 11.20 | -64.00 | 7.24 | -64.00 | -20.17 | 76.65 | -34.66 | 123.88 | 0.6453 | -770.4 | 999999 | |
| 1.45 | -64.00 | 0.95 | -64.00 | -20.94 | 76.33 | -34.98 | 124.71 | 0.6536 | -387.5 | 999999 | |
| 1.20 | -64.00 | 0.78 | -64.00 | -20.72 | 76.31 | -35.00 | 124.39 | 0.6524 | -487.4 | 999999 | |
| 5.56 | -64.00 | 3.62 | -64.00 | -20.27 | 76.08 | -35.23 | 123.64 | 0.6522 | -677.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
