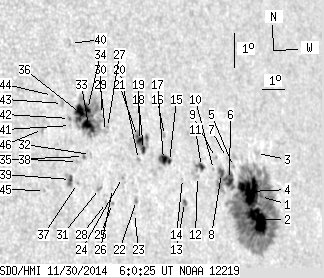

SDO HMI 2014-11-30 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.61 | 468.86 | 88.90 | 372.63 | 3.82 | 161.49 | 51.28 | 274.17 | 0.7818 | -198.3 | -132.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 311.85 | 0.21 | 258.13 | 3.34 | 163.89 | 53.68 | 273.41 | 0.8080 | -167.0 | -272.6 | |
| 26.42 | -1.00 | 22.00 | -1.00 | 2.66 | 163.74 | 53.53 | 272.57 | 0.8063 | -898.2 | 999999 | |
| 0.00 | 2.57 | 0.00 | 2.14 | 4.61 | 163.82 | 53.60 | 275.00 | 0.8076 | 150.0 | 116.0 | |
| 33.52 | -1.00 | 27.70 | -1.00 | 3.49 | 163.41 | 53.19 | 273.62 | 0.8030 | -868.8 | 999999 | |
| 0.00 | 1.28 | 0.00 | 1.04 | 4.24 | 162.64 | 52.42 | 274.59 | 0.7951 | -550.0 | -477.9 | |
| 7.52 | -1.00 | 6.08 | -1.00 | 3.86 | 162.41 | 52.19 | 274.12 | 0.7926 | -822.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.69 | 4.52 | 162.32 | 52.11 | 274.95 | 0.7919 | -134.0 | -159.3 | |
| 2.82 | -1.00 | 2.26 | -1.00 | 4.05 | 162.03 | 51.82 | 274.36 | 0.7887 | -763.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 1.02 | 4.52 | 161.79 | 51.57 | 274.98 | 0.7862 | -559.0 | -487.7 | |
| 0.00 | 0.68 | 0.00 | 0.54 | 4.17 | 161.66 | 51.44 | 274.54 | 0.7847 | -536.0 | -503.1 | |
| 2.31 | 6.58 | 1.81 | 5.16 | 4.27 | 161.10 | 50.88 | 274.69 | 0.7786 | -782.9 | -700.5 | |
| 0.00 | 1.62 | 0.00 | 1.27 | 3.97 | 160.88 | 50.67 | 274.32 | 0.7761 | -713.0 | -636.1 | |
| 0.68 | 2.57 | 0.53 | 1.98 | 3.21 | 160.22 | 50.00 | 273.36 | 0.7685 | 499.0 | 378.9 | |
| 0.00 | 0.60 | 0.00 | 0.46 | 3.92 | 160.18 | 49.96 | 274.29 | 0.7683 | 246.0 | 224.7 | |
| 1.37 | 9.83 | 1.04 | 7.46 | 4.44 | 159.63 | 49.41 | 274.99 | 0.7623 | 441.9 | 349.9 | |
| 0.00 | 1.62 | 0.00 | 1.23 | 5.21 | 159.48 | 49.26 | 276.01 | 0.7610 | 424.0 | 310.9 | |
| 5.73 | -15.00 | 4.34 | -15.00 | 4.50 | 159.36 | 49.14 | 275.08 | 0.7593 | 719.1 | 999999 | |
| 2.05 | 16.59 | 1.53 | 12.36 | 4.81 | 158.48 | 48.27 | 275.55 | 0.7495 | 383.8 | -117.4 | |
| 2.91 | -18.00 | 2.16 | -18.00 | 5.08 | 158.33 | 48.11 | 275.92 | 0.7479 | -680.1 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.33 | 4.51 | 158.23 | 48.02 | 275.17 | 0.7464 | 696.0 | 480.4 | |
| 0.26 | -18.00 | 0.19 | -18.00 | 5.20 | 158.25 | 48.04 | 276.09 | 0.7471 | -759.7 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.64 | 3.30 | 158.05 | 47.83 | 273.55 | 0.7437 | 618.0 | 467.0 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 2.92 | 157.94 | 47.72 | 273.04 | 0.7423 | 524.0 | 491.3 | |
| 0.00 | 1.20 | 0.00 | 0.87 | 3.99 | 157.48 | 47.26 | 274.51 | 0.7373 | 432.0 | 375.5 | |
| 0.00 | 1.11 | 0.00 | 0.80 | 3.23 | 156.99 | 46.77 | 273.49 | 0.7312 | 534.0 | 413.1 | |
| 0.00 | 0.26 | 0.00 | 0.19 | 3.67 | 157.02 | 46.80 | 274.10 | 0.7317 | 529.0 | 436.3 | |
| 0.00 | 0.94 | 0.00 | 0.68 | 5.48 | 156.96 | 46.74 | 276.58 | 0.7321 | 92.0 | 135.7 | |
| 0.00 | 1.03 | 0.00 | 0.74 | 3.26 | 156.73 | 46.52 | 273.55 | 0.7281 | 560.0 | 444.3 | |
| 0.00 | 2.31 | 0.00 | 1.67 | 5.36 | 156.86 | 46.64 | 276.43 | 0.7309 | -286.0 | -178.3 | |
| 0.00 | 1.28 | 0.00 | 0.93 | 5.87 | 156.74 | 46.52 | 277.13 | 0.7299 | 110.0 | 76.6 | |
| 0.00 | 2.22 | 0.00 | 1.59 | 3.68 | 156.46 | 46.24 | 274.14 | 0.7250 | 842.0 | 648.2 | |
| 0.00 | 1.37 | 0.00 | 0.98 | 4.69 | 156.15 | 45.93 | 275.56 | 0.7219 | 480.0 | 456.9 | |
| 9.15 | 72.77 | 6.53 | 51.99 | 5.55 | 156.15 | 45.93 | 276.75 | 0.7225 | 826.8 | 223.0 | |
| 4.19 | -33.00 | 2.99 | -33.00 | 6.03 | 156.16 | 45.94 | 277.41 | 0.7230 | 631.2 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.21 | 4.63 | 155.85 | 45.63 | 275.50 | 0.7182 | 752.0 | 614.7 | |
| 12.31 | -33.00 | 8.75 | -33.00 | 5.91 | 155.84 | 45.63 | 277.28 | 0.7191 | 928.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.78 | 3.84 | 155.53 | 45.31 | 274.41 | 0.7138 | 474.0 | 463.7 | |
| 0.00 | 1.80 | 0.00 | 1.27 | 4.49 | 155.58 | 45.36 | 275.32 | 0.7148 | 669.0 | 427.9 | |
| 1.11 | 7.52 | 0.78 | 5.27 | 3.96 | 155.24 | 45.03 | 274.60 | 0.7104 | 872.4 | 754.7 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 8.00 | 155.68 | 45.46 | 280.20 | 0.7196 | 616.0 | 513.3 | |
| 0.00 | 0.94 | 0.00 | 0.66 | 5.56 | 155.38 | 45.16 | 276.84 | 0.7132 | 806.0 | 609.8 | |
| 0.00 | 1.37 | 0.00 | 0.96 | 5.77 | 155.36 | 45.14 | 277.14 | 0.7131 | 800.0 | 708.0 | |
| 0.00 | 2.65 | 0.00 | 1.86 | 6.22 | 155.11 | 44.90 | 277.79 | 0.7106 | 666.0 | 465.0 | |
| 0.00 | 0.86 | 0.00 | 0.60 | 6.46 | 154.72 | 44.50 | 278.19 | 0.7060 | 460.0 | 434.9 | |
| 0.00 | 0.86 | 0.00 | 0.59 | 3.65 | 154.14 | 43.92 | 274.22 | 0.6965 | 650.0 | 526.9 | |
| 0.00 | 1.97 | 0.00 | 1.36 | 5.46 | 154.20 | 43.98 | 276.82 | 0.6986 | 700.0 | 632.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
