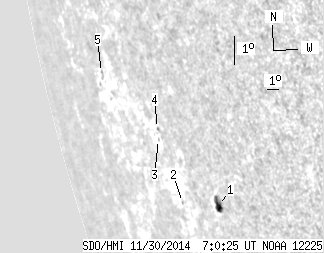

SDO HMI 2014-11-30 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.56 | 11.98 | 7.41 | 16.92 | -15.82 | 41.37 | -68.30 | 107.35 | 0.9373 | 340.1 | 225.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.56 | 8.98 | 7.41 | 11.97 | -16.47 | 42.80 | -66.87 | 108.20 | 0.9300 | 446.5 | 312.7 | |
| 0.00 | 0.77 | 0.00 | 1.17 | -16.42 | 39.78 | -69.90 | 107.75 | 0.9472 | 111.0 | 121.8 | |
| 0.00 | 0.60 | 0.00 | 0.93 | -14.49 | 39.08 | -70.59 | 105.65 | 0.9497 | 131.0 | 194.4 | |
| 0.00 | 0.86 | 0.00 | 1.32 | -14.15 | 39.24 | -70.44 | 105.31 | 0.9487 | 395.0 | 342.3 | |
| 0.00 | 0.77 | 0.00 | 1.53 | -12.52 | 34.68 | -75.00 | 103.20 | 0.9696 | -65.0 | -36.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
