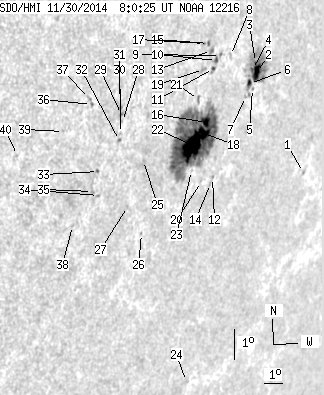

SDO HMI 2014-11-30 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.15 | 314.50 | 51.13 | 289.14 | -13.72 | 165.22 | 56.09 | 252.99 | 0.8450 | 427.1 | 254.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 1.16 | -15.23 | 171.88 | 62.75 | 252.52 | 0.9012 | 529.0 | 493.0 | |
| 7.87 | 53.18 | 7.67 | 51.78 | -12.10 | 167.58 | 58.46 | 255.32 | 0.8635 | 606.1 | 177.8 | |
| 1.20 | -2.00 | 1.16 | -2.00 | -11.79 | 167.42 | 58.29 | 255.64 | 0.8617 | 681.1 | 999999 | |
| 0.26 | -2.00 | 0.25 | -2.00 | -12.00 | 167.32 | 58.19 | 255.38 | 0.8611 | 775.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.09 | -12.58 | 167.52 | 58.40 | 254.75 | 0.8636 | 202.0 | 198.3 | |
| 2.05 | -2.00 | 1.99 | -2.00 | -12.43 | 167.29 | 58.16 | 254.89 | 0.8614 | 633.9 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.99 | -12.82 | 167.20 | 58.08 | 254.42 | 0.8612 | 484.0 | 437.9 | |
| 0.00 | 1.62 | 0.00 | 1.51 | -11.56 | 165.92 | 56.80 | 255.66 | 0.8482 | 356.0 | 300.7 | |
| 0.00 | 1.62 | 0.00 | 1.49 | -11.55 | 165.37 | 56.24 | 255.58 | 0.8432 | 619.0 | 500.8 | |
| 0.94 | 3.08 | 0.86 | 2.81 | -11.70 | 165.20 | 56.07 | 255.37 | 0.8419 | 669.5 | 506.1 | |
| 0.77 | 2.57 | 0.70 | 2.34 | -11.94 | 165.11 | 55.98 | 255.07 | 0.8414 | 576.8 | 516.5 | |
| 0.00 | 1.03 | 0.00 | 0.98 | -15.29 | 166.29 | 57.16 | 251.41 | 0.8571 | -383.0 | -365.8 | |
| 0.00 | 3.25 | 0.00 | 2.93 | -11.39 | 164.83 | 55.71 | 255.67 | 0.8381 | -9.0 | 84.4 | |
| 0.00 | 1.80 | 0.00 | 1.72 | -15.47 | 166.25 | 57.12 | 251.19 | 0.8572 | -436.0 | -380.4 | |
| 0.51 | 1.62 | 0.46 | 1.46 | -11.17 | 164.61 | 55.48 | 255.88 | 0.8357 | -434.7 | -319.4 | |
| 3.42 | 214.28 | 3.15 | 195.37 | -13.58 | 165.28 | 56.15 | 253.17 | 0.8455 | 549.1 | 347.1 | |
| 0.00 | 0.86 | 0.00 | 0.76 | -11.17 | 164.39 | 55.27 | 255.85 | 0.8337 | -422.0 | -378.7 | |
| 7.52 | -16.00 | 6.95 | -16.00 | -13.92 | 165.24 | 56.11 | 252.77 | 0.8457 | 469.1 | 999999 | |
| 0.00 | 3.08 | 0.00 | 2.77 | -11.96 | 164.58 | 55.45 | 254.95 | 0.8365 | 547.0 | 447.6 | |
| 0.00 | 0.34 | 0.00 | 0.32 | -15.40 | 165.71 | 56.58 | 251.16 | 0.8524 | 308.0 | 268.8 | |
| 0.00 | 2.39 | 0.00 | 2.16 | -12.87 | 164.60 | 55.47 | 253.87 | 0.8382 | 530.0 | 377.9 | |
| 30.61 | -16.00 | 27.94 | -16.00 | -14.28 | 164.77 | 55.64 | 252.26 | 0.8421 | 995.6 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -15.05 | 165.01 | 55.89 | 251.41 | 0.8457 | 402.0 | 459.3 | |
| 0.00 | 2.05 | 0.00 | 2.16 | -21.72 | 168.21 | 59.09 | 244.62 | 0.8842 | 102.0 | 171.1 | |
| 0.00 | 0.60 | 0.00 | 0.52 | -14.70 | 162.33 | 53.21 | 251.20 | 0.8204 | 118.0 | 104.6 | |
| 0.00 | 0.94 | 0.00 | 0.84 | -16.97 | 163.10 | 53.98 | 248.71 | 0.8324 | -331.0 | -256.4 | |
| 0.00 | 1.28 | 0.00 | 1.11 | -16.11 | 162.03 | 52.90 | 249.44 | 0.8206 | -135.0 | -141.1 | |
| 0.00 | 0.94 | 0.00 | 0.78 | -13.49 | 160.88 | 51.75 | 252.32 | 0.8038 | -528.0 | -483.4 | |
| 0.00 | 1.62 | 0.00 | 1.34 | -13.27 | 160.76 | 51.64 | 252.55 | 0.8022 | -789.0 | -658.8 | |
| 0.00 | 1.80 | 0.00 | 1.48 | -13.09 | 160.66 | 51.53 | 252.75 | 0.8008 | -721.0 | -564.9 | |
| 0.00 | 0.77 | 0.00 | 0.64 | -13.85 | 160.89 | 51.76 | 251.87 | 0.8047 | -534.0 | -476.6 | |
| 0.00 | 1.28 | 0.00 | 1.07 | -14.07 | 160.91 | 51.78 | 251.61 | 0.8054 | -580.0 | -461.1 | |
| 0.00 | 0.60 | 0.00 | 0.49 | -15.01 | 160.18 | 51.05 | 250.28 | 0.8003 | -688.0 | -613.0 | |
| 0.00 | 1.37 | 0.00 | 1.13 | -15.75 | 160.44 | 51.31 | 249.44 | 0.8046 | -567.0 | -496.7 | |
| 0.00 | 1.62 | 0.00 | 1.34 | -15.62 | 160.09 | 50.97 | 249.50 | 0.8009 | -572.0 | -468.9 | |
| 0.00 | 1.37 | 0.00 | 1.09 | -12.94 | 159.22 | 50.09 | 252.57 | 0.7858 | -530.0 | -442.9 | |
| 0.00 | 1.80 | 0.00 | 1.43 | -12.76 | 159.07 | 49.94 | 252.77 | 0.7839 | -541.0 | -469.0 | |
| 0.00 | 1.03 | 0.00 | 0.84 | -16.66 | 159.49 | 50.36 | 248.06 | 0.7976 | -461.0 | -355.6 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -13.75 | 158.12 | 49.00 | 251.27 | 0.7764 | -658.0 | -551.6 | |
| 0.00 | 0.34 | 0.00 | 0.26 | -14.46 | 156.21 | 47.09 | 249.80 | 0.7580 | -630.0 | -543.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
