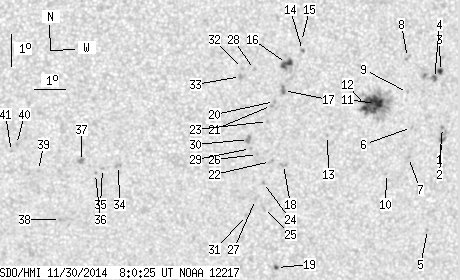

SDO HMI 2014-11-30 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.71 | 134.62 | 16.70 | 73.04 | -17.64 | 124.27 | 15.14 | 217.65 | 0.4089 | 504.7 | 300.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.85 | -18.01 | 128.11 | 18.98 | 223.62 | 0.4503 | 964.0 | 645.3 | |
| 0.51 | 6.07 | 0.28 | 3.37 | -18.42 | 128.12 | 19.00 | 222.98 | 0.4549 | 970.7 | 712.5 | |
| 1.80 | 2.91 | 0.98 | 1.59 | -16.27 | 127.86 | 18.74 | 226.19 | 0.4291 | -967.0 | -741.5 | |
| 0.94 | 6.07 | 0.52 | 3.32 | -16.49 | 127.69 | 18.56 | 225.56 | 0.4294 | -841.5 | -666.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -21.24 | 128.00 | 18.88 | 218.63 | 0.4850 | 633.0 | 563.0 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -18.01 | 127.09 | 17.97 | 222.10 | 0.4394 | 738.0 | 683.4 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -18.95 | 127.10 | 17.97 | 220.63 | 0.4500 | 860.0 | 691.2 | |
| 0.00 | 2.14 | 0.00 | 1.16 | -15.83 | 126.75 | 17.62 | 225.28 | 0.4117 | -585.0 | -616.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -16.91 | 126.85 | 17.73 | 223.54 | 0.4247 | -409.0 | -322.7 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -19.45 | 126.43 | 17.30 | 218.83 | 0.4491 | 791.0 | 661.5 | |
| 15.82 | 56.35 | 8.62 | 30.70 | -17.25 | 125.85 | 16.72 | 221.35 | 0.4177 | 1074.4 | 436.1 | |
| 6.50 | -11.00 | 3.54 | -11.00 | -17.34 | 125.57 | 16.44 | 220.73 | 0.4158 | 1072.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -18.24 | 124.39 | 15.26 | 217.25 | 0.4147 | 900.0 | 648.2 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -15.59 | 123.38 | 14.25 | 219.78 | 0.3722 | 1037.0 | 917.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -15.31 | 123.33 | 14.20 | 220.18 | 0.3683 | 846.0 | 745.6 | |
| 4.28 | 10.18 | 2.28 | 5.43 | -15.99 | 122.90 | 13.77 | 218.13 | 0.3722 | 1027.7 | 365.3 | |
| 0.00 | 3.33 | 0.00 | 1.79 | -16.83 | 122.86 | 13.74 | 216.65 | 0.3824 | 1102.0 | 932.7 | |
| 0.00 | 2.65 | 0.00 | 1.44 | -19.14 | 123.05 | 13.92 | 213.48 | 0.4137 | 676.0 | 646.9 | |
| 0.86 | 1.80 | 0.48 | 1.00 | -22.42 | 123.12 | 14.00 | 209.40 | 0.4574 | -873.0 | -799.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -17.17 | 122.60 | 13.47 | 215.59 | 0.3842 | 894.0 | 758.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -17.29 | 122.52 | 13.39 | 215.22 | 0.3850 | 850.0 | 724.0 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -19.05 | 122.62 | 13.49 | 212.81 | 0.4088 | 810.0 | 645.7 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -17.79 | 122.42 | 13.30 | 214.27 | 0.3906 | 832.0 | 679.1 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -19.71 | 122.45 | 13.32 | 211.58 | 0.4160 | 809.0 | 708.4 | |
| 0.00 | 2.57 | 0.00 | 1.40 | -20.50 | 122.52 | 13.39 | 210.66 | 0.4271 | 823.0 | 675.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.82 | 122.18 | 13.06 | 212.28 | 0.4021 | 844.0 | 617.2 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -20.25 | 122.24 | 13.11 | 210.47 | 0.4214 | 790.0 | 515.0 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -16.17 | 121.90 | 12.77 | 215.78 | 0.3647 | 767.0 | 592.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -18.63 | 121.94 | 12.82 | 212.08 | 0.3975 | 855.0 | 673.8 | |
| 0.00 | 3.76 | 0.00 | 2.02 | -18.35 | 121.86 | 12.73 | 212.32 | 0.3930 | 1012.0 | 854.6 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -20.75 | 121.99 | 12.86 | 209.36 | 0.4263 | 843.0 | 632.1 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -16.14 | 121.52 | 12.39 | 215.03 | 0.3607 | 776.0 | 600.0 | |
| 0.00 | 2.14 | 0.00 | 1.14 | -16.39 | 121.47 | 12.34 | 214.52 | 0.3635 | 947.0 | 799.0 | |
| 0.00 | 2.99 | 0.00 | 1.60 | -19.15 | 117.78 | 8.65 | 202.44 | 0.3738 | -812.0 | -705.9 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.24 | 117.28 | 8.15 | 201.17 | 0.3722 | -901.0 | -708.7 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.40 | 117.06 | 7.93 | 200.51 | 0.3733 | -817.0 | -582.0 | |
| 0.00 | 3.25 | 0.00 | 1.73 | -19.02 | 116.60 | 7.47 | 199.78 | 0.3650 | -957.0 | -822.2 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -20.85 | 116.02 | 6.89 | 196.78 | 0.3901 | -742.0 | -674.2 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -19.30 | 115.26 | 6.13 | 196.22 | 0.3625 | -817.0 | -655.6 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -18.48 | 114.54 | 5.41 | 195.03 | 0.3464 | -858.0 | -710.5 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -18.70 | 114.39 | 5.26 | 194.47 | 0.3493 | -872.0 | -675.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
