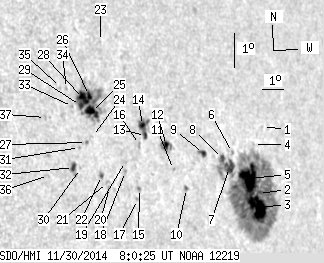

SDO HMI 2014-11-30 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.89 | 434.81 | 83.85 | 356.00 | 3.68 | 161.72 | 52.59 | 273.95 | 0.7959 | -215.0 | -130.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.59 | 5.00 | 164.21 | 55.08 | 275.41 | 0.8227 | 385.0 | 398.5 | |
| 1.97 | 309.36 | 1.69 | 262.91 | 3.02 | 163.80 | 54.67 | 273.01 | 0.8181 | -341.1 | -244.0 | |
| 25.22 | -2.00 | 21.56 | -2.00 | 2.61 | 163.72 | 54.59 | 272.50 | 0.8172 | -899.7 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.88 | 4.48 | 163.68 | 54.55 | 274.79 | 0.8173 | -241.0 | -231.7 | |
| 27.87 | -2.00 | 23.63 | -2.00 | 3.47 | 163.38 | 54.25 | 273.57 | 0.8139 | -914.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.28 | 4.25 | 162.59 | 53.46 | 274.57 | 0.8061 | -512.0 | -465.9 | |
| 7.78 | -2.00 | 6.45 | -2.00 | 3.81 | 162.40 | 53.27 | 274.02 | 0.8039 | -841.5 | 999999 | |
| 2.39 | -2.00 | 1.97 | -2.00 | 4.08 | 162.08 | 52.95 | 274.37 | 0.8007 | -738.5 | 999999 | |
| 2.05 | 4.70 | 1.65 | 3.79 | 4.24 | 161.16 | 52.03 | 274.62 | 0.7910 | -798.1 | -703.8 | |
| 0.51 | 1.97 | 0.40 | 1.55 | 3.22 | 160.26 | 51.13 | 273.34 | 0.7810 | 471.5 | 372.9 | |
| 0.00 | 1.20 | 0.00 | 0.93 | 3.79 | 159.69 | 50.56 | 274.10 | 0.7749 | -552.0 | -469.4 | |
| 3.08 | 8.64 | 2.39 | 6.70 | 4.51 | 159.43 | 50.30 | 275.04 | 0.7723 | 676.9 | 488.8 | |
| 1.80 | 13.85 | 1.37 | 10.54 | 4.82 | 158.48 | 49.36 | 275.50 | 0.7619 | 468.1 | -152.5 | |
| 2.91 | -13.00 | 2.21 | -13.00 | 5.11 | 158.38 | 49.25 | 275.90 | 0.7609 | -752.6 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.23 | 3.25 | 158.08 | 48.95 | 273.45 | 0.7567 | 569.0 | 496.6 | |
| 0.00 | 1.80 | 0.00 | 1.36 | 4.55 | 158.18 | 49.06 | 275.17 | 0.7584 | 606.0 | 510.6 | |
| 0.00 | 1.11 | 0.00 | 0.84 | 2.92 | 157.97 | 48.84 | 273.02 | 0.7553 | 479.0 | 434.3 | |
| 0.00 | 1.45 | 0.00 | 1.08 | 3.76 | 157.49 | 48.36 | 274.16 | 0.7500 | 623.0 | 503.4 | |
| 0.00 | 1.03 | 0.00 | 0.77 | 4.06 | 157.51 | 48.38 | 274.55 | 0.7504 | 343.0 | 298.9 | |
| 0.00 | 0.86 | 0.00 | 0.63 | 3.30 | 156.74 | 47.61 | 273.57 | 0.7412 | 543.0 | 432.1 | |
| 0.00 | 1.62 | 0.00 | 1.19 | 3.45 | 156.66 | 47.53 | 273.77 | 0.7403 | 582.0 | 471.5 | |
| 0.77 | 2.57 | 0.56 | 1.87 | 3.66 | 156.41 | 47.29 | 274.07 | 0.7375 | 759.3 | 562.9 | |
| 0.00 | 0.51 | 0.00 | 0.38 | 7.64 | 156.81 | 47.68 | 279.40 | 0.7452 | 470.0 | 409.0 | |
| 0.00 | 0.77 | 0.00 | 0.56 | 4.82 | 156.11 | 46.99 | 275.67 | 0.7345 | 540.0 | 497.1 | |
| 9.23 | 63.27 | 6.73 | 46.06 | 5.56 | 156.14 | 47.02 | 276.68 | 0.7354 | 759.1 | 236.5 | |
| 3.51 | -25.00 | 2.55 | -25.00 | 6.04 | 156.11 | 46.98 | 277.33 | 0.7354 | 628.0 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.93 | 4.64 | 155.84 | 46.71 | 275.45 | 0.7311 | 704.0 | 631.3 | |
| 9.58 | -25.00 | 6.94 | -25.00 | 5.95 | 155.84 | 46.71 | 277.24 | 0.7321 | 921.5 | 999999 | |
| 2.74 | -25.00 | 1.98 | -25.00 | 5.74 | 155.68 | 46.56 | 276.97 | 0.7302 | 948.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 3.88 | 155.51 | 46.39 | 274.42 | 0.7269 | 524.0 | 414.4 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 4.50 | 155.52 | 46.39 | 275.27 | 0.7273 | 617.0 | 532.4 | |
| 2.48 | 6.58 | 1.77 | 4.71 | 3.91 | 155.22 | 46.09 | 274.48 | 0.7233 | 841.1 | 660.7 | |
| 0.00 | 0.94 | 0.00 | 0.67 | 5.72 | 155.34 | 46.21 | 276.97 | 0.7260 | 798.0 | 695.1 | |
| 0.00 | 1.11 | 0.00 | 0.80 | 6.26 | 155.14 | 46.01 | 277.73 | 0.7241 | 667.0 | 520.6 | |
| 0.00 | 0.94 | 0.00 | 0.67 | 6.29 | 154.88 | 45.76 | 277.81 | 0.7211 | 565.0 | 468.8 | |
| 0.00 | 0.86 | 0.00 | 0.60 | 3.69 | 154.14 | 45.01 | 274.23 | 0.7101 | 630.0 | 531.8 | |
| 0.00 | 1.80 | 0.00 | 1.26 | 5.41 | 154.15 | 45.02 | 276.65 | 0.7114 | 540.0 | 488.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
