SDO HMI 2014-11-30 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.87 | 14.62 | 5.69 | 10.53 | 15.80 | 153.33 | 44.74 | 291.05 | 0.7281 | 437.7 | 375.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

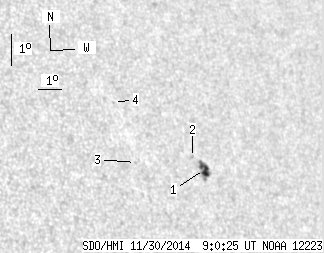

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.87 | 12.31 | 5.69 | 8.90 | 15.72 | 153.59 | 45.01 | 290.85 | 0.7308 | 744.9 | 542.3 | |
| 0.00 | 1.11 | 0.00 | 0.80 | 16.10 | 153.18 | 44.59 | 291.49 | 0.7273 | 613.0 | 521.6 | |
| 0.00 | 0.94 | 0.00 | 0.65 | 15.97 | 150.72 | 42.14 | 292.18 | 0.6989 | -528.0 | -414.0 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 17.83 | 150.31 | 41.73 | 294.89 | 0.7009 | -520.0 | -405.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
