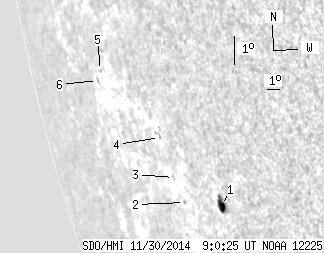

SDO HMI 2014-11-30 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.01 | 15.05 | 8.94 | 20.94 | -15.59 | 40.61 | -67.97 | 107.17 | 0.9348 | 300.8 | 166.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.01 | 10.26 | 8.94 | 13.07 | -16.48 | 42.79 | -65.79 | 108.37 | 0.9232 | 422.8 | 300.5 | |
| 0.00 | 0.94 | 0.00 | 1.36 | -16.44 | 39.83 | -68.75 | 107.91 | 0.9409 | 145.0 | 102.4 | |
| 0.00 | 0.86 | 0.00 | 1.25 | -15.67 | 39.46 | -69.12 | 107.05 | 0.9425 | 261.0 | 205.6 | |
| 0.00 | 0.94 | 0.00 | 1.39 | -14.45 | 39.12 | -69.46 | 105.72 | 0.9436 | 130.0 | 238.4 | |
| 0.00 | 0.77 | 0.00 | 1.42 | -12.47 | 34.78 | -73.80 | 103.24 | 0.9644 | -179.0 | -130.8 | |
| 0.00 | 1.28 | 0.00 | 2.45 | -12.79 | 34.19 | -74.39 | 103.52 | 0.9672 | 57.0 | 87.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
