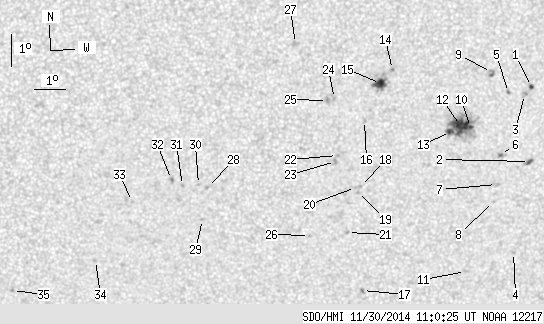

SDO HMI 2014-11-30 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.01 | 122.16 | 16.42 | 66.86 | -17.52 | 124.47 | 16.98 | 221.12 | 0.4256 | 420.5 | 305.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 2.05 | 0.66 | 1.13 | -16.05 | 127.97 | 20.48 | 229.05 | 0.4470 | -898.5 | -818.3 | |
| 1.28 | 3.42 | 0.72 | 1.92 | -18.39 | 128.17 | 20.68 | 225.41 | 0.4726 | 869.6 | 729.7 | |
| 0.00 | 3.50 | 0.00 | 1.94 | -16.30 | 127.77 | 20.27 | 228.35 | 0.4470 | -891.0 | -625.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -21.26 | 128.02 | 20.53 | 220.90 | 0.5013 | 720.0 | 632.2 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -16.23 | 127.23 | 19.74 | 227.73 | 0.4401 | -780.0 | -654.8 | |
| 0.51 | 2.31 | 0.29 | 1.29 | -18.16 | 127.18 | 19.69 | 224.42 | 0.4594 | 869.0 | 715.5 | |
| 0.00 | 3.33 | 0.00 | 1.87 | -19.10 | 127.16 | 19.67 | 222.90 | 0.4692 | 915.0 | 692.3 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -19.64 | 127.13 | 19.64 | 222.04 | 0.4747 | 735.0 | 646.0 | |
| 0.00 | 3.93 | 0.00 | 2.15 | -15.61 | 126.62 | 19.13 | 227.97 | 0.4267 | -772.0 | -751.7 | |
| 1.20 | 54.63 | 0.66 | 30.02 | -17.31 | 126.10 | 18.61 | 224.25 | 0.4386 | 711.5 | 478.1 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -21.86 | 126.49 | 18.99 | 217.96 | 0.4931 | 732.0 | 540.9 | |
| 16.50 | -10.00 | 9.06 | -10.00 | -17.24 | 125.77 | 18.28 | 223.85 | 0.4342 | 1048.6 | 999999 | |
| 2.65 | -10.00 | 1.45 | -10.00 | -17.43 | 125.46 | 17.97 | 223.07 | 0.4329 | 913.7 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -15.49 | 123.42 | 15.93 | 223.08 | 0.3889 | 979.0 | 839.0 | |
| 6.67 | 14.45 | 3.58 | 7.77 | -15.92 | 123.07 | 15.58 | 221.68 | 0.3900 | 1026.7 | 670.4 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -17.07 | 122.65 | 15.16 | 218.96 | 0.3993 | 778.0 | 701.7 | |
| 0.00 | 1.88 | 0.00 | 1.05 | -22.45 | 123.11 | 15.62 | 212.09 | 0.4704 | -979.0 | -794.5 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -19.13 | 122.70 | 15.21 | 215.84 | 0.4252 | 779.0 | 665.1 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -19.32 | 122.62 | 15.13 | 215.43 | 0.4268 | 723.0 | 640.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -19.16 | 122.54 | 15.05 | 215.52 | 0.4241 | 877.0 | 638.9 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -20.59 | 122.42 | 14.93 | 213.32 | 0.4410 | 775.0 | 652.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -18.16 | 121.87 | 14.38 | 215.81 | 0.4052 | 652.0 | 586.3 | |
| 0.00 | 2.14 | 0.00 | 1.16 | -18.34 | 121.83 | 14.33 | 215.44 | 0.4071 | 896.0 | 752.7 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -16.38 | 121.64 | 14.15 | 218.23 | 0.3807 | 835.0 | 670.3 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -16.44 | 121.42 | 13.93 | 217.70 | 0.3792 | 1077.0 | 859.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -20.68 | 121.19 | 13.70 | 211.02 | 0.4318 | 603.0 | 554.3 | |
| 0.00 | 3.59 | 0.00 | 1.89 | -14.68 | 120.30 | 12.81 | 218.53 | 0.3458 | 753.0 | 670.0 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -19.14 | 117.79 | 10.30 | 206.18 | 0.3845 | -904.0 | -668.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -20.15 | 117.70 | 10.21 | 204.79 | 0.3984 | -648.0 | -588.4 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -19.04 | 117.50 | 10.01 | 205.66 | 0.3811 | -774.0 | -640.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -19.07 | 116.99 | 9.50 | 204.49 | 0.3780 | -784.0 | -604.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.88 | 116.63 | 9.14 | 203.89 | 0.3729 | -1021.0 | -852.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.57 | 115.43 | 7.94 | 200.37 | 0.3758 | -627.0 | -574.8 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -21.44 | 114.35 | 6.86 | 196.25 | 0.3988 | -752.0 | -586.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -22.40 | 111.72 | 4.23 | 189.77 | 0.4042 | -925.0 | -818.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
