SDO HMI 2014-11-30 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.18 | 398.38 | 81.12 | 339.70 | 3.64 | 161.86 | 54.37 | 273.83 | 0.8142 | -213.0 | -122.1 | |
|
previous
or next observation for the same group /

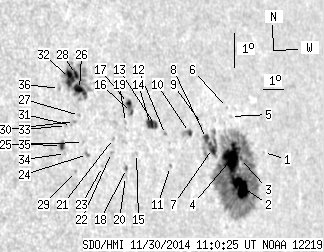

back to the solar disc SDO HMI 2014-11-30 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.63 | 3.59 | 165.10 | 57.61 | 273.63 | 0.8466 | 418.0 | 431.6 | |
| 23.25 | 259.96 | 20.73 | 230.76 | 2.60 | 163.76 | 56.27 | 272.48 | 0.8337 | -835.0 | -194.4 | |
| 1.45 | -2.00 | 1.30 | -2.00 | 3.43 | 163.83 | 56.33 | 273.47 | 0.8345 | 32.9 | 999999 | |
| 29.92 | -2.00 | 26.41 | -2.00 | 3.44 | 163.34 | 55.85 | 273.49 | 0.8299 | -844.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.06 | 4.68 | 163.43 | 55.93 | 274.99 | 0.8310 | -372.0 | -338.9 | |
| 0.00 | 0.60 | 0.00 | 0.53 | 4.95 | 163.30 | 55.81 | 275.32 | 0.8298 | -316.0 | -260.0 | |
| 5.90 | 28.21 | 5.08 | 24.24 | 3.75 | 162.38 | 54.89 | 273.90 | 0.8204 | -870.0 | -585.3 | |
| 2.99 | -7.00 | 2.56 | -7.00 | 4.05 | 162.10 | 54.60 | 274.27 | 0.8176 | -725.7 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.51 | 4.47 | 161.93 | 54.44 | 274.79 | 0.8162 | -423.0 | -429.1 | |
| 1.71 | 5.90 | 1.43 | 4.93 | 4.24 | 161.25 | 53.76 | 274.54 | 0.8091 | -726.3 | -612.7 | |
| 0.00 | 1.20 | 0.00 | 0.98 | 3.24 | 160.21 | 52.72 | 273.34 | 0.7980 | 364.0 | 282.4 | |
| 0.00 | 0.94 | 0.00 | 0.77 | 4.20 | 160.05 | 52.56 | 274.54 | 0.7966 | 276.0 | 183.3 | |
| 1.20 | 8.98 | 0.97 | 7.22 | 4.47 | 159.59 | 52.10 | 274.91 | 0.7918 | 400.8 | 325.8 | |
| 5.04 | -13.00 | 4.05 | -13.00 | 4.50 | 159.35 | 51.86 | 274.96 | 0.7893 | 714.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.88 | 3.65 | 158.60 | 51.11 | 273.91 | 0.7809 | 424.0 | 278.8 | |
| 1.03 | 8.04 | 0.81 | 6.33 | 4.87 | 158.48 | 50.99 | 275.48 | 0.7801 | 437.2 | -143.2 | |
| 1.97 | -16.00 | 1.55 | -16.00 | 5.14 | 158.37 | 50.88 | 275.83 | 0.7790 | -636.4 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.47 | 3.21 | 158.10 | 50.61 | 273.36 | 0.7752 | 459.0 | 418.3 | |
| 0.00 | 0.94 | 0.00 | 0.74 | 4.58 | 158.17 | 50.67 | 275.12 | 0.7765 | 495.0 | 459.1 | |
| 0.00 | 1.37 | 0.00 | 1.07 | 2.98 | 158.03 | 50.54 | 273.06 | 0.7745 | 482.0 | 354.9 | |
| 0.00 | 1.20 | 0.00 | 0.92 | 4.11 | 157.56 | 50.07 | 274.55 | 0.7696 | 384.0 | 326.1 | |
| 0.00 | 1.11 | 0.00 | 0.86 | 3.70 | 157.43 | 49.94 | 274.01 | 0.7680 | 537.0 | 451.9 | |
| 0.00 | 0.85 | 0.00 | 0.65 | 3.29 | 156.99 | 49.50 | 273.49 | 0.7629 | 507.0 | 404.4 | |
| 0.00 | 1.97 | 0.00 | 1.48 | 3.65 | 156.33 | 48.84 | 274.00 | 0.7555 | 760.0 | 616.7 | |
| 0.00 | 0.51 | 0.00 | 0.39 | 4.01 | 156.18 | 48.69 | 274.48 | 0.7539 | 624.0 | 559.5 | |
| 7.01 | 59.50 | 5.27 | 44.66 | 5.58 | 156.15 | 48.66 | 276.58 | 0.7545 | 739.6 | 268.5 | |
| 0.00 | 1.03 | 0.00 | 0.77 | 4.81 | 156.07 | 48.58 | 275.56 | 0.7531 | 598.0 | 520.7 | |
| 2.82 | -26.00 | 2.12 | -26.00 | 6.03 | 156.07 | 48.58 | 277.18 | 0.7539 | 636.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.76 | 3.16 | 155.76 | 48.27 | 273.36 | 0.7487 | 577.0 | 510.1 | |
| 0.00 | 1.28 | 0.00 | 0.96 | 4.64 | 155.83 | 48.34 | 275.34 | 0.7502 | 723.0 | 639.5 | |
| 0.00 | 0.68 | 0.00 | 0.51 | 4.52 | 155.68 | 48.19 | 275.19 | 0.7485 | 566.0 | 459.9 | |
| 9.75 | -26.00 | 7.27 | -26.00 | 5.92 | 155.74 | 48.25 | 277.05 | 0.7501 | 944.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.70 | 4.52 | 155.46 | 47.97 | 275.21 | 0.7459 | 635.0 | 477.1 | |
| 0.00 | 0.94 | 0.00 | 0.69 | 3.70 | 155.35 | 47.86 | 274.10 | 0.7442 | 526.0 | 464.0 | |
| 2.14 | 4.19 | 1.57 | 3.09 | 3.93 | 155.19 | 47.70 | 274.43 | 0.7424 | 809.9 | 677.4 | |
| 0.00 | 1.54 | 0.00 | 1.14 | 5.63 | 155.26 | 47.77 | 276.71 | 0.7443 | 642.0 | 523.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
