SDO HMI 2014-11-30 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 320.75 | 1605.90 | 187.16 | 936.36 | -19.70 | 83.27 | -24.22 | 132.88 | 0.5246 | 362.2 | 83.1 | |
|
previous
or next observation for the same group /

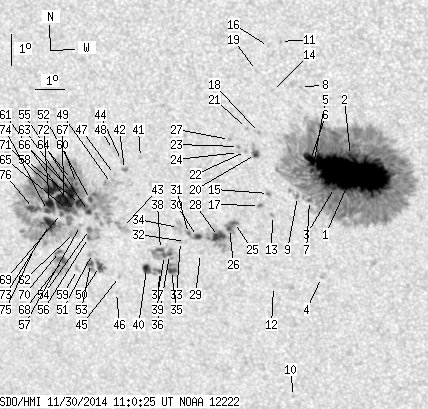

back to the solar disc SDO HMI 2014-11-30 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 169.52 | 926.49 | 95.24 | 521.07 | -19.12 | 87.41 | -20.08 | 136.56 | 0.4737 | 1397.8 | 404.4 | |
| 0.26 | -1.00 | 0.14 | -1.00 | -18.55 | 87.42 | -20.08 | 135.68 | 0.4677 | 1576.0 | 999999 | |
| 0.26 | -1.00 | 0.15 | -1.00 | -19.56 | 86.75 | -20.74 | 136.34 | 0.4854 | 931.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -22.44 | 85.87 | -21.62 | 139.32 | 0.5245 | 633.0 | 500.8 | |
| 2.48 | -1.00 | 1.40 | -1.00 | -19.03 | 86.08 | -21.41 | 134.66 | 0.4871 | 900.2 | 999999 | |
| 8.21 | -1.00 | 4.64 | -1.00 | -18.69 | 86.06 | -21.43 | 134.09 | 0.4838 | 1110.5 | 999999 | |
| 0.85 | -1.00 | 0.49 | -1.00 | -19.98 | 85.85 | -21.64 | 135.80 | 0.4992 | 237.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -16.44 | 86.01 | -21.48 | 130.33 | 0.4626 | -676.0 | -511.6 | |
| 0.43 | -1.00 | 0.24 | -1.00 | -19.86 | 85.46 | -22.03 | 135.13 | 0.5021 | 687.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -26.35 | 84.15 | -23.35 | 142.20 | 0.5815 | -617.0 | -505.5 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -15.02 | 85.51 | -21.98 | 127.20 | 0.4557 | 819.0 | 688.3 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -22.74 | 84.16 | -23.33 | 137.66 | 0.5445 | 632.0 | 521.5 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -20.46 | 84.51 | -22.98 | 134.88 | 0.5182 | -609.0 | -446.4 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -16.54 | 85.07 | -22.42 | 129.33 | 0.4747 | -836.0 | -634.5 | |
| 0.00 | 1.97 | 0.00 | 1.13 | -19.77 | 84.48 | -23.01 | 133.81 | 0.5117 | 777.0 | 585.9 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -15.18 | 85.10 | -22.39 | 126.99 | 0.4622 | 645.0 | 574.6 | |
| 0.60 | 1.88 | 0.35 | 1.09 | -20.15 | 84.12 | -23.37 | 133.95 | 0.5194 | 747.7 | 630.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -17.85 | 84.46 | -23.03 | 130.79 | 0.4939 | -548.0 | -434.2 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -15.92 | 84.61 | -22.88 | 127.73 | 0.4747 | 405.0 | 413.8 | |
| 2.74 | 7.18 | 1.57 | 4.11 | -18.54 | 84.23 | -23.26 | 131.62 | 0.5030 | 879.2 | 684.2 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -17.73 | 84.04 | -23.45 | 130.10 | 0.4977 | 752.0 | 658.5 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -18.45 | 83.90 | -23.59 | 131.10 | 0.5058 | 700.0 | 462.0 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -18.29 | 83.68 | -23.81 | 130.61 | 0.5069 | 753.0 | 586.8 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -18.48 | 83.66 | -23.83 | 130.87 | 0.5089 | 452.0 | 353.4 | |
| 1.45 | 11.54 | 0.85 | 6.77 | -20.69 | 83.16 | -24.33 | 133.66 | 0.5349 | 1009.5 | 729.9 | |
| 1.54 | -25.00 | 0.90 | -25.00 | -20.89 | 82.95 | -24.54 | 133.71 | 0.5389 | 886.1 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -18.07 | 83.41 | -24.08 | 129.95 | 0.5081 | 538.0 | 409.8 | |
| 7.95 | 45.22 | 4.69 | 26.74 | -21.15 | 82.52 | -24.97 | 133.61 | 0.5459 | 928.1 | 348.5 | |
| 0.00 | 0.68 | 0.00 | 0.41 | -21.69 | 81.79 | -25.70 | 133.60 | 0.5587 | -579.0 | -554.9 | |
| 2.74 | -28.00 | 1.62 | -28.00 | -21.15 | 81.79 | -25.71 | 132.83 | 0.5538 | 816.9 | 999999 | |
| 0.68 | -28.00 | 0.41 | -28.00 | -21.06 | 81.49 | -26.00 | 132.39 | 0.5562 | 787.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -21.31 | 81.33 | -26.16 | 132.59 | 0.5601 | 557.0 | 378.4 | |
| 0.00 | 1.62 | 0.00 | 0.97 | -21.32 | 81.15 | -26.34 | 132.41 | 0.5620 | 617.0 | 492.6 | |
| 0.00 | 8.89 | 0.00 | 5.30 | -20.87 | 81.17 | -26.32 | 131.79 | 0.5579 | 141.0 | 131.0 | |
| 3.76 | 12.91 | 2.27 | 7.79 | -22.25 | 80.64 | -26.85 | 133.20 | 0.5757 | -812.2 | -616.3 | |
| 1.62 | 22.14 | 0.98 | 13.35 | -21.73 | 80.68 | -26.81 | 132.53 | 0.5708 | -939.8 | -307.6 | |
| 1.37 | -36.00 | 0.83 | -36.00 | -21.77 | 80.49 | -27.00 | 132.39 | 0.5730 | -840.4 | 999999 | |
| 2.22 | -36.00 | 1.34 | -36.00 | -21.58 | 80.39 | -27.10 | 132.02 | 0.5725 | 506.2 | 999999 | |
| 0.94 | 11.80 | 0.57 | 7.18 | -22.28 | 80.20 | -27.29 | 132.82 | 0.5806 | -775.6 | -626.5 | |
| 4.87 | -39.00 | 2.97 | -39.00 | -22.19 | 79.76 | -27.74 | 132.26 | 0.5845 | -840.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -18.66 | 80.23 | -27.26 | 127.61 | 0.5498 | -749.0 | -546.9 | |
| 0.00 | 2.31 | 0.00 | 1.38 | -19.04 | 79.60 | -27.89 | 127.59 | 0.5602 | -996.0 | -847.3 | |
| 0.00 | 8.12 | 0.00 | 4.93 | -20.88 | 79.17 | -28.32 | 129.88 | 0.5799 | -708.0 | -632.2 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -18.76 | 79.55 | -27.94 | 127.11 | 0.5586 | -854.0 | -755.4 | |
| 0.00 | 1.71 | 0.00 | 1.05 | -22.46 | 78.71 | -28.78 | 131.65 | 0.5976 | -665.0 | -579.2 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -22.98 | 78.48 | -29.01 | 132.14 | 0.6043 | -559.0 | -372.2 | |
| 0.00 | 1.28 | 0.00 | 0.77 | -19.20 | 79.22 | -28.27 | 127.48 | 0.5659 | -692.0 | -556.8 | |
| 0.00 | 2.14 | 0.00 | 1.27 | -18.42 | 79.33 | -28.16 | 126.39 | 0.5585 | -697.0 | -600.7 | |
| 0.00 | 13.42 | 0.00 | 8.08 | -19.49 | 79.05 | -28.44 | 127.75 | 0.5700 | -657.0 | -608.7 | |
| 4.19 | 8.46 | 2.59 | 5.24 | -22.14 | 78.06 | -29.44 | 130.63 | 0.6020 | -850.6 | -711.0 | |
| 0.00 | 4.79 | 0.00 | 2.96 | -21.72 | 77.89 | -29.60 | 129.91 | 0.6004 | -549.0 | -623.2 | |
| 1.71 | 429.22 | 1.04 | 264.56 | -20.00 | 78.20 | -29.29 | 127.74 | 0.5837 | -1064.7 | -415.2 | |
| 1.97 | 7.69 | 1.22 | 4.78 | -22.05 | 77.75 | -29.74 | 130.23 | 0.6046 | -852.1 | -453.1 | |
| 1.45 | 14.96 | 0.89 | 9.19 | -20.96 | 77.96 | -29.53 | 128.90 | 0.5937 | -1000.2 | -723.4 | |
| 2.22 | -52.00 | 1.36 | -52.00 | -20.38 | 78.04 | -29.45 | 128.16 | 0.5883 | -910.3 | 999999 | |
| 1.11 | -54.00 | 0.68 | -54.00 | -21.21 | 77.86 | -29.63 | 129.17 | 0.5967 | -807.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -20.83 | 77.66 | -29.83 | 128.46 | 0.5961 | -713.0 | -577.2 | |
| 6.33 | -52.00 | 3.87 | -52.00 | -20.13 | 77.77 | -29.72 | 127.56 | 0.5894 | -1113.7 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.44 | -22.24 | 77.22 | -30.27 | 130.04 | 0.6117 | -531.0 | -465.5 | |
| 0.85 | -52.00 | 0.52 | -52.00 | -19.50 | 77.79 | -29.70 | 126.66 | 0.5844 | -1349.1 | 999999 | |
| 0.26 | -52.00 | 0.16 | -52.00 | -20.39 | 77.57 | -29.92 | 127.76 | 0.5936 | -779.7 | 999999 | |
| 0.00 | 8.63 | 0.00 | 5.34 | -21.06 | 77.39 | -30.10 | 128.55 | 0.6008 | -227.0 | -233.7 | |
| 13.42 | -52.00 | 8.21 | -52.00 | -19.78 | 77.55 | -29.94 | 126.88 | 0.5893 | -1176.5 | 999999 | |
| 2.14 | -52.00 | 1.30 | -52.00 | -19.37 | 77.64 | -29.85 | 126.35 | 0.5853 | -823.9 | 999999 | |
| 3.16 | -52.00 | 1.95 | -52.00 | -20.33 | 77.29 | -30.20 | 127.43 | 0.5963 | -773.1 | 999999 | |
| 2.05 | -52.00 | 1.26 | -52.00 | -19.56 | 77.42 | -30.07 | 126.44 | 0.5892 | -1050.2 | 999999 | |
| 19.41 | -52.00 | 11.94 | -52.00 | -20.07 | 77.20 | -30.29 | 126.99 | 0.5954 | -984.4 | 999999 | |
| 4.02 | 25.82 | 2.52 | 16.21 | -21.96 | 76.73 | -30.76 | 129.24 | 0.6147 | -788.2 | -254.0 | |
| 1.28 | -52.00 | 0.79 | -52.00 | -20.45 | 77.04 | -30.45 | 127.41 | 0.6000 | -624.1 | 999999 | |
| 0.85 | -68.00 | 0.53 | -68.00 | -21.67 | 76.69 | -30.80 | 128.81 | 0.6130 | -823.1 | 999999 | |
| 14.11 | -52.00 | 8.68 | -52.00 | -19.66 | 76.89 | -30.60 | 126.15 | 0.5960 | -1001.7 | 999999 | |
| 5.81 | -52.00 | 3.60 | -52.00 | -20.14 | 76.67 | -30.82 | 126.66 | 0.6018 | -845.9 | 999999 | |
| 12.14 | -52.00 | 7.56 | -52.00 | -20.81 | 76.52 | -30.97 | 127.48 | 0.6084 | -800.5 | 999999 | |
| 2.05 | -52.00 | 1.27 | -52.00 | -20.36 | 76.55 | -30.94 | 126.87 | 0.6048 | -658.0 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.81 | -21.49 | 75.84 | -31.65 | 127.87 | 0.6208 | 206.0 | 175.3 | |
| 5.73 | -52.00 | 3.57 | -52.00 | -20.30 | 76.05 | -31.44 | 126.39 | 0.6100 | -688.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
