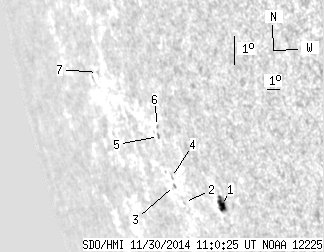

SDO HMI 2014-11-30 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.04 | 15.57 | 6.17 | 20.17 | -15.80 | 41.19 | -66.30 | 107.58 | 0.9253 | 339.6 | 269.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.04 | 10.09 | 6.17 | 12.32 | -16.47 | 42.77 | -64.72 | 108.51 | 0.9162 | 507.9 | 359.8 | |
| 0.00 | 0.26 | 0.00 | 0.35 | -16.42 | 39.95 | -67.54 | 108.05 | 0.9339 | 151.0 | 178.3 | |
| 0.00 | 1.37 | 0.00 | 1.90 | -15.90 | 39.50 | -67.99 | 107.44 | 0.9362 | 223.0 | 230.9 | |
| 0.00 | 1.03 | 0.00 | 1.43 | -15.66 | 39.42 | -68.07 | 107.17 | 0.9364 | 204.0 | 253.8 | |
| 0.00 | 1.20 | 0.00 | 1.68 | -14.40 | 39.20 | -68.29 | 105.80 | 0.9368 | 313.0 | 252.2 | |
| 0.00 | 0.94 | 0.00 | 1.31 | -14.09 | 39.31 | -68.18 | 105.49 | 0.9359 | 333.0 | 369.4 | |
| 0.00 | 0.68 | 0.00 | 1.18 | -12.52 | 34.86 | -72.63 | 103.38 | 0.9590 | -225.0 | -182.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
