SDO HMI 2014-11-30 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.94 | 0.00 | 4.15 | 13.80 | 119.32 | 12.92 | 315.84 | 0.3160 | -860.7 | -716.4 | |
|
previous
or next observation for the same group /

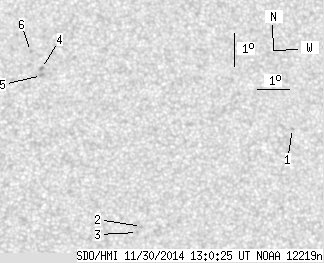

back to the solar disc SDO HMI 2014-11-30 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.50 | 13.33 | 125.55 | 19.16 | 303.96 | 0.3866 | -764.0 | -609.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 10.41 | 120.60 | 14.20 | 304.30 | 0.2934 | -762.0 | -620.8 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 10.23 | 120.46 | 14.07 | 304.02 | 0.2899 | -872.0 | -705.7 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 15.20 | 117.74 | 11.34 | 322.36 | 0.3122 | -1012.0 | -844.0 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 14.98 | 117.73 | 11.33 | 321.95 | 0.3094 | -884.0 | -739.3 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 15.72 | 117.42 | 11.03 | 324.16 | 0.3159 | -870.0 | -668.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
